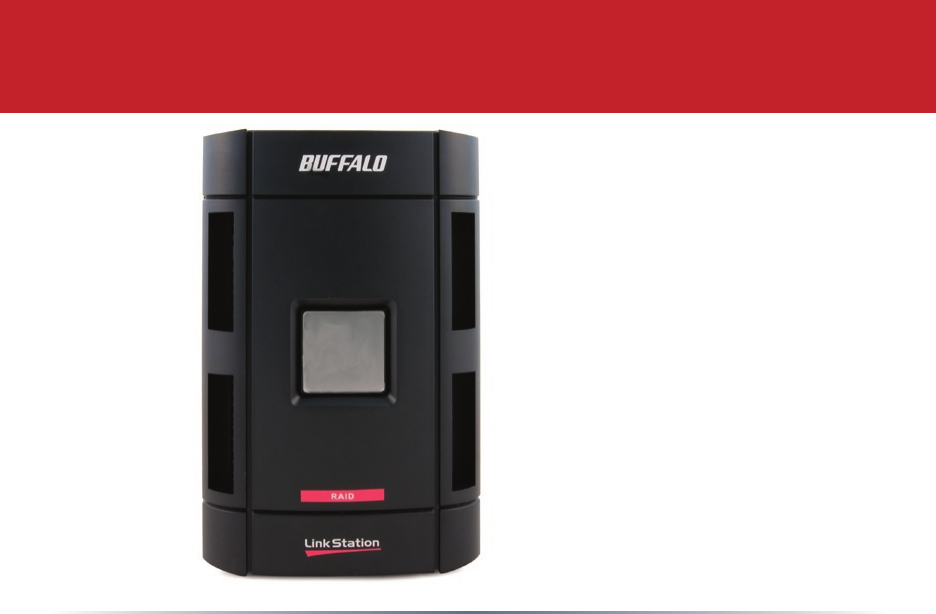

User Manual LS-WTGL/R1 LinkStation Pro Duo www.buffalotech.com v2.
Introduction Congratulations on your new LinkStation Pro Duo. This user manual is intended to assist you in configuring it. Because we’re constantly updating our products, the images and text in this manual may vary slightly from the images and text displayed by your LinkStation. These changes are minor and should not affect the ease of setup adversely. As time passes, future user interfaces, updated software, and later versions of this manual may be freely available for download at our web site www.
Table of Contents Back Panel Layout.............................................................4 Installation........................................................................5 Power Mode Switch............................................................8 Using your LinkStation with a PC ..................................... 9 Using your LinkStation with a Mac.................................. 13 Add Additional Hard Drives . ........................................... 17 Using the Function Button . .
Back Panel Layout Power Cable Function Button USB Port 1 Power Switch Ethernet Cable (to router) USB Port 2
Installation Insert the LinkNavigator CD into your computer’s CD-ROM drive. On a PC, setup should automatically launch. If it does not, manually launch setup.exe by pressing Start and selecting the Run... option. When the Run dialog opens, type d:\LSnavi.exe (where d is the drive letter of your CD-ROM drive). Press OK to continue. If you are installing the software on a Mac, open the CD and click LinkNavigator to begin installation.
LinkNavigator Setup Press the Begin Installation button to begin. If you’re installing on a PC, click on Easy Setup (the pink, upper button). Mac users can skip this step. Click Next to step through the installation.
LinkNavigator Setup The wizard will step you through installation. Follow the directions on each screen and continue pressing Next to step through the installation. When installation is complete, you may close the installation window.
Power Mode The “Power Mode” switch on the back of the unit has three positions: “Auto”, “On”, and “Off”. The “Auto” position automatically powers the unit on or off based with your PC. If your PC is turned on the LinkStation will power up; if the PC is turned off the LinkStation will power down. You must have installed the NAS Navigator software on your PC for this feature to work. Otherwise, if you move the switch to “auto”, your unit will power down by itself and you will have to manually turn it back on.
Using your LinkStation with a Windows PC Two new icons will be on your desktop: Shortcut for LinkStation and Buffalo NAS Navigator. Clicking Shortcut for LinkStation takes you directly to the folders on your LinkStation. Share is the main folder that you can put files and folders in. Info contains a copy of your user manual. The Buffalo NAS Navigator icon opens the LinkStation’s client utility. Turn to page 62 for more on using the NAS Navigator client utility.
Accessing LinkStation Data from your PC To Access LinkStation Data from a PC: Your LinkStation uses “shares” (folders) to hold data. A share called “share” is already configured on your LinkStation, and you can create additional shares in Shared Folders. To start using your LinkStation, you can either click on the Shortcut for LinkStation on your desktop, or you may just use drive L in My Computer, which setup has mapped to the default share in your LinkStation.
Accessing LinkStation Data from your PC You can map additional driveletters to shares on your LinkStation. From the Start menu, select Run.... Enter your LinkStation’s hostname (if you don’t know it, you can get it from the NASnavigator utility) or IP address. Press OK. Your LinkStation should open. “Share” is a data folder in your LinkStation by default. “Info” contains your user manuals. If you have created other folders, they will be visible here too. You can map drive letters to any of these folders.
Accessing LinkStation Data from your PC From the Tools pull-down menu, select Map Network Drive. Choose a drive letter from the Drive: pull down menu. To specify the folder to map, either find it with Browse or enter \\LinkStation_ Name\share_name in the Folder: field, where LinkStation_Name is your LinkStation’s hostname (page 21) and share_name is the name of a folder on your LinkStation. Check the Reconnect at logon checkbox to have Windows connect to this mapped drive everytime it starts.
Using your LinkStation with a Mac After installing the LinkNavigator software, your Mac will have two new icons on the desktop. The LS-ProDuoSettings.txt file contains the IP address of your LinkStation. NAS Navigator is the LinkStation’s client utility. With the information in the LS-ProDuoSettings.txt file, you can easily connect to the LinkStation from any of your computers on your local network. The NAS Navigator icon opens the LinkStation’s client utility.
Accessing LinkStation Data from a Mac You can add a link to your LinkStation’s share folder to your desktop by adding it to the Mac’s server list. Begin by clicking Go, and then choose Connect to Server. In the Server Address field, enter your LinkStation’s IP address in the form smb:// ipaddress (where “ipaddress” is your LinkStation’s IP address), and click Connect. You can get your LinkStation’s IP address from the LS-ProDuoSettings.txt file on your desktop, or see page 16.
Accessing LinkStation Data from a Mac Select Guest and click on Connect. Note: If you have configured share permissions on your LinkStation, select Registered User and enter your login credentials. Select the volume that you want to mount, such as share or share-mac, from the list of folders on the LinkStation. The share will open. A link to it will appear on your desktop.
Accessing LinkStation Data from a Mac If you don’t know your LinkStation’s IP address, there are several ways to get it. One simple method is to use the NAS Navigator client utility (included on your CD) to find your LinkStation(s). Just click on the icon for your LinkStation and you’ll be able to read its IP address. The LS-ProDuoSettings.txt file on your desktop contains the IP address of the linkstation at the time that the setup program was run.
LinkStation Expansion LinkStation Pro Duo has two USB 2.0 ports on the rear. This port can be used for adding an external USB Hard Drive or a USB Printer. LinkStation will share connected USB devices, allowing everyone on the network to use them. To connect a USB hard drive to your LinkStation, simply plug it into the USB port. Once your USB hard drive is connected, see page 28 for configuring your LinkStation to use it. To configure a USB printer, see page 43.
Using the Function Button The Function Button has several functions. You can copy digital media files directly to the LinkStation Mini from a USB storage device, such as a digital camera, USB flash drive, or external hard disk. Function Button 1. Connect your USB device to one of the USB ports on the LinkStation. The Function LED will glow solid blue for 60 seconds. 2. While the Function LED is still glowing blue, press the function button.
Using the Function Button Initialization - You can easily bring your LinkStation back to factory settings with the following steps. Function Button Power Switch 1. Move the power switch to the ‘Off’ position. The LinkStation will shut down after about 90 seconds. 2. While holding down the function button, move the power switch to the ‘On’ postion. The function LED on the front of the LinkStation will begin to flash blue. 3.
Advanced Settings The Configuration GUI The Configuration GUI may be accessed at any time by typing the IP address of your LinkStation into the URL bar of a browser running on a computer connected to the same network as the LinkStation. You may also open the Configuration GUI from NAS Navigator by right-clicking on your LinkStation and choosing Open Web Admin.
Advanced Settings This login prompt will appear. Enter admin for the user name. Until you change it, the password for the admin account will be password. Press the OK button when finished. User name: admin Password: password See page 38 to change your password.
Advanced Settings - Home Welcome to Advanced Settings, the configuration GUI for the LinkStation! Bookmark this page in your browser so it can be easily accessed for future configuration changes. If the LinkStation’s IP Address changes, you will need to recreate the link. You can also get here by typing http:// LinkStation_Name into a Web browser, where LinkStation_Name is the name (hostname) of your LinkStation. You are now at Home. Notice that the Home button is lit up in yellow.
Advanced Settings Basic You may modify your LinkStation’s hostname and description under Hostname Setup. A friendly, easy-to-remember name (e.g. “LinkStation”) is recommended. Make sure that the date and time are correct in Date and Time Setup. To synchronize time settings with those in your computer, press Use Local Time. To have your system time automatically set by an NTP server, enable NTP Server and enter an IP Address for an NTP server (e.g. 192.43.244.18) or use the supplied default NTP server.
Advanced Settings Network (IP Address Properties) In most networks, LinkStation will get its IP Address automatically from a DHCP server. You may disable DHCP here. If DHCP is disabled and an IP Address is not set manually, it will default to 192.168.xxx.xxx with subnet mask 255.255.0.0. The LinkStation’s IP Address, Subnet Mask, Default Gateway Address, and DNS Server address may all be entered manually under IP Address Properties. Ethernet Frame Size may also be set manually on this page.
Advanced Settings Network (Workgroup/Domain) If you are unfamiliar with Domain/Active Directory networking, then please leave the Network Type selected as Workgroup and Workgroup Name set to Workgroup. To make your LinkStation a member of a workgroup or an NT domain, enter the appropriate information into the fields on this page and click Apply. If using NT Domain or Active Directory, LinkStation must be added as a member computer in the Domain Server.
Advanced Settings Disk Management (Drive Properties) This page shows the properties for the drives in your LinkStation Pro Duo. If you have a USB hard drive plugged into the linkstation, its properties will appear here as well.
Advanced Settings Disk Management (RAID Setup) Configure your RAID settings here. To change the type of RAID array used, click on “RAID Array 1” under RAID Setup.
Advanced Settings Disk Management (USB hard drives) From here you can see your USB hard drive’s system information. If the hard drives’ information isn’t displayed properly, try restarting your USB hard drives and then restarting your LinkStation. Some USB hard drives must be reformatted from within LinkStation before they can be assigned shares. Select Disk Format from the left-side menu to format your USB hard disk(s).
Advanced Settings Disk Management (Disk Check) Disk Check checks any of your hard drives for errors. To use Disk Check, select the disk that you want to check from the target pulldown and click Select Target. Then click on Start Disk Check.
Advanced Settings Disk Format To format a hard drive or array, select it from the Target Disk drop box. Choose the file system desired from the File System dropbox (internal drives can only be formatted with XFS). Note that FAT32 has a 4 gigabyte filesize limit for individual files. If you choose FAT32 for your file system, you will not be able to store single files larger than 4 gigabytes on the drive. Use of the XFS or EXT3 file systems is recommended.
Advanced Settings Disk Erase To remove all data from a Disk, use Disk Erase. Once erased, this data cannot be restored.
Advanced Settings Shared Folders To add new shares on your LinkStation, select Shared Folders from the left side menu, and then click the Add button under Shared Folders Setup. To delete a share or shares, check the checkbox next to the shares you’d like to delete, and press the Delete button. Deleting shares will remove the share and erase all of the files and folders inside that share.
Advanced Settings Adding a new Shared Folder To add a new shared folder, enter a name for it in the Shared Folder Name box and choose which Disk Space it will reside in. You may also choose which operating systems and features the share will support by putting the appropriate checks next to Shared Folder Support, and whether the share supports the Recycle Bin by putting a selecting Enable or Disable. Enter a Shared Folder Description and a Remote Backup Password if desired.
Advanced Settings Shared Folders (Access restrictions) To use Access Restrictions for a share, select Enable. Highlight groups or users in the All Groups/ Users column and use the left-pointing arrow buttons (located just to the left of each box) to move individual groups or users from the All Groups/Users column to the Read Only box (if you want to give them read access only) or all the way to the Writable box, if you want to give them full access to the share.
Advanced Settings Shared Folders (Service Setup) To allow FTP Access to your LinkStation, choose Enable for FTP Server. To enable legacy AppleTalk support, choose Enable for AppleTalk Protocol. FTP Server Info: Enabling the FTP Server will allow users to connect to shares via FTP protocol. Their username and password is used for their login credentials, and they will only have access to shares that have read-only or writeable access to on the LinkStation.
Advanced Settings Group Management Groups allow for easier management of permissions in some networks, specifically networks with a lot of users in different departments. To Delete a group, put a check next to its name and click Delete. To add a group to your LinkStation, click Add. Add a name and a description to the Add New Group fields. Put checks next to each Member User that you want to be part of the group. Click Apply when your group is set up the way you want it.
Advanced Settings User Management LinkStation is preconfigured with two users, admin and guest, out of the box. The admin and guest user accounts cannot be deleted. To delete any other user, put a check next to their name and click Delete. To add a new user, click Add. The Add New User dialog will appear. Enter a User Name, Password, and User Description for the new user and click the Apply button.
Advanced Settings User Management (changing passwords) To change an account’s password, click on the name of the account under User Settings. Note: if a user name and password are used to log into a user’s windows computer or domain, the same user name and password should be used when creating the user’s account on the LinkStation, or problems accessing shared folders may occur. Enter the desired new password in both boxes and click Apply.
WebAccess With Buffalo’s WebAccess, you can access your LinkStation from anywhere in the world with an Internet connection. It’s easy to access your files, or share them with other people, wherever they may be. WebAccess is set up from within the Configuration GUI. First, select ‘Web Access’, and then ‘Service Setup’ from the menu on the left. To use Webaccess, set ‘Web Access Service’ to Enable. You may enable SSL Encryption if desired. Using ‘BuffaloNAS.com’ is recommended.
Configuring WebAccess Select ‘Folders Setup’ in the left-side menu. Any shares on your LinkStation will appear on the list to the right. Click on the icon beside it to select a share for web access. Choose your desired level of Web Access from the ‘Web Access Settings’ dropbox: ‘Disable’ will prevent remote access to this share through WebAccess. This is the default setting. ‘Allow Anonymous’ will allow anyone to access the share.
Using WebAccess To access your LinkStation remotely, open a browser window on any computer connected to the Internet and go to buffalonas.com. In the dialog box, type the BuffaloNAS name that you set on page 37. Alternately, you can go directly to your share by typing BuffaloNAS.com/your_BuffaloNAS_name in the URL window. The folders from your LinkStation’s share will appear. Files from anonymous shares will appear to the right.
Using WebAccess To access individual folders on the right, click on their open links. Clicking on individual files will give you other options, depending on the filetype. Clicking on the Audio link at the bottom left corner of the page will give you options for playing music files, including the opportunity to launch a Flash-based music player that will stream your audio files directly through the Web interface.
Printer Installation If a USB printer is plugged into your LinkStation, you can easily add the printer to any Windows PC on your network. Follow these steps for each PC that you want to be able to access the printer. • To begin, enable the print server in the configuration GUI for your LinkStation.
Printer Installation • Access the LinkStation by pressing Start, selecting the Run... option, and entering \\LinkStation_Name (where LinkStation_ Name is the DNS name of your LinkStation). Press the OK button when finished. • Right click on the lp icon and select Connect. • You may receive a warning about installing from a trustworthy source. If you receive this message, press Yes to continue. • You will receive a warning that the server does not have the proper drivers. Press OK to continue.
Printer Installation • The Add Printer Wizard will launch. Select the proper driver for your printer. If the specific printer is not in the list, you will be required to insert the CD that came with your printer into your PC’s CD-ROM drive and press the Have Disk button. Refer to your printer documentation for further information on installing your printer if necessary. Press OK to finish. • If lp is the only printer installed on the PC, then it will automatically be set as the default printer.
Printer Installation • To print a test page or configure additional printer settings, right click on the lp printer icon and select Properties. This will open the printer’s driver properties page. • Press the Print Test Page button to print a test page. You can also browse through the available settings for the printer. Please refer to the printer’s documentation for more information on changing the printer’s settings. NOTE: The printer installation process can be done on any machine on your network.
Print Server (Delete Print Queue) If a corrupt print job is sent to a printer, printing may suddenly fail. If your print jobs seem to be locked up, clearing the print queue may resolve the issue. To delete the print queue, press the Delete button. This will clear all current print jobs. Users will have to re-send any incomplete print jobs to the printer. If there are still problems printing to the printer, then check the printer manufacturer’s documentation for troubleshooting information.
Accessing Multiple Shares from a single PC When accessing multiple shares to a Windows PC, you may see this error message. This is caused by having multiple shares to the same resource using different login credentials. The error occurs when connecting to at least one secure, restricted share. Due to a constraint in Microsoft Windows, only one set of login credentials can access or map drive letters for a network resource such as the LinkStation.
Advanced Settings Mapping Multiple Shares When mapping any share, select the Connect using a different user name option. A login and password prompt will appear. Use the username and password required by any secure, restricted shares for all shares. All mapped shares on a single PC must use the same username and password! If only unrestricted shares are being mapped, then it’s not necessary to set a username and password for shares.
Advanced Settings Disk Backup To create a backup job, click on a job number. The Edit Backup Job dialog will appear.
Advanced Settings Disk Backup (Edit Backup Job) A Backup Job can run regularly on a daily or weekly schedule, or immediately by appropriate choices in the Backup Job Schedule field. Date and Time for the backup may be entered, and Encryption and Compression enabled or disabled. Enable Overwrite Backup to have each scheduled backup write over the previous backup, or Differential Backups to backup only files changed since the previous backup.
Advanced Settings Disk Backup (LinkStation List) The LinkStation list shows other LinkStations in your network that you can configure network backups to. Press Refresh to get a list of LinkStations on your network.
Advanced Settings Disk Backup (Add LinkStation) To add a remote LinkStation to your network, enter its numerical IP Address in the Remote LinkStation IP Address field and click the Add to List button. For remote LinkStation backups, make sure both firewalls are configured to allow traffic in and out of their networks. Note: Disk Backups between two LinkStations use port 8873 for encrypted backups and port 873 for backups with no encryption.
Advanced Settings Maintenance (Notification) If your LinkStation is remotely managed, you may choose to receive nightly status reports and be notified of any disk events by email. To set this up, enable Mail Notification and enter the IP Address of your SMTP server* in the SMTP Server Address field. Select a Subject line for the emails (i.e. “LinkStation Status Report”) and enter the email address of each person you want to receive notification emails into a Recipient Mail Address field.
Advanced Settings Maintenance (UPS Settings) If using an Uninteruptable Power Supply, configure the LinkStation’s UPS settings here.
Advanced Settings Maintenance (Alert Settings) Alerts can be configured on the LinkStation to make audible noises when a problem is detected. Along with the audible noise, alert emails will be sent out if Mail Notification was properly configured. Please select the features you would like to receive an audible sound alert from and then press the Apply button.
Advanced Settings Maintenance (Shutdown) From the Shutdown page, press Apply to shutdown LinkStation. This has the same function as holding down the power button on the front of LinkStation, but may be done remotely. Turning on the LinkStation after a shutdown requires a physical button push on the front of LinkStation. The Restart Now button simply reboots the LinkStation, bringing it back to functionality after about 120 seconds.
Advanced Settings Maintenance (Initialization) Initialization is a reset procedure that restores all settings back to the default, out of box, configuration. All configuration, users, groups, and backup jobs are lost, but actual data and shares on the hard are NOT lost. If you want all data to be erased, reformat the drive.
System Status (System Information) This page shows you the System Information for your LinkStation. Firmware updates are occasionally available from www.buffalotech.com for the LinkStation Pro Duo. These must be executed from a Windows PC on the same network. Your router, switch, or hub should pass through ports 8873 and 22939 for this to work (most do).
Advanced Settings System Status (USB Details) This page shows you details on USB hard drives and UPSs plugged into your LinkStation. In this example, no USB hard drives are plugged in to the LinkStation.
Advanced Settings System Status (Drive Properties) This page shows you the properties of all hard drives in and attached to your LinkStation.
Advanced Settings System Status (Network Information) This page shows you the System Information for your network connection.
Advanced Settings System Status (Logs) Choose a Log from the dropdown menu and click View to see it.
LinkStation Client Utility This is the Buffalo NAS Client Utility. Installed on your PC, it allows you to access each of the LinkStations (and TeraStations) on your network. Click View to get icons for each of your LinkStations. Highlight each tab to show the Host Name, Workgroup, IP Address, and Subnet Mask, Gateway, and MAC Address of the associated LinkStation, as well as the firmware version it’s running. Right-click on a LinkStation for more options.
LinkStation Client Utility IP Address Setup From the IP Settings tab, you may enter your IP Address and Subnet Mask manually, or enable your LinkStation to acquire them automatically from a DHCP server. Press OK when you’re done.
Troubleshooting Disk Errors If LinkStation encounters a disk error, it will be reported in the LinkStation status on the top of any of the Web-Based configuration screens. Run a Disk Scan in the event of this error. If that doesn’t work, try a reformat. Reformatting the drive will delete all of the data on it so try to backup any data you can before beginning. Finally, if none of the above solutions help, then please contact Technical Support for further assistance.
Technical Specifications Data Transfer Rates: 10/100/1000 Mbps Hard Drives: (2) SATA 7200 rpm Main Connector Type: RJ-45 (Ethernet) USB Interface: USB 2.0/1.1 Protocol Support: TCP/IP SMB, FTP (File Sharing) HTTP (Management) NTP (Time Synchronization) Power Supply: Internal; 100-240V 50/60Hz Client OS Support: Windows® Vista™, XP, 2000, Mac OS® 10.3.9 or later Power Consumption: ~21W (with no USB devices connected) Dimensions: 3.9” x 6.4” x 8.
