FUNCTION INDICATORS
LED # LED Color Function/Description
1 Red - On Indicates that the bath temperature is above 34˚ F.
The compressor is in a 6 minute delay period when slowly flashing.
When the bath thermistor circuit is open, the LED’s (1 & 2) will flash
one time every three seconds. The compressor will not run under
this condition.
Red - Flashing1
Red - Flashing2
When the bath thermistor circuit is shorted, the LED’s (1 & 2) will
flash two times every three seconds. The compressor will not run
under this condition.
Red - Flashing2
Indicates the bath temperature is below 34˚ F.
Green - On2
Indicates the compressor should be ON.
Green - On3

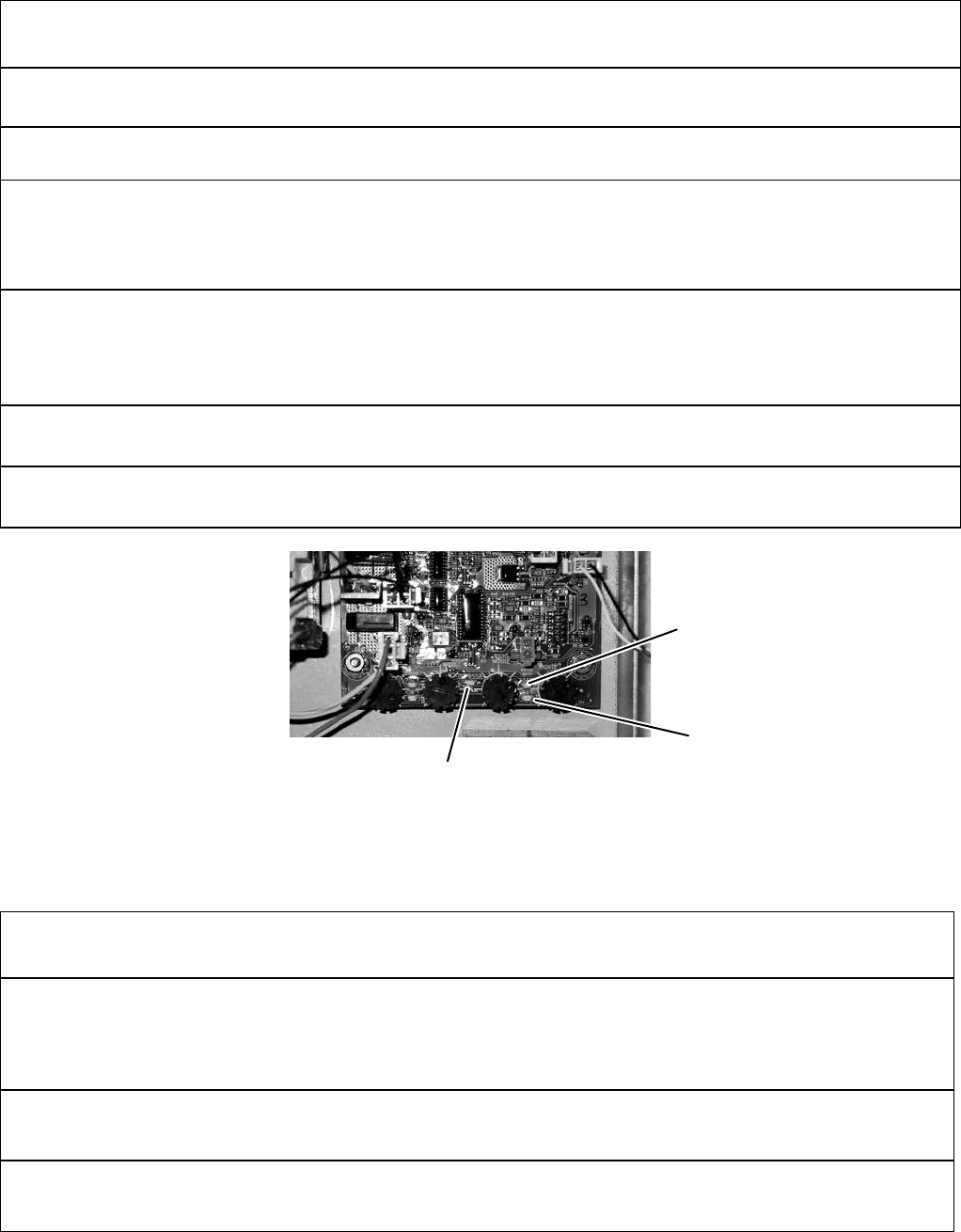

Circuit Board LED Indicators
Function/Description
Blue - Flashing The dispense Blue LED will flashing three times every three seconds,
Indicates a bath fill error. The error occurs when the water bath fill
does not fill within four minutes.
Dispense LED Indicator
Blue - Flashing A slowly flashing dispense Blue LED indicates a water filter cartridge
warning. This means it is nearly time to replace the water cartridge.
Blue - Flashing A rapidly flashing dispense Blue LED indicates the water filter
cartridge must be replaced.
52373.0 080216
1
2
3
