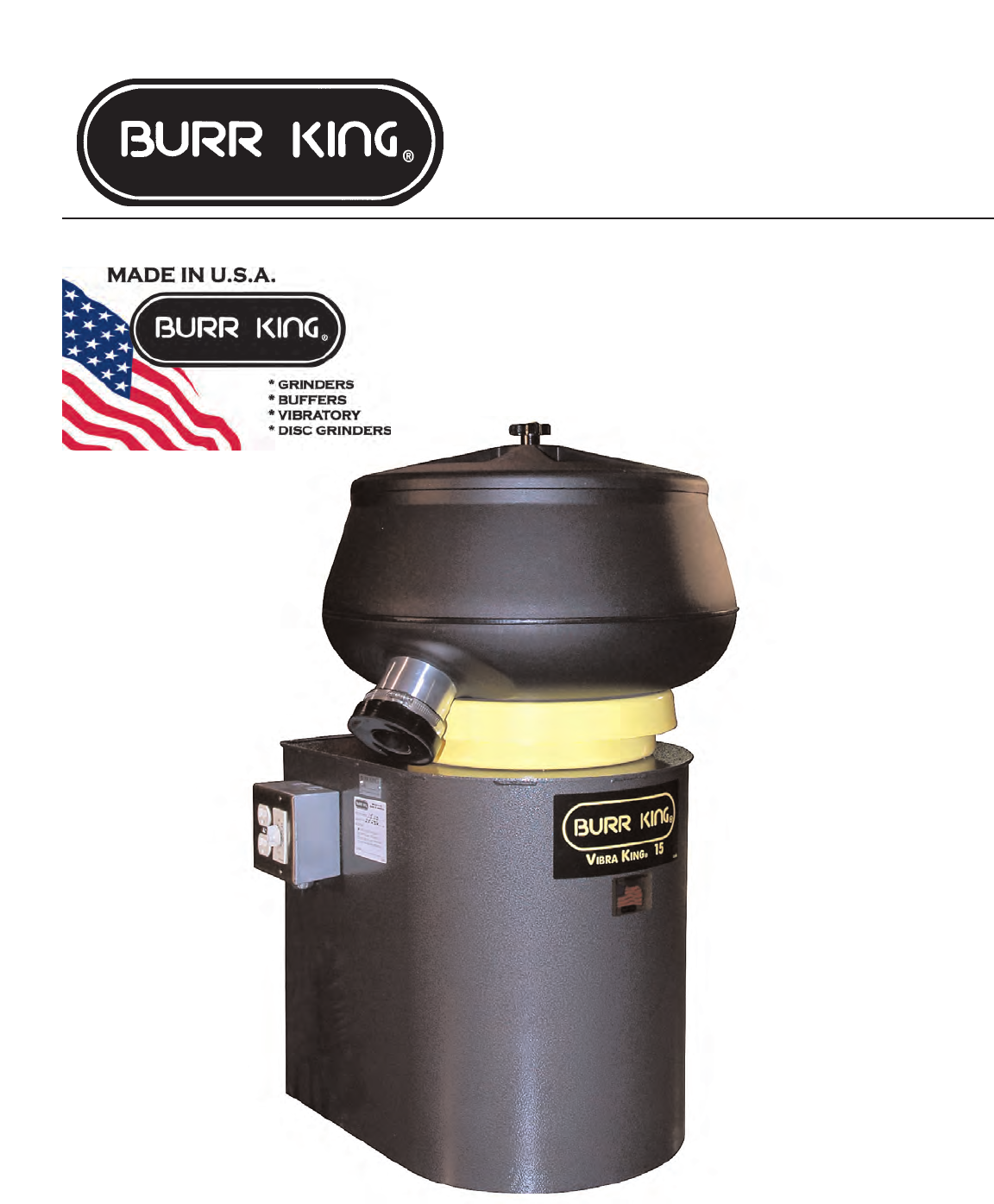

BURR KING MFG. CO., INC. 122 0 TAMARA LANE WARSAW MO 6 5355 WWW.BURRKING.COM (660) 438-8998 (800) 621-2748 FAX (660) 438-8991 December 2009 Operating instructions for Model 15 VibraKING ® The VibraKING 15 vibratory bowls are stand mounted vibratory processing machines. The bowls are compatible with ceramic, plastic, shell, cob, and most other media types. The bowls include a port for fluid induction, and a port for fluid draining.
• • If you intend to use dry media such as walnut shell, or corncob the bowl ports should be left plugged. If you intend to use manually induced fluids, the bowl ports should remain plugged. • If you intend to use a re-circulating fluid system (such as the FilterPAK® 4001 filtration system) connect the fluid input through an appropriate metering valve to the port on the upper rim of the bowl. Connect the drain line from the lower port on the bowl to the drain input on the recirculating device (i.e.
• Important! Belt tension should be approximately 1”2” of deflection at 2-3 lbs of force. Over tightening of belt will void warranty and will cause damage to your machine. 100% Drive or Excessive belt tension will void factory warranty Counter weight adjustment. If the media and part rotation is insufficient (or to aggressive) do the following: • Disconnect the AC electrical power. • Remove back panel of the base of the M15 by using a 5/32 allen and removing the 4 bolts.
Tips for optimizing your vibratory process results It is impossible to anticipate all possible combinations of materials, shapes, media, and compounds that customers may use in this equipment. It is therefore, not possible to provide specific directions for media selection, compounds, process times, etc. There are, however, general guidelines that will help to target the optimum process. These include: • Use the proper media to reach the result you expect.
• Do not allow your parts to rest in the bowl for extended periods. Doing so may result in stained, oxidized, or etched parts. • If your process uses ceramic or plastic media, clean and dry your parts immediately after withdrawing them from the vibratory bowl. With dry media such as shell or cob cleaning may not be necessary.
to retard oxide formation. The following is a partial list of guidelines: 1. When processing aluminum or other non-ferrous materials to a burr free state with matte finish select liquid soap such as BKS60 and mix it with water at a concentration of 1 to 3 ounces per gallon of water. Adjust the metering valve to deliver a steady trickle of fluid to the chamber. A reasonable mechanical gauge is to set the metering valve so that it is approximately at a 45-degree angle to the centerline of the valve.
Occupational Noise Exposure Burr King vibratory bowls produce levels of noise consistent with their intended purposes. The level and spectral content of noise produced is dependent on the bowl size, the degree that the bowl is maintained in proper operating condition, the abrasive/media and accessories used, the specific application, use or not of the supplied lid, and the surrounding environment.
M15 30 B BURR KING PARTS LIST 26 1220 TAMARA LANE WARSAW, MO.
M15 ITEM NO. PART NUMBER M15 DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY.
M15 BURR KING LINE DRAWING 1220 TAMARA LANE WARSAW, MO. 65355 24.00 38.00 20.
Formulations Formula Color Purpose Polish Made of high alumina and contains no abrasives. Use with burnishing compounds to burnish metals or with loose abrasives or compounds for deburring. These pins produce a high luster finish and are suitable for use in all types of finishing equipment.
Burr King Mfg., Inc. PREFORMED TUMBLING 1220 Tamara Lane AND VIBRATORY Warsaw, MO 65355 (660) 438-8998 (800) 621-2748 CERAMIC ABRASIVES Fax:(660) 438-8991 Note: Green and Grey fields are in stock. Non stock items 500lb.
Preformed Tumbling & Vibratory Ceramic Abrasives Compositions P-60 = Light cut, superior finish, leaves clean surface, good for aluminum parts. (78-80lbs.) P-40 = Good cut and wear life, excellent finish, ideal for general purpose use, economical (89 to 90 lbs. per cubic foot) P-20 = Fastest cut, for heavy deburring, matte finish. (85 to 90 lbs.
