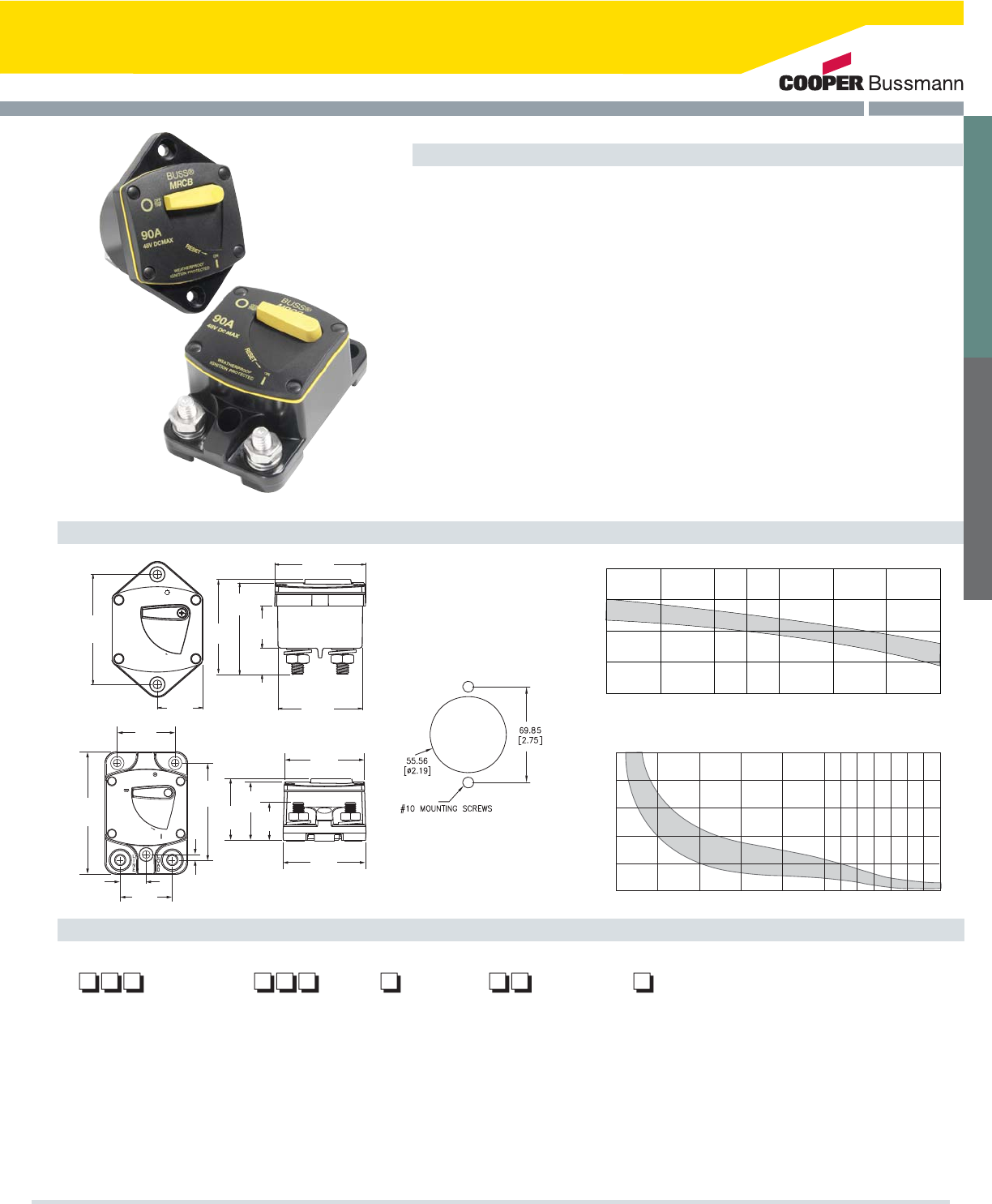

MRCB Specifications
(1.63)
Series 187 Marine Rated Circuit Breaker (MRCB)
Specifications
Single Pole Thermal Type Breakers
Applications: Typically used in DC power systems in marine applications (as a main or
branch circuit breaker), truck and bus systems, RV systems, add-on protection for
accessories, lift gates, etc. This unit is external ignition protected and weatherproof.
Rating: 25-200A, 48Vdc
Interrupt Rating: Main Breaker Protection Interrupt Rating (5,000A@ 14Vdc, 3,000A@ 28Vdc
and 1,500A@ 48Vdc).
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: Black UL-rated 94V0 thermoset plastic body. Cover and lever are UL-rated 94V0
thermoplastic
Marking: Standard marking includes amp/volt ratings. Custom markings also available
Termination: 5/16-18 threaded studs
Torque Rating: 75 in-lbs (8.5Ntm) max
Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6 Ntm) max
Ingress Protection Rating: IP66
Features / Options: A manual reset circuit breaker with On-Off switch capability
Compliances: ABYC E-11; CE; SAE J1171 (ignition protected)
Consult factory for time characteristic curves.
Manual Reset Circuit Breakers With Switch Function
Dimensions - mm(in)
Part Numbering System
(Dims. shown are for reference only. Consult factory for latest prints)
R
MRCB
BUSS
TRIP
OFF
RESET
48V DC MAX
25A
IGNITION PROTECTED
WEATHERPROOF
69.85
[2.750]
28.84
[1.135]
ON
16.76
[.660]
26.81
[1.056]
53.47
[2.105]
57.68
[2.271]
(2.24)
56.8
(2.32)
59.0
(1.06)
27.1
(1.64)
41.6
( .72)
43.8
( 2.72)
69.0
(.16)
3.9
(1.46)
37.1
(.73)
18.6
(3.44)
87.3
60.34
[2.375]
58.15
[2.289]
MRCB
25A
48V DC MAX
WEATHERPROOF
IGNITION PROTECTED
RESET
BUSS
OFF
ON
Panel Mount
Mounting Template
Firewall Mount
Series
18 7
187 – Manual Reset - Switching
Style Circuit Breaker
Rating
025 – 25 amps
030 – 30 amps
035 – 35 amps
040 – 40 amps
050 – 50 amps
060 – 60 amps
070 – 70 amps
080 – 80 amps
100 – 100 amps
110 – 110 amps
120 – 120 amps
135 – 135 amps
150 – 150 amps
200 – 200 amps
Mounting
–
F – Surface mount
P – Panel mount
Hardware
–
00 – No hardware
03 – Stainless nuts &
lockwashers - installed
on studs
04 – Stainless nuts &
lockwashers - supplied
bulk packed
Marking
1 – Standard marking; Part Number,
Amp Rating
(Consult factory for special marking options.)
0 5 10 15 20 30 40 50
100 150 200 400 600
600%
500%
400%
300%
200%
100%
Time vs Percent of Rated Current
Time in seconds
0
'
3
"
5
&
%
$
6
3
3
&
/
5
Temperature Derating Curves
Temperature in Degrees F.
0
'
3
"
5
&
%
$
6
3
3
&
/
5
-50˚ F 0˚ F 50˚ F 77˚ F 100˚ F 150˚ F 200˚ F 250˚ F
0%
50%
100%
150%
200%
Circuit Protection Series 187 MRCB
41.3
Cooper Bussmann Transportation Products t1IPOFt'BYtXXXDPPQFSCVTTNBOODPN
