Revision 1.19

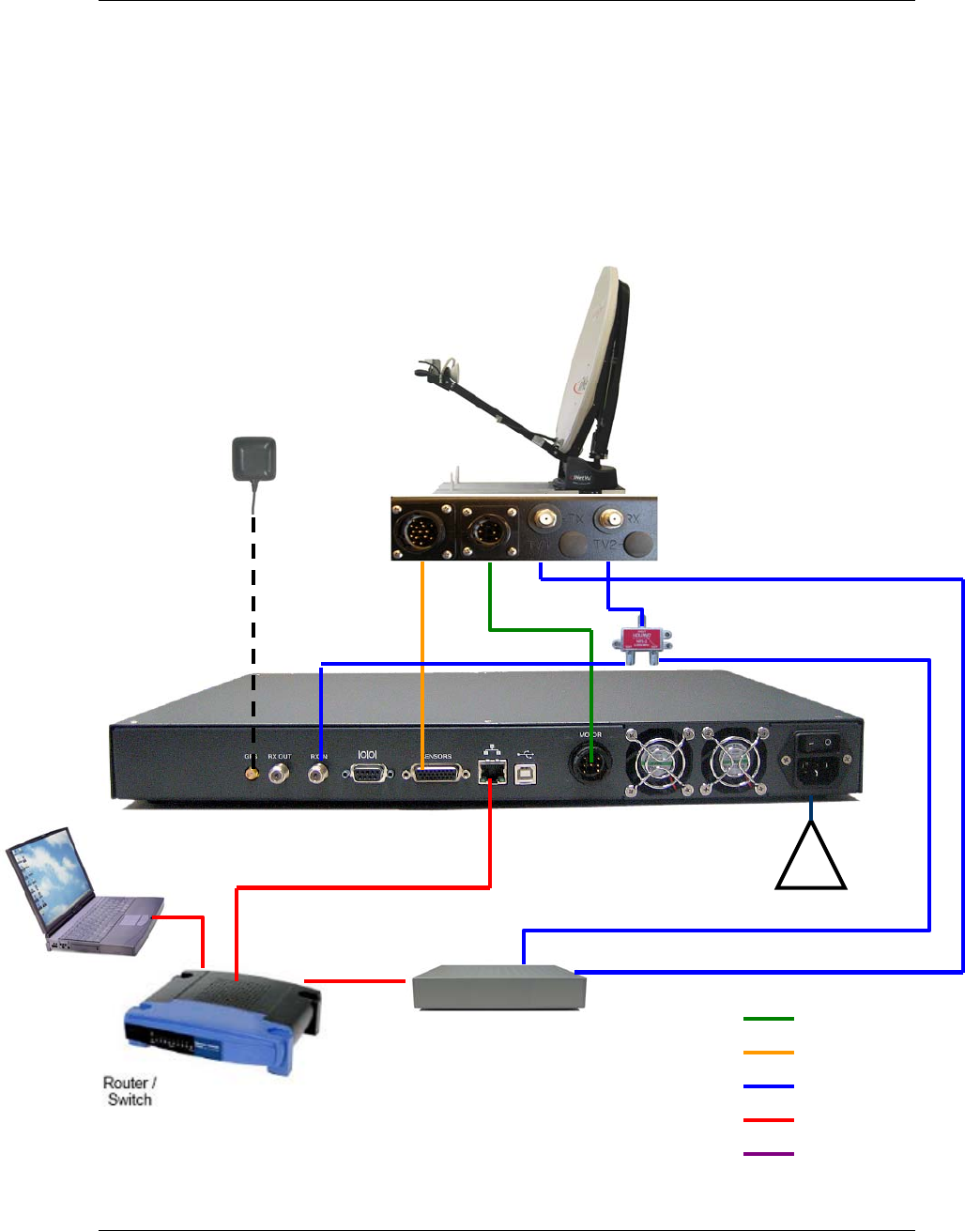

4.4. System Diagram with Splitter
*Please Note: Using a splitter is optional. If the user does not wish to power the LNB
from the Controller, a splitter must be used such that power is passed to the LNB from
the VSAT Modem (or alternate power source).
RX
GPS
Antenna
iNetVu™ Mobile
Platform
MOTOR
CONTROL
TX
Satellite Modem / VSAT
!
90 - 264VAC
TX OUT
RX
RG6 Coaxial Cable
Network Cable
Power Cable
Sensor Cable
Motor Control Cable
SENSOR
CABLE
Computer
*If the splitter option is
used, ensure the LNB
Power is disabled in the
7000 Controller. (See
section 7.2.2.1 – “LNB
Power” for more detail)
