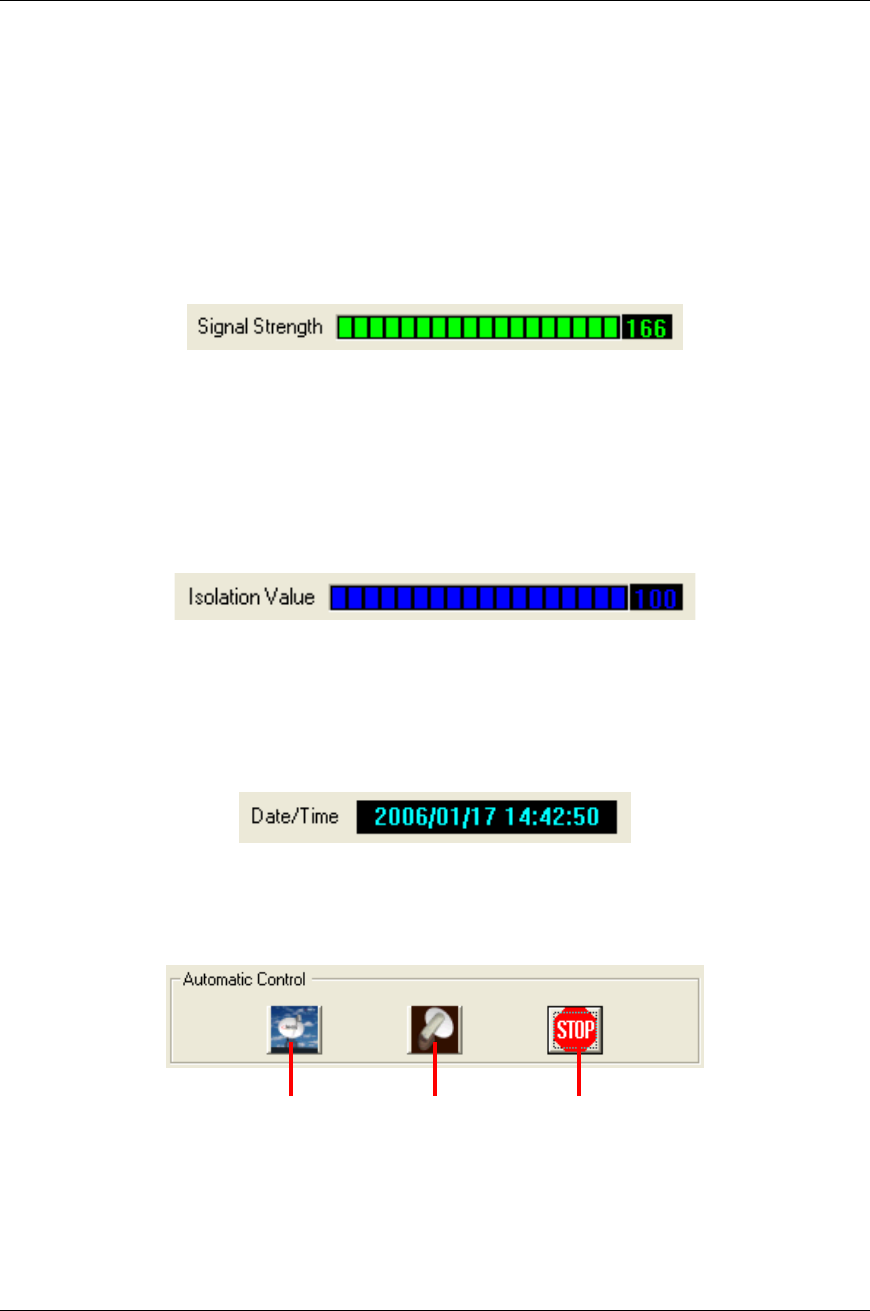

Signal Strength
A real-time Signal Quality Factor (SQF). A value obtained from the Satellite Modem
when locked onto a signal. Using a red/yellow/green color-coated system, it denotes the
strength of the received signal from the current satellite.
Should the Signal Strength be lower than 29 when locked on satellite, click Find
Satellite again to re-acquire the signal.
Fig. 49: Signal Strength Display
Isolation Value
Denotes isolation to the current satellite transponder. This value is not an indication of
signal strength when transmitting a signal.
The Isolation Value will be 100 upon receiving an Rx Lock Status.
Fig. 50: Isolation Value Display
Date/Time
Current date and time from as received from the GPS Antenna. Should the GPS
experience any problems, the alternate source is your PC internal date and time.
Fig. 51: Date/Time Display
Automatic Control
Fig. 52: Automatic Control Buttons
Find Satellite Stow Antenna Stop Operation
