Angle and Limit Switch Indicators
Displays real-time angles and Limit Switch status

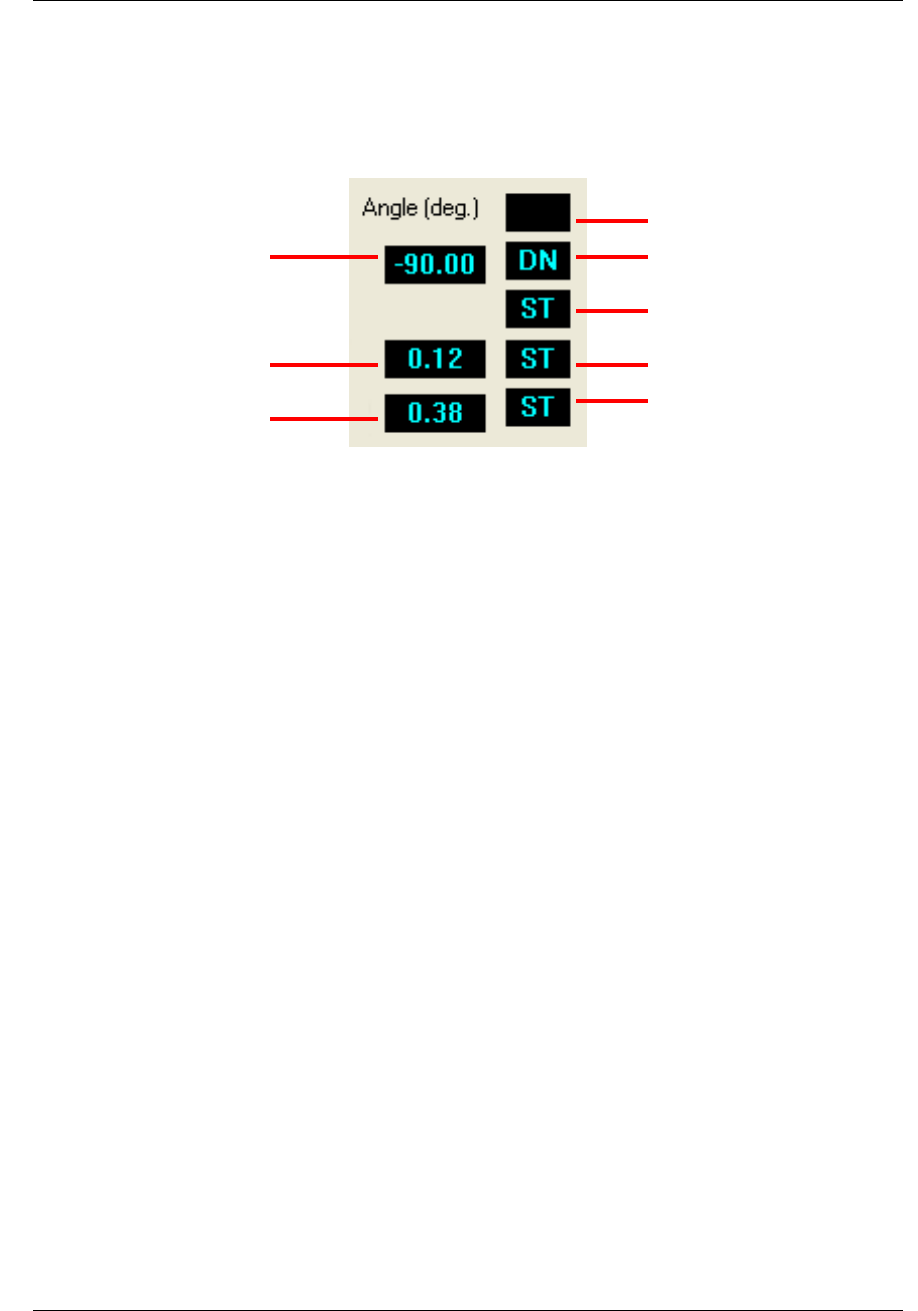

Fig. 53: Angle and Limit Switch Indicators
 When the Elevation STOW Limit Indicator is ON, the Elevation Angle will change
to “–90”, to denote that the iNetVu™ Mobile Platform is now stowed. It will remain
“-90” until the indicator turns OFF.
 For iNetVu™ 1200 Mobile Platforms, the Polarization Stow Indicator will
ALWAYS be ON.
 A YELLOW-colored “F” will appear if a Limit Switch has been disabled in the
Advanced Maintenance Menu.
 If the Polarization is disabled (for circular signal frequency bands such as Ka-
Band or X-Band), the Polarization Angle will display 0.00 and the Polarization
Stow Switch must be closed.
Elevation UP Limit Indicator
Elevation DOWN Limit Indicator
Elevation STOW Limit Indicator
Azimuth STOW Limit Indicator
Polarization STOW Limit Indicator
Elevation Angle
Azimuth Angle
Polarization Angle
