Manual Movement
Elevation Up / Elevation Down
Azimuth Left/ Azimuth Right
Polarization Counter-Clockwise / Polarization Clockwise
Using the Duration and Speed parameters, the Manual Movement Buttons allow you to
move the antenna in six (6) directions. For the correct point of reference for the
directional movements, you must be facing the Mobile Platform’s Reflector.

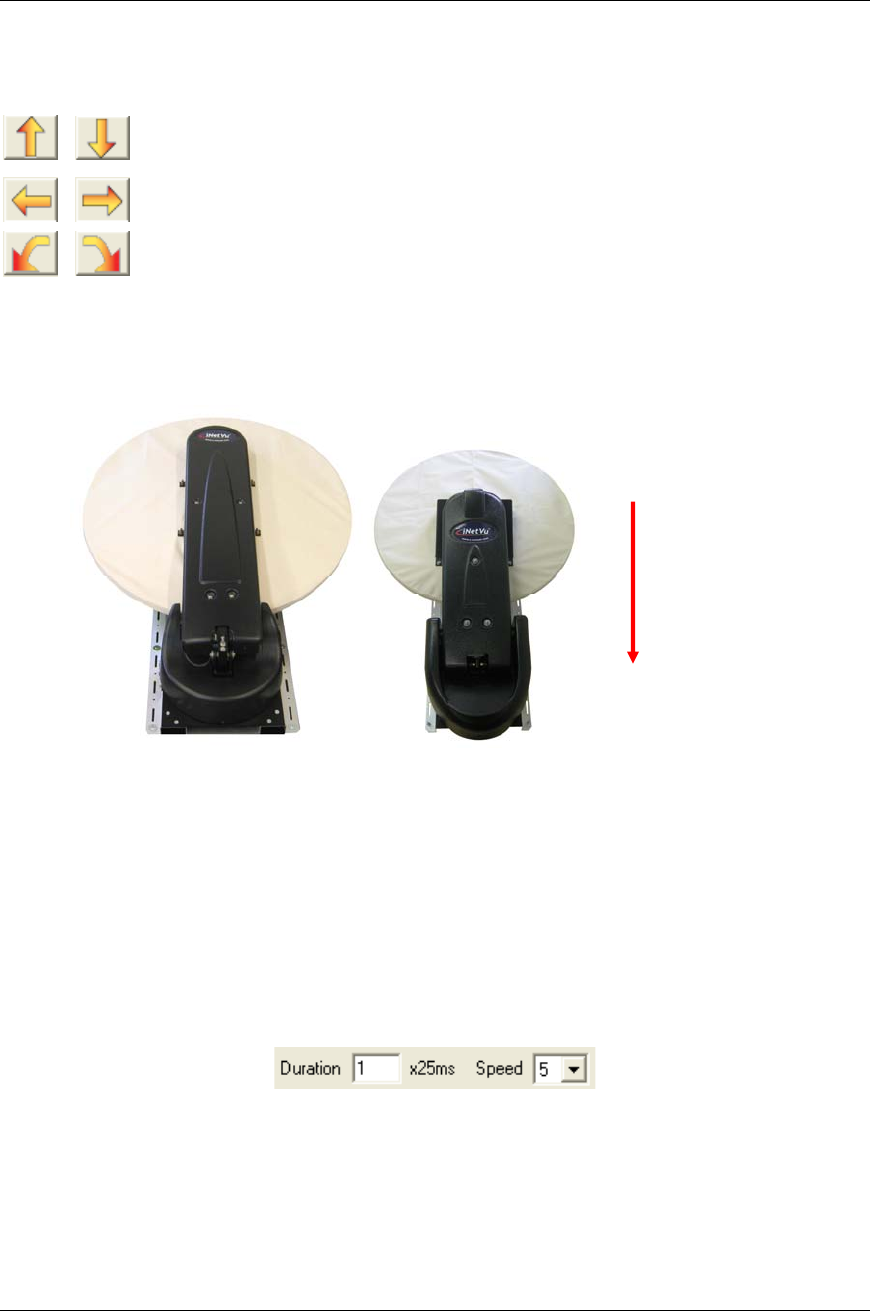

Fig. 54: Orientation Reference for Azimuth and Polarization
Duration
Length of time of Manual Movement using increments of 50ms
Speed
Motor Speed of Manual Movement
4 = Slowest, 9 = Highest
Fig. 55: Duration and Speed Input for USER Mode (Top) and CONFIG Mode (Bottom)
Face this direction for
correct Azimuth and
Polarization Orientation
