5. Antenna
6. Power jack
7. Unbalanced output
8. XLR output
Specications RXGXLD Receiver
Maximum Output Level .............................................................. +10dBV
Frequency Response .......................................................... 20Hz - 20KHz
Frequency Band ................................................................. 902 - 928MHz
Output Connectors ..............................................1x XLRM-type, 1x 1/4"
1. Power switch
2. LCD display
3. RF indicator light
4. Volume control

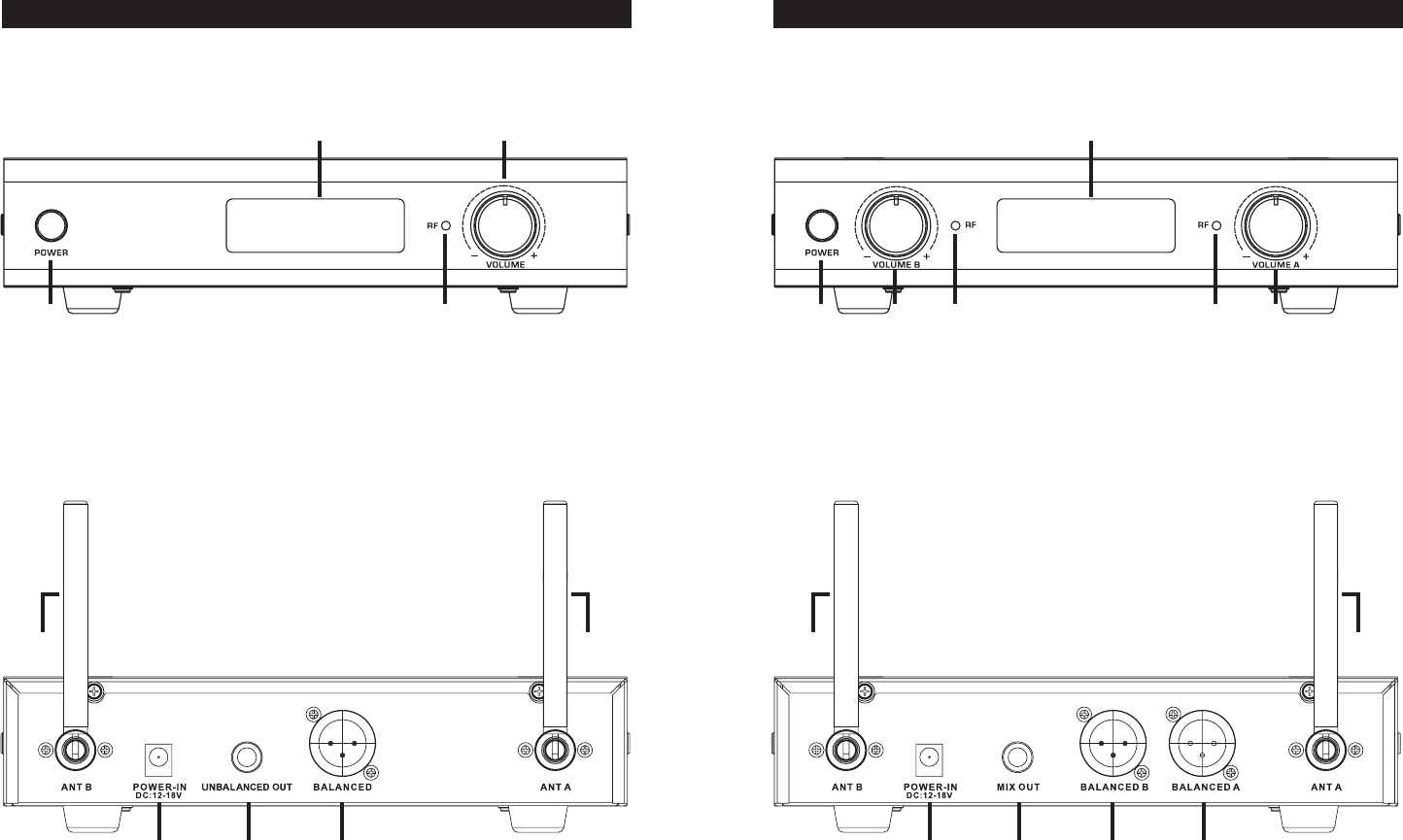

Receiver RXGXLD
1 3
42
5
5
Specications RXGXLD2 Receiver
Maximum Output Level .............................................................. +10dBV
Frequency Response .......................................................... 20Hz - 20KHz
Frequency Band ................................................................. 902 - 928MHz
Output Connectors ..............................................2x XLRM-type, 1x 1/4"
Receiver RXGXLD2
1. Power switch
2. Volume control
3. RF indicator light
4. LCD display
1 3
4
32 2
5
7 86
5
5. Antenna
6. Power jack
7. Mixed output
8. XLR output
