User Manual
3
• Insert new high quality alkaline batteries into your transmitter.
• Utilize the exible output format of the receiver to match your
application. Connect to mixer or amplier appropriately.
• Power up the receiver.
• Power up the transmitters.
• The RF indicator light will show connectivity between the
receiver and the transmitter.
POWE R
Operating Instructions
6
• Transmitter Switch
- Power on/off switch
- Mute on/off switch
• Power indicator light
• Battery life indicator light
Specications TXHGXLD Handheld
Operating Principle ................................................Moving coil dynamic
Capsule ..............................................................................CADLive
™
D38
Polar Pattern ...................................................................... Supercardioid
Frequency Response ..........................................................80Hz – 16KHz
Sensitivity ............................................................ -43dBV (6.8mV) @ 1Pa
Maximum SPL .................................................................................145dB
RF Transmitter Output .................................................................... 10mW
Modulation ................................................High Denition Digital QPSK
Power requirements ................ 2x AA alkaline or rechargeable battery
Battery Life ...............................................................>10 hours (alkaline)

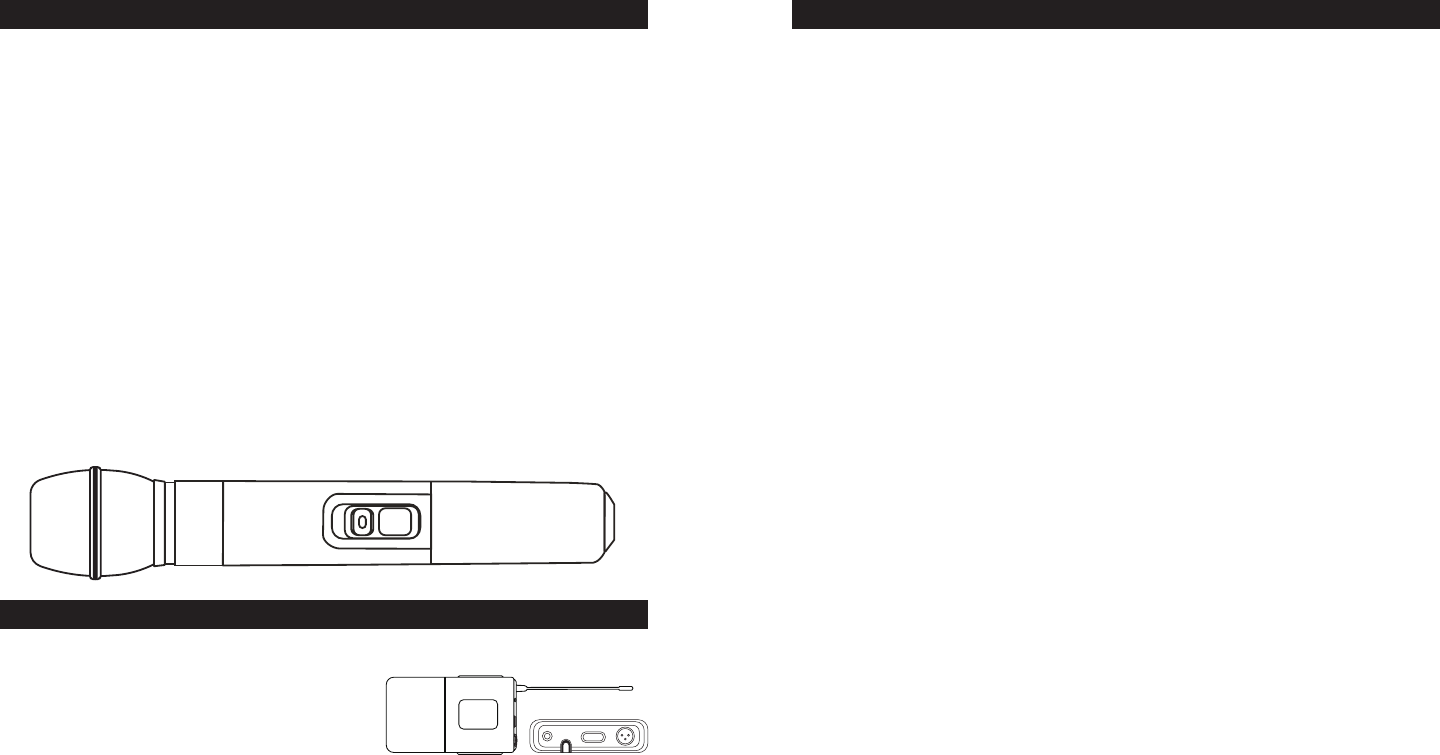

Handheld TXHGXLD Transmitter
• On/Off, mute switch
• TB4M-type connector receives
TA4F-type terminated connection
• Battery compartment
• Antenna
• LED indicator light
Specications TXBGXLD Bodypack
Frequency Response ......................................................... 20Hz – 20KHz
Maximum Input Level
Microphone Input: ............................................. 1.5Vrms (5Vpp)
Instrument Input: ............................................... 1.5Vrms (5Vpp)
RF Transmitter Output .................................................................... 10mW
Modulation ................................................High Denition Digital QPSK
Power Requirements ............... 2x AA alkaline or rechargeable battery
Battery Life ............................................................... >10 hours (alkaline)
Bodypack TXBGXLD Transmitter
