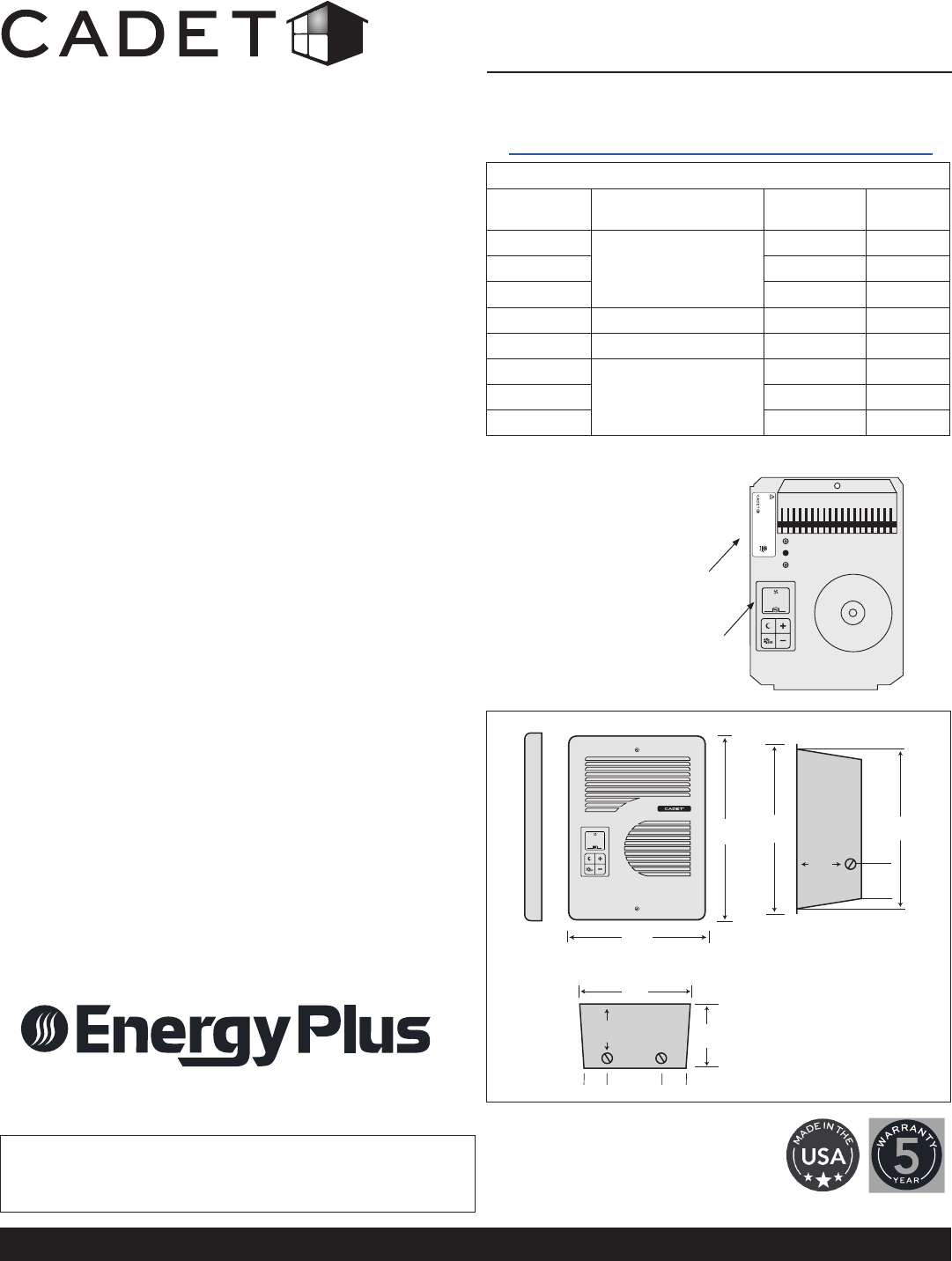

cadetheat.com Tel: 855.CADET.US PO Box 1675 Vancouver, WA 98668-1675

Benets You Can Depend On

SAVE THESE INSTRUCTIONS

Energy Plus Heater

Owner’s Guide

http://www.cadetheat.com/products/wall-heaters/energy-plus

Information is also available on our website:

1.6cm

22.9cm

Side Grill Front Wall Can Side

Wall Can Bottom

12"

30.5 cm

10"

25.4cm

28.3cm

3¼"

8.3cm

1¼"

3.2cm

1¾"

4.5cm

1¼"

3.2cm

7.6cm

10.2cm

20cm

Model:

Volts:

Watts:

WARNING! TO AVOID ELECTRICAL SHOCK

Disconnect power at circuit breaker before servicing.

Do not operate without grill.

cadetheat.com

Vancouver, WA

Mfg Date:

Before pushing

RESET button see

Owner’s Guide

for display fault

codes and other

troubleshooting

information.

3108579

conforms

to UL STD

2021

072xxx

TOOLS REQUIRED:

• Phillips Screwdriver

• Straight Screwdriver

• Wire Strippers

• Utility Knife

• (4) 1½" Wood Screws

• (2) Insulated Wire Connectors

• (1) Strain Relief Connector

• Energy efcient: use up to 30% less energy

• Brings you only the heat you need, when you need

it, and adjusts automatically to save you money

• You dene your comfort—maintains your room

temperature within one degree

• Our most thoughtful design features:

Large digital display shows your room temperature

and heating mode

Easy, intuitive one-touch controls

Night/Away and Max/Min options for extra savings

and safety

Improve air circulation and add comfort in off-sea-

son with three fan-only speeds

Easily replaces many Com-Pak Series heaters:

C, CB, CM, CS or X

• Eliminate guesswork with smart power supply

sensor that self adjusts to your voltage

• Automatic high temperature safety shutoff

• Your Energy Plus heater has been thoroughly tested

and is guaranteed with a limited 5-year warranty

Energy Plus Models

Line

Voltage

Models Watts Amps

120

CE163T

1000 8.3

208 1500 7.2

240 1600 6.7

240 only CE162T 1600 6.7

208 only CE168T 1600 7.7

120

CE083T

500 4.2

208 750 3.6

240 800 3.3

tested to UL standards

Page 1

Energy Plus Model With Built-In

Controller

Wall Thermostat Not Required

Controller with Digital Display

and Push Buttons

Rating Label

COM-PAK

Summary of content (16 pages)

PAGE 1
Energy Plus Heater Owner’s Guide Benefits You Can Depend On Information is also available on our website: http://www.cadetheat.
PAGE 2
IMPORTANT INSTRUCTIONS WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 7. WARNING Risk of Electrical Shock. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater. 8. WARNING Risk of Fire. To prevent a possible fire, do not block air intakes or exhaust in any manner. 9.
PAGE 3
Before you begin, you should know... ...about the Cadet Energy Plus heater 73 The Cadet Energy Plus Heater provides comfort to a room by using an efficient, variable speed fan to circulate the warm air, and an intelligent thermostat to deliver precise temperature control. Your heater is designed to save energy and run at a low speed once the desired room temperature is reached. This is normal operation that reduces on/off cycles and improves overall performance and comfort.
PAGE 4
INSTALLATION INSTRUCTIONS 1. WARNING Verify that the electrical supply wires are the same voltage as the heater. 2. If replacing an existing heater, check the label of the old heater for voltage and wattage information. 3. All electrical work and materials must comply with the National Electric Code (NEC), the Occupational Safety and Health Act (OSHA), and all state and local codes. 4. If you need to install a new circuit or need additional wiring information, consult a qualified electrician. 5.
PAGE 5
INSTALLATION INSTRUCTIONS (continued) __________________________ __________________________ Part Two How do I insert the heater assembly into the wall can? STEP 1 Install Heater Assembly Turn heater assembly so that the front is facing the floor (element down with motor facing up). You can then rest the bottom edge of the heater assembly on the bottom of the wall can while supporting the edge closest to you. Connect the supply wires to the heater wires with wire connectors (not included).
PAGE 6
OPERATING INSTRUCTIONS WARNING Risk of Electrical Shock and Fire. The heater must be properly installed before it is used. 1. Do not operate without grill. 2. Keep electrical cords, drapery, furnishings and other combustibles at least 3 feet (0.9 m) away from the front of the heater and 6 inches (15.2 cm) away from the sides. 3. Do not tamper with the over temperature limit control. 4. If the heater over temperature limit trips more than once per day, the heater must be replaced. 5.
PAGE 7
OPERATING INSTRUCTIONS (continued) Fault Codes Digital Display Reads Problem Solution No Display No power, internal control faulty Check that power is being supplied to heater. If operating on generator power, confirm generator setting; if display still doesn’t turn on, control is faulty. Replace heater assembly. F1 Grill is interfering with display buttons Turn power off at main disconnect panel, realign grill. Turn power back on at main disconnect panel. F4 1. Line voltage is too low 2.
PAGE 8
MAINTAINING YOUR HEATER Maintenance As Needed, or every six months minimum. WARNING! Before removing grill, turn the electrical power off at the main disconnect panel (circuit breaker or fuse box). Lock or tag the main disconnect panel door to prevent someone from accidentally turning the power on while you are working on the heater. Failure to do so could result in serious electrical shock, burns, or possible death.
PAGE 9
El Calentador Energy Plus Guía Para el Propietario También puede encontrar información en nuestro sitio web: http://www.cadetheat.com/products/wall-heaters/energy-plus Beneficios En Las Que Puede Confiar Energy Plus Modelos Voltaje Línea • Económico, consume hasta el 30% menos energía • Le entrega sólo el calor que necesita, cuando usted lo requiera, y se ajusta automáticamente para ahorrarle dinero Modelos Vatios Amps 1000 8.3 1500 7.2 1600 6.
PAGE 10
INSTRUCCIONES IMPORTANTES ADVERTENCIA Al utilizar artefactos eléctricos, siempre se deben adoptar precauciones básicas para reducir el riesgo de incendios, electrocución y lesiones personales, incluyendo lo siguiente: 7. ADVERTENCIA Riesgo de electrocución. No introduzca ni permita que ingresen objetos en las aberturas de la ventilación o escape, ya que ello puede causar electrocución o incendio, o bien dañar el calentador. 8. ADVERTENCIA Riesgo de incendio.
PAGE 11
Antes de comenzar, debe saber... ...acerca del calentador Energy Plus de Cadet El calentador Energy Plus de Cadet proporciona calor a una habitación usando un ventilador eficaz de velocidad variable para circular el aire caliente, y un termostato inteligente para lograr un control de temperatura preciso. Su calentador está diseñado para ahorrar energía y funcionar a baja velocidad una vez que ha llegado a la temperatura ambiente que desea.
PAGE 12
INSTRUCCIONES PARA LA INSTALACIÓN 1. ADVERTENCIA Verifique que todos los cables de suministro eléctrico sean del mismo voltaje que el calentador. 2. Si va a reemplazar un calentador existente, revise la etiqueta del calentador antiguo para buscar información de voltaje y vatiaje. 3.
PAGE 13
INSTRUCCIONES PARA LA INSTALACIÓN (continuación) _________________________ __________________________ Parte Dos ¿Cómo se coloca la unidad del calentador en la cámara de pared? PASO 1 Instale la unidad del calentador Gire el conjunto del calentador de modo que su parte delantera dé hacia el piso (el elemento hacia abajo con el motor dispuesto hacia arriba).
PAGE 14
OPERACIÓN DEL CALENTADOR ADVERTENCIA Riesgo de electrocución e incendio. El calentador debe instalarse correctamente antes de usarlo. 1. No lo opere sin la rejilla. 2. Mantenga los cables eléctricos, cortinas, muebles, y demás materiales combustibles a por lo menos 3 pies (.9 m) por delante y a 6 pulgadas (15.2 cm) de los costados del calentador. 3. No manipule el control limitador de sobretemperatura. 4.
PAGE 15
OPERACIÓN DEL CALENTADOR (continuación) Códigos de Falla La Pantalla Digital Indica Problema Solución Nada en pantalla No hay alimentación, falla de control interno Revise que el calentador esté recibiendo alimentación; si va a operar con la energía de un generador, confirme el ajuste del generador; si la pantalla aún no se enciende, el control está averiado. Reemplazar el conjunto del calentador.
PAGE 16
MANTENIMIENTO DEL CALENTADOR Mantenimiento Según sea necesario, o cada seis meses como mínimo. ¡ADVERTENCIA! Desconecte la electricidad en el panel de desconexión principal (caja de cortacircuitos o fusibles) y trabe o coloque un cartel en la puerta del panel de desconexión principal para evitar que alguien vuelva a conectar la energía mientras se esté trabajando en el calentador. De lo contrario podrían producirse graves golpes eléctricos, quemaduras e incluso la muerte.
