Replacement Part List

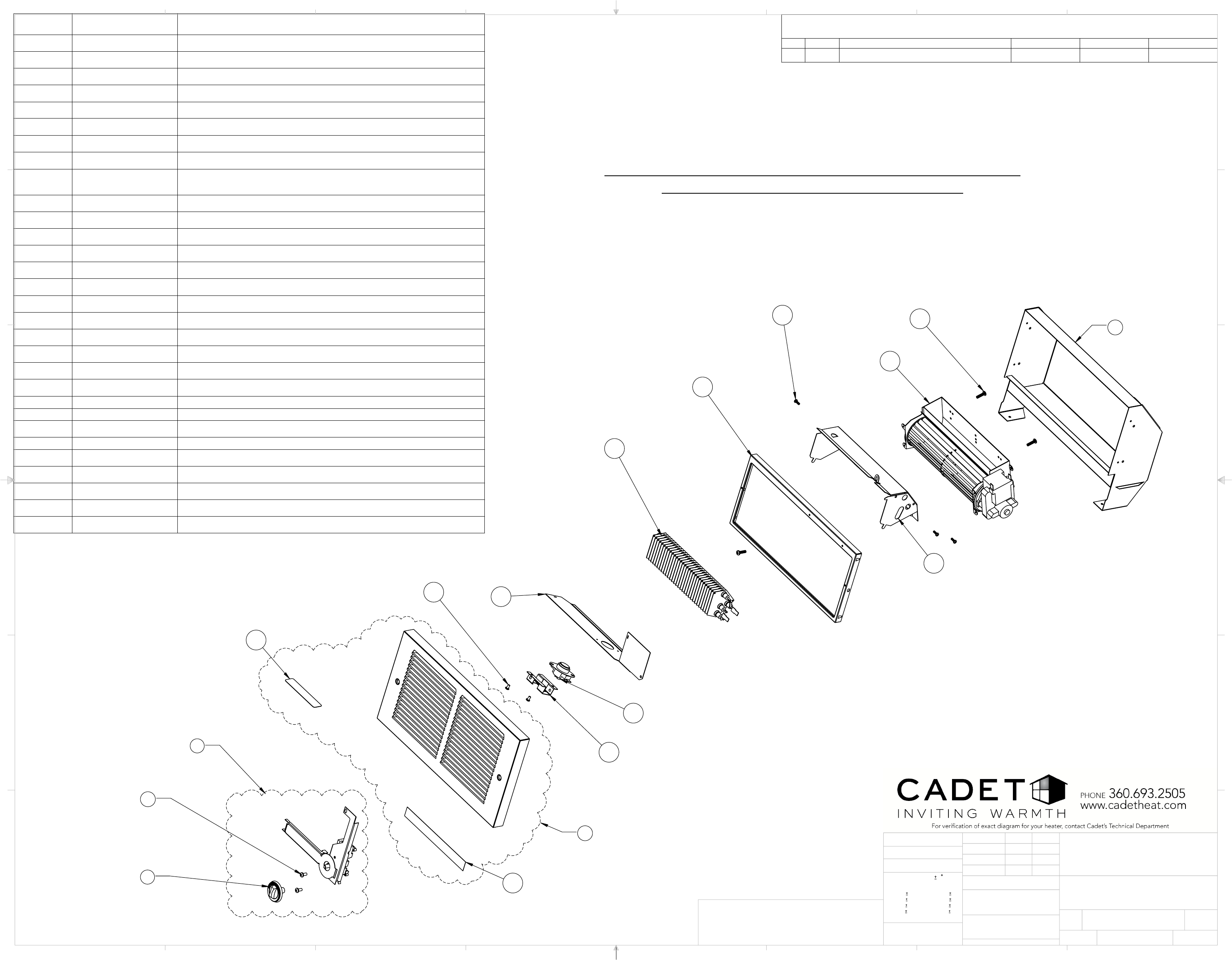

RM REGISTER PARTS & ASSEMBLY DETAIL VIEW
MANUFACTURED AFTER 08/01/2009
5
15
8
9
6
7
10
16
12
13
4
14
17
11
2
18
1
REVISIONS
ECN # REV. DESCRIPTION DATE DRAWN BY APPROVED
2429 A CREATED CD FOR EXPLODED DWG 10/02/2014 J. SEGURA G. RALSTIN
ITEM NO. PART NUMBER DESCRIPTION
1 63115 RMC WALL CAN
2 00275 RMGA RM GRILL KIT W/PARTS, WHT
00276 RMGA RM GRILL KIT W/PARTS, ALM
3 120702 PART PACKAGE, SCREWS (2) ALMOND
120704 PART PACKAGE, SCREWS (2) WHITE
4 050713 BLWR/MTR, RM151, 500-1000-1500W 120V
050711 MOTOR/BLOWER 208V (RM 108/RM 208)
050712 MOTOR/BLOWER 240V (RM 102/RM 162)
050710
MOTOR/BLOWER
240V(RM158/RM168/RM202/RM222)
5 053936 ELMT, RM151, 500-1000-1500W 120V
053935 ELMT, RM162 (700-900-1600W 240)
053953 ELMT, RM168/RM222 (2250W 240V)
053934 ELMT, RM102/RM158/RM202 (2000W 240V)
053937 ELMT, RM 108/RM 208 (2000W 208V)
6 053113 LIMIT RESET, RM, UC, 60T15 208F
7 --- COVER, LIMIT, FAB
8 --- SCREW #5 X 3/8 AB PP ST ZPL W/SERR
9 --- SCREW #8 X 5/8 PP ST ZPL SERR
10 --- SCREW #6 X 1/4A PP ST SERR ZPL
11 63123 RMT2W STAT KIT, DP WHT
63124 RMT2A RM STAT KIT, DP ALM
12 070357 LABEL, ANSI WARNING, FAN
13 070310 LABEL, CLEANING
14 040004 KNOB, C/CT/CM/UC, SP WHT
040032 KNOB, C/CT/CM/UC, SP ALM
15 --- FRAME, WALL CAN, REGISTER, FAB
16 --- HEATBOX COVER, RM, FAB
17 100734 PARTS PACKAGE, RM T2 ALM
100726 PARTS PACKAGE, RM T2 WHT
18 --- HEATBOX, RM
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
\\cmc\public\Common\Cadet Doc Sys Ctrl\900-999\
A
DO NOT SCALE DRAWING
SHEET 1 OF 1
10/01/2014
J.S.
DIMENSIONS ARE IN INCHES
DIMENSIONS IN [ ] ARE MM
SCALE: 1:4
REV
DWG. NO.
990004
C
SIZE
DESCRIPTION:
RM REGISTER PARTS & ASSEMBLY
DETAIL VIEW
NAME
DATE
ENG APP.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCE PER: ASME Y14.5M
THE DOCUMENT IS THE PROPERTY OF CADET MANUFACTURING
COMPANY AND MAY CONTAIN PROPRIETARY INFORMATION. BY
ACCEPTING THIS INFORMATION, THE BORROWER AGREES THAT
IT WILL NOT BE USED FOR ANY PURPOSE OTHER THAN FOR
WHICH IT IS LOANED. IT MAY NOT BE REPRODUCED IN ANY
MANNER AND SHOULD BE DESTROYED AFTER SERVING IT'S
INTENDED FUNCTION.
CADET
MANUFACTURING
COMPANY
VANCOUVER, WA. U.S.A
TEL. [phone]
990004.slddrw
INCHES
.x
.062
.xx
.030
.xxx
.015
.xxxx
.008
TOLERANCES UNLESS
OTHERWISE SPECIFIED
ANGULAR: 1
MM
x.
1.5
.x
.76
.xx
.38
.xxx
.20
