BC3200 Quick Guide

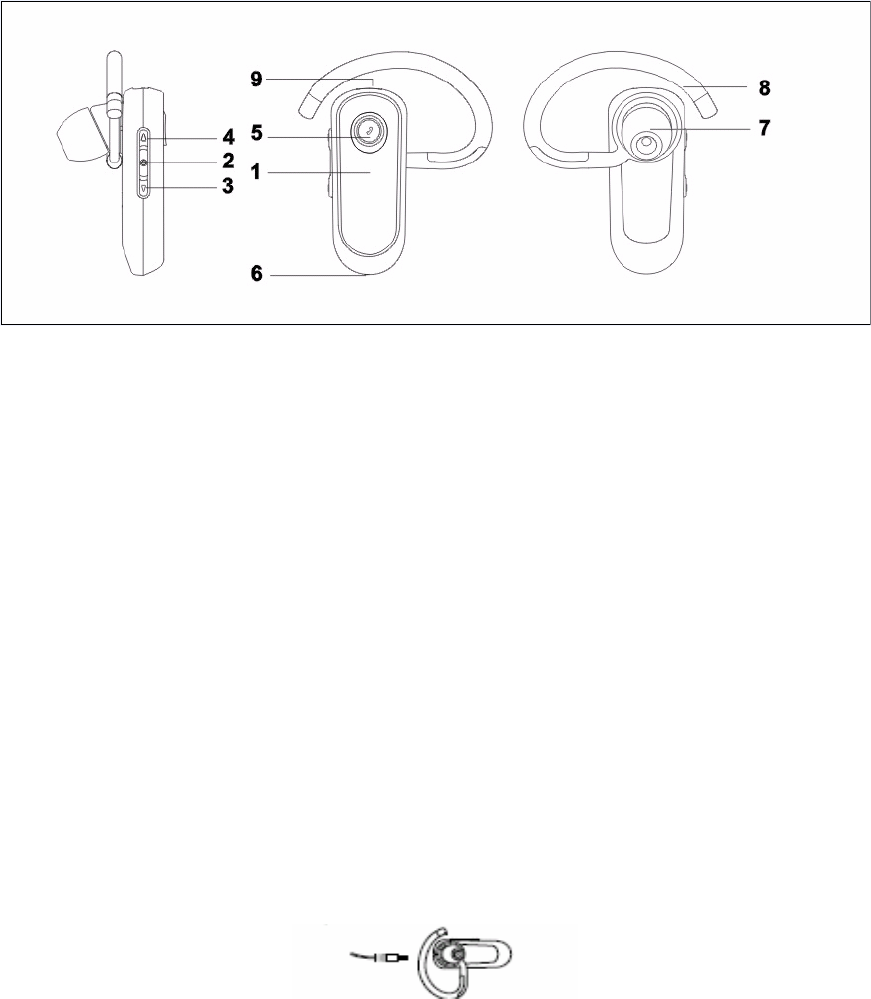

Appearance

BC3200

1. Indicator light: provide visual cues for headset status

2. Switch: turn on/turn off

3. Volume down button: decrease the speaker volume

4. Volume up button: Increase speaker volume

5. Multi-function button (MFB): control several headset functions

6. Microphone: pick up your voice input

7. Earphone: spread out voice

8. Ear-hook: attach the headset to your ear

9. Charging port: connect the plug to your battery charger

Charging

When you use the headset at the first time, please charge for 24 hours to make sure that your headset is fully charged.

Five short tones from the headset every 20 seconds means that the battery is running low, please immediately charge it

around 2.5 hours.

Notice

1. It is normal that the battery will gradually deteriorate after using the headset for a while.

2. The headset switches off when charging.

How to Charge

1. Plug the charger into the charging port. While the headset is being charged, the LED indicator light will show different

color according to battery power.

a. GreenÆ fully charged

b. BlueÆ 80% charged

c. RedÆ being charged

2. It could use Mini USB cable to be charged through USB interface or adaptor for travel use.

Battery Detect

Keep press the switch and Multi-function button when turn off the headset

Summary of content (4 pages)

PAGE 1
BC3200 Quick Guide Appearance BC3200 1. Indicator light: provide visual cues for headset status 2. Switch: turn on/turn off 3. Volume down button: decrease the speaker volume 4. Volume up button: Increase speaker volume 5. Multi-function button (MFB): control several headset functions 6. Microphone: pick up your voice input 7. Earphone: spread out voice 8. Ear-hook: attach the headset to your ear 9.
PAGE 2
a. if red indicator light flashes: power consumptionÆ please being charging ASAP b. if blue indicator light flashes slowly: 60% battery powerÆ it could be use normal c. if green indicator light bright always: fully battery power Turning On & Off the Headset Simultaneously press the switch more than 3 seconds, the indicator light will start flashing 1.2 seconds and the speaker will have audio tones for turn on.
PAGE 3
Making & Answering Calls Device Status Phone 1 Function Action Idle (Unpaired) Voice dial Last call re-dial Answer a call Reject a call Idle (Unpaired) Ringing (Shocked) Idle (Talking/Unpaired) Ringing (Shocked) Idle (Taking/Unpaired) Switch holding call ed Answer 2 Call Idle (Unpaired) Idle HF Profile Short click the MFB Idle Long press the MFB Idle Short click the MFB Idle (Busy) Long press the MFB Busy Short dick the MFB Busy Short press the switch HS Profile None None None Idle
PAGE 4
Audio Tones Headset status Power on The audio tone 2 tones from low to high Power off 2 tones from low to high Pairing success Switch to first device Switch to second device Battery low No network service Microphone muted 1 single tone 1 single tone 2 single tone 5 rapid high tones once per 20 seconds 2 rapid high tones once per 20 seconds 1 low tone once per 5 seconds Turn on the audio gateway Turn off the audio gateway 4 tones from low to high 4 tones from high to low Long press the MFB 1 single
