Parts
Use Only Genuine Graco Parts and Accessories
Model G3000
Part No. 239716
2
4
1
5
10
8
9
11
7
7381A

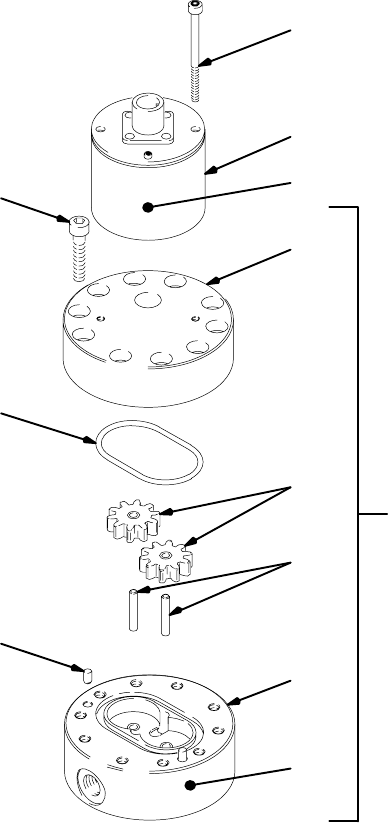

Item 3, Gear Meter Assembly,
Includes items 4–11
2a
12
Ref.
No.
Part No. Description Qty.
1 114100 SCREW, socket head; M4 x
55 mm long
2
2 239717 ELECTRONIC SENSOR;
includes item 2a
1
2a 290580  LABEL, identification 1
3 239719 GEAR METER ASSEMBLY;
includes items 4–12
1
4 110580  SCREW 10
5* HOUSING, upper 1
7 110588  O-RING; Teflon 1
Ref.
No.
Part No. Description Qty.
8 239718  GEAR 2
9 192383  SHAFT, gear 2
10 192387  PIN, locating 2
11 *  HOUSING, lower 1
12 290579 LABEL, identification 1
* Not a replacement part. Order item 3, gear meter
assembly.
