Installation Instructions

5. Connect the ground wires
(bare copper or green) from
your fixture to the ground wire
(bare copper or green) or ground
screw in the electrical box. Connect
black wire from fixture to black
wire in electrical box and connect
the white wire from fixture to
white wire in electrical box.
6. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire is visible at the wire nuts.
7. Slide the canopy up the chain
and over the upper connector.
Slide the nut up the chain and
thread onto the upper connector.
8. Install specified bulb type and
wattage (not included).
IOL304
09/16
OUTDOOR
LIGHTING
INSTALLATION:
Tel: (613) 342-5424, Fax: (800) 263-4598
Bulb

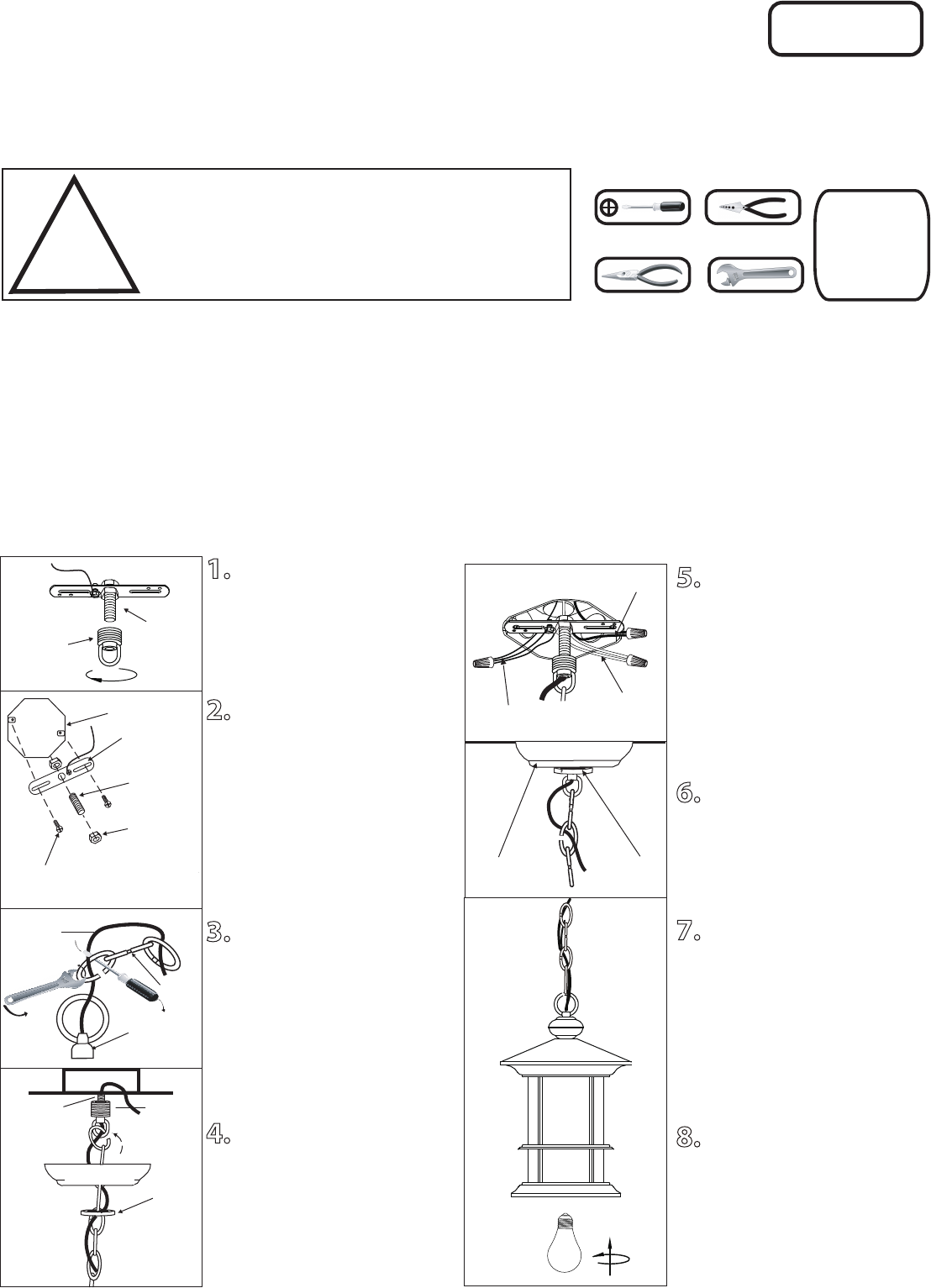

1. Determine the height that you
would like to hang your fixture.
Trim the cord and chain. Allow 10”
of extra wiring for the electrical box
connections.
2. Loosen the upper connector
from nipple. Thread nipple into
mounting bracket, adjust nipple so
it clears the canopy when installed.
Lock in place by threading hex nut
onto nipple and tighten against
mounting bracket. Attach
mounting bracket to electrical box
with electrical box screws (not
included).
3. Slide the nut and canopy over
the chain. Open the last link of the
chain furthest from the fixture and
hang the fixture on the lower
connector. Ensure the opening on
the chain is closed after connection.
Feed the cord through the chain,
nut and canopy.
4. Feed the cord through upper
connector and nipple. Tighten the
upper connector onto the nipple.
Spread the other end of the chain.
Open and connect to the upper
connector. Ensure the opening on
chain is closed after connection.
Nipple
Nipple
Hex Nut
Electrical Box
Electrical Box Screws
(not included)
Upper
Connector
Mounting
Bracket
Cord
Chain
Connector
Lower
Nipple
Upper
Connector
Nut
Canopy
Canopy
Nut
White
Ground
wire
Black
SAFETY PRECAUTIONS:
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
