- 2711P-UM001G-EN-P, PanelView Plus Terminals
- Important User Information
- Summary of Changes
- Chapter 1
- Chapter 2
- Installation
- Chapter Objectives
- Hazardous Locations
- Environment and Enclosure
- Outdoor Installation for High-bright Displays
- Required Tools
- Clearances
- Cutout Dimensions
- Mount the 400 or 600 Terminal in a Panel
- 1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
- 2. If a communication module is ordered separately, attach the module to the base unit before panel installation.
- 3. Make sure the terminal sealing gasket is properly positioned on the terminal.
- 4. Install legend strips before installing the terminal if you are using keypad legend strips on a 600 keypad terminal.
- 5. Place the terminal in the panel cutout.
- 6. Insert all mounting levers into the mounting slots on the terminal.
- 7. When all levers are in place, slide each lever an additional notch or two until you hear a click.
- 8. Rotate each lever in the direction indicated until it is in the final latch position.
- Mount the 700 to 1500 Terminal in a Panel
- 1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
- 2. Make sure the terminal sealing gasket is properly positioned on the terminal.
- 3. Install the legend strips before installing the terminal if you are using keypad legend strips on keypad terminals.
- 4. Place the terminal in the panel cutout.
- 5. Slide the ends of the mounting clips into the slots on the terminal.
- 6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting surface uniformly.
- 7. Tighten the mounting clips screws to a torque of 0.90…1.1 Nm (8…10 lb-in) by using the specified sequence, making sure not to overtighten.
- Product Dimensions
- Installation
- Chapter 3
- Power Connections
- Chapter Objectives
- Wiring and Safety Guidelines
- Remove and Install the Power Terminal Block
- 400 and 600 Terminals
- 1. Insert the tip of small, flat-blade, screwdriver into the terminal block access slot.
- 2. Gently pry the terminal block away from terminal to release the locking mechanism.
- 1. Press terminal block base in first with block leaning outward.
- 2. Gently push the top of the terminal block back to the vertical position to snap in locking tab.
- 700 to 1500 Terminals
- 400 and 600 Terminals
- DC Power Connections
- AC Power Connections
- Protective Earth Connection
- Functional Earth Connection
- Connect AC Power
- 1. Verify that the terminal is not connected to a power source.
- 2. Secure the ac power wires to the terminal block.
- 3. Secure the protective earth ground wire to the marked position of the power input terminal block.
- 4. On the 700 to 1500 devices, also secure the functional earth ground wire to the functional earth terminal screw on the back of the display to ground bus.
- 5. Apply ac power to the terminal.
- Reset the Terminals
- Power Connections
- Chapter 4
- Configuration Mode
- Chapter Objectives
- Access Configuration Mode
- Load an Application
- Run an Application
- Application Settings
- Terminal Settings
- Configure Communications
- KEPServer Serial Port ID’s
- Configure Communication Properties
- 1. Select Terminal Settings>Networks and Communications>RSLinx Enterprise Communications.
- 2. Select the communication card installed on your terminal.
- 3. Press the Edit Driver button to view the current properties for the communication driver.
- 4. Select the property you want to modify, then press the Edit button.
- 5. Modify the setting and then press the Enter button.
- Configure the Controller Address
- 1. From the RSLinx Configuration screen, select a device node.
- 2. Press the Edit Device button to view the device name and current address of the logic controller.
- 3. Press the Device Address button to modify the address.
- 4. Use the Input Panel to modify the address and then press the Enter button.
- 5. Press OK.
- Configure Network Information
- Define a Device Name for the Terminal
- Define an Ethernet IP Address
- 1. Select Terminal Settings>Network and Communications>Network Connections>Network Adapters.
- 2. Press the IP Address button to view or modify the IP address.
- 3. Press the DHCP button to enable or disable DHCP assignment of addresses.
- 4. Press the IP address, Subnet Mask, and Gateway buttons, then enter the appropriate information.
- 5. Press OK when done.
- Define Name Server Addresses
- Authorize Terminal to Access Network Resources
- Configure Diagnostics
- Manage Files on the Terminal
- Delete an Application File or a Font File
- 1. Select Terminal Settings>File Management>Delete Files>Delete Applications or Delete Fonts.
- 2. Press the Source button to choose the storage location of the application or font file you want to delete.
- 3. Select a file from the list.
- 4. Press the Delete button.
- 5. Select Yes or No when asked if you want to delete the selected application or font file from the storage location.
- Delete Log Files from Terminal
- Copy an Application File or Font File
- 1. Select Terminal Settings>File Management>Copy Files>Copy Applications or Copy Fonts.
- 2. Press the Source button to choose the location of the application or font file you want to copy.
- 3. Select a file from the storage location.
- 4. Press the Destination button on the same screen.
- 5. Press the Destination button to choose the storage location where you want to copy the application or font file.
- 6. Press the Copy button to copy the selected application or font file to the selected destination.
- 7. Select Yes or No.
- Delete an Application File or a Font File
- Modify Display Settings
- View the Display Temperature
- Adjust the Display Contrast
- Adjust the Display Intensity
- Configure the Screen Saver
- 1. Select Terminal Settings>Display>Screen Saver.
- 2. Press the Screen Saver button to select an idle timeout for activating the screen saver.
- 3. Increase or decrease the brightness intensity of the screen saver by pressing the up and down cursor buttons.
- 4. Press the Advanced Settings button to access the bitmap option.
- 5. Press OK to exit and return to the terminal settings.
- Enable or Disable the Screen Cursor
- Font Linking
- Configure Keypad, Keyboard, or Mouse
- Configure Keyboard Settings
- 1. Select Terminal Settings>Input Devices>Keyboard.
- 2. Press the Repeat Rate button to specify the number of times a key is repeated per second when you hold a key down.
- 3. Press the Repeat Delay button to select the amount of time that elapses per second before a key is repeated.
- 4. Press OK when done.
- Configure Keypad Settings for the Terminal
- Configure the Sensitivity of the Mouse
- Configure Keyboard Settings
- Configure the Touch Screen
- Configure Print Options
- Configure Startup Options
- 1. Select Terminal Settings>Startup Options>FactoryTalk View ME Station Startup.
- 2. Press the On Startup button until Do not start FactoryTalk View ME is selected.
- 3. Press OK.
- Enter Configuration Mode on Startup
- 1. Select Terminal Settings>Startup Options>FactoryTalk View ME Station Startup.
- 2. Press the On Startup button to select Go to Configuration Mode.
- 3. Press the Configuration Mode Options button.
- 4. Press the Load Current Application button to specify whether you want to load the current application on startup.
- 5. Press the Replace RSLinx Communications button to specify whether to use the communication configuration of the current application or the terminal on startup.
- 6. Press OK to return to the previous screen.
- 7. Press OK to return to Terminal Settings.
- Run the Loaded Application on Startup
- 1. Select Terminal Settings>Startup Options>FactoryTalk View ME Station Startup.
- 2. Press the On Startup button to select Run Current Application.
- 3. Press the Replace RSLinx Communications button to specify what configuration settings to use when running the application.
- 4. Press the Delete Log Files to specify what action to take with the log files on startup.
- 5. Press OK twice to return to Terminal Settings.
- Startup Shortcuts for PanelView Plus CE Devices
- Configure Startup Tests
- View and Clear the System Event Log
- Display Terminal Information
- 1. Select Terminal Settings>System>Information>Terminal Information.
- 2. Press the Memory Allocation button to view or adjust the:
- 3. Press the Up or Down button to increase or decrease the allocation of storage or program memory.
- 4. Press OK to return to previous screen.
- 5. Press OK to return to terminal settings.
- Display FactoryTalk View ME Station Information
- Modify the Date, Time, or Time Zone
- Change the Date
- Change the Time
- Change the Time Zone
- 1. Select Terminal Settings>Time/Date/Regional Settings>Time Zone.
- 2. Press the up and down cursor buttons to select a time zone.
- 3. Press the Daylight Savings button to enable or disable daylight savings for the selected time zone.
- 4. Press the Use Daylight Savings Button to select Yes or No.
- 5. Click OK when done.
- 6. Click OK to return to Terminal Settings.
- Modify Regional Settings
- Configuration Mode
- Chapter 5
- Windows CE .NET Operating System
- Chapter Objectives
- Windows CE .NET Architecture
- Windows CE .NET Programs
- Windows CE .NET Operating System
- PanelView Plus CE Memory
- Control Panel Applications
- Owner
- Password
- Dialing
- Network and Dial-up Connections
- ActiveSync Connection
- Configure Ethernet Connection
- 1. Select the Network and Dial-up Connections application.
- 2. Click the PCI-E100CE1 icon to configure Ethernet settings.
- 3. On the IP address tab, select Obtain an IP address via DHCP or Specify an IP Address
- 4. Click OK in the title bar.
- 5. For the built-in Ethernet Controller, you must restart the terminal.
- 6. Click OK to close the Network Configuration dialog.
- PC Connection
- Touch
- Keyboard
- Keypad
- Mouse
- Input Panel
- Display
- Extended Diagnostics
- Hardware Monitor
- Power
- System
- Date/Time
- Regional Settings
- Internet Options
- Certificates
- Remove Programs
- Storage Manager
- Windows CE .NET Operating System
- Chapter 6
- Install and Replace Components
- Chapter Objectives
- Required Tools
- Precautions
- Compatibility of Terminal Components
- Install RAM or Internal CompactFlash
- 1. Remove power from the terminal.
- 2. Place the terminal, display side down, on a flat stable surface.
- 3. Loosen the six captive screws that secure the logic module.
- 4. Carefully lift the logic module away from the terminal and turn over to expose the circuit board.
- 5. Locate the RAM module on the circuit board, pull the metal retaining clips away from the module, and slide out the module.
- 6. Insert the new RAM module at a 45 angle and snap down.
- 7. Unscrew and remove the retaining clip that secures the internal CompactFlash card.
- 8. Pull out the internal CompactFlash card.
- 9. Insert the new internal CompactFlash card.
- 10. Reattach the retaining clip.
- 11. Attach the logic module by aligning the two connectors on the bottom of module with the connectors on the display module.
- 12. Push down on the logic module until firmly seated.
- 13. Tighten the six captive screws that secure the logic module to a torque of 0.68 Nm (6…8 lb-in).
- Install or Replace the Logic Module
- 1. Disconnect power from the terminal.
- 2. Set the terminal, display side down, on a clean, flat, stable surface to prevent scratches, if the terminal is removed from panel.
- 3. Position the logic module over the back of the display module until the two connectors on the bottom of the logic module align with the connectors on the display module.
- 4. Push down on the logic module until firmly seated.
- 5. Tighten the six captive screws that secure the logic module to the display module to a torque of 0.68 Nm (6…8 lb-in).
- 1. Disconnect power from the terminal.
- 2. Disconnect all power and communication cables.
- 3. Set the terminal, display side down, on a clean, flat, stable surface to prevent scratches, if the terminal is removed from panel.
- 4. Remove the four screws that attach the communication module, if attached, to the logic module and carefully lift the communication module away from the logic module.
- 5. Loosen the six captive screws that secure the logic module to the display module.
- 6. Carefully lift the logic module away from the back of the display module.
- 7. If reusing the memory in the new logic module:
- 8. Install the new logic module.
- 9. Attach the communication module, if necessary.
- Install or Replace a Communication Module
- PanelView Plus 700 to 1500 Terminals
- 1. Disconnect power from the terminal.
- 2. Set the terminal, display side down, on a clean, flat, stable surface to prevent scratches if the terminal is removed from panel.
- 3. Remove the label covering the communication module connector on the logic module.

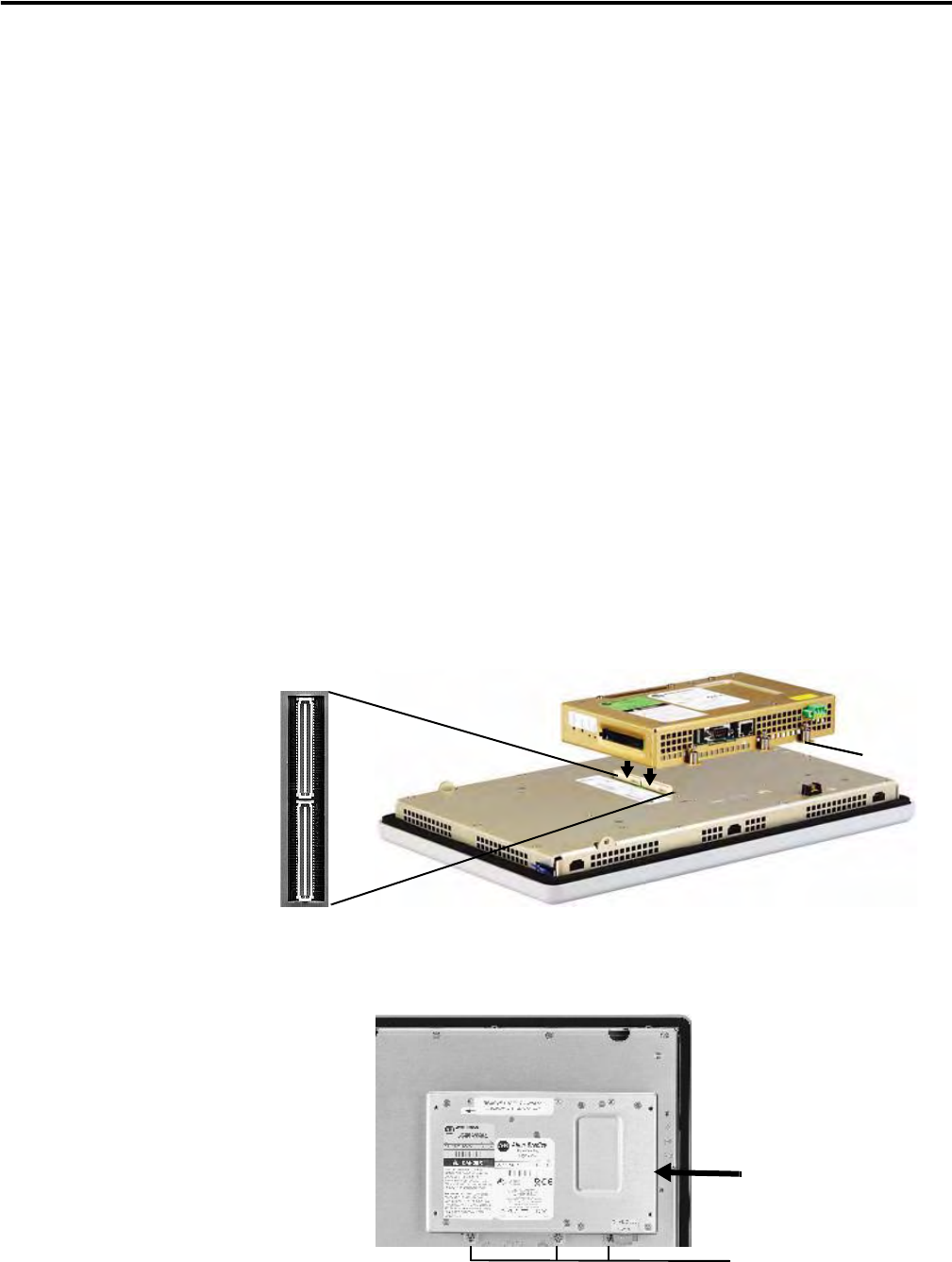

- 4. Position the communication module over the logic module so that the connectors on bottom of module align with connectors on the logic module.
- 5. Push down on the communication module until the connectors are firmly seated.
- 6. Tighten the four screws that secure the communication module to the logic module to a torque of 0.68 Nm (6…8 lb-in).
- 1. Disconnect power from the terminal.
- 2. Disconnect the communication cables from the module.
- 3. Remove the four screws that secure the communication module to the logic module.
- 4. Carefully lift the communication module away from the logic module and set aside.
- 5. Install the new communication module.
- PanelView Plus 400 and 600 Terminals
- 1. Disconnect power from the terminal.
- 2. Set the terminal, display side down, on a clean, flat, stable surface.
- 3. Remove the label covering the connectors on the base unit of the terminal.
- 4. Position the communication module over back of the terminal so that the connector on bottom of communication module align with the connector on the base unit.
- 5. Push down on the communication module until the connector is firmly seated.
- 6. Tighten the three captive screws that secure the module to the terminal, starting with the bottom, left screw on the module. Tighten screws to a torque of 0.34…0.45 Nm (3…4 lb-in).
- 1. Disconnect power from the terminal.
- 2. Disconnect the communication cables from the module.
- 3. Loosen the three screws that secure the communication module to the terminal.
- 4. Carefully lift the communication module away from the terminal and set aside.
- 5. Install the new communication module.
- PanelView Plus 700 to 1500 Terminals
- Replace the Display Module
- 1. Disconnect power from the terminal.
- 2. Remove the terminal from the panel.
- 3. Detach the communication module, if attached, from the logic module by removing the four screws.
- 4. Loosen the six captive screws that attach the logic module to the display module.
- 5. Carefully lift the logic module from the terminal.
- 6. Set the display module aside.
- 7. Position the new logic module over the new display module so that the connectors align.
- 8. Push down on the logic module until firmly seated.
- 9. Tighten the six captive screws that secure the logic module to the display module to a torque of 0.68 Nm (6…8 lb-in).
- 10. Attach the communication module (if necessary) and tighten the four screws to a torque of 0.68 Nm (6…8 lb-in).
- Replace the Battery
- 1. Disconnect power from the terminal.
- 2. Place the terminal, display side down, on a flat stable surface.
- 3. Detach the communication module, if attached, from the logic module by removing the four screws.
- 4. Loosen the six captive screws that attach the logic module to the display module.
- 5. Carefully lift the logic module away from the terminal and flip over to expose the circuit board.
- 6. Locate the battery on the circuit board.
- 7. Remove the battery by lifting up the side of the battery.
- 8. Insert the new battery.
- 9. Attach the logic module by aligning the two connectors on the bottom of the module with the connectors on the terminal.
- 10. Push down on the logic module until firmly seated.
- 11. Tighten the six captive screws that secure the logic module to a torque of 0.68 Nm (6…8 lb-in).
- 12. Attach the communication module (if necessary) and tighten the four screws to a torque of 0.68 Nm (6…8 lb-in).
- Replace the Bezel
- Remove the Display Module Bezel
- 1. Disconnect power from the terminal.
- 2. Set the terminal, display side down, on a flat stable surface.
- 3. On touch screen only terminals, remove the two screws that secure the small metal plate to the back of the display module.
- 4. Disconnect the touch screen connector.
- 5. Remove the screws from the back of the display module.
- 6. Remove the sealing gasket.
- 7. Lift the back of the display module away from the bezel.
- 8. Detach all connectors, maximum of three.
- 9. Set the bezel aside.
- Replace the Display Module Bezel
- 1. Make sure the bezel is free of lint and marks before attaching.
- 2. Attach the connectors.
- 3. Place the back of the display module over the bezel.
- 4. Attach the touch screen connector.
- 5. Replace the sealing gasket.
- 6. Attach the screws that secure the display module to the bezel and tighten to a torque of 1.35…1.58 Nm (12…14 lb-in).
- 7. On touch screen terminals, reattach the small metal plate to the back of the display module using two screws and torque to 0.68 Nm (6…8 lb-in).
- Remove the Display Module Bezel
- Replace the Backlight
- 1. Disconnect power from the terminal.
- 2. Remove the display module bezel.
- 3. Remove the four screws that secure the display bracket for the 700 series C display.
- 4. Remove the four screws that secure the LCD display for all other displays.
- 5. Lift the LCD display and detach the display connector from the circuit board.
- 6. Detach the backlight connectors from the circuit board.
- 7. Follow these steps for the PanelView Plus 700 and 1000 displays.
- a. Press the retaining tab that secures the backlight and then pull out the backlight.
- b. Insert the new backlight.
- 8. Follow these steps for the PanelView Plus 1250 and 1500 displays.
- a. Remove the screws that secure the backlights and remove the backlights.
- b. Insert the new backlights and then secure each with the same screws from the previous step and torque to 0.117 Nm (1.04 lb-in).
- 9. Attach the LCD display connector to the circuit board.
- 10. Attach the backlight connector to the circuit board.
- 11. Secure the LCD display.
- a. Attach the display bracket then secure the display in the bracket for the 700 series C display.
- b. Attach the four screws for all othe displays.
- 12. Replace the display module bezel.
- Remove the Product ID Label
- Replace the Keypad Legend Inserts
- Use an External CompactFlash Card
- Install and Replace Components
- Chapter 7
- Chapter 8
- Upgrade Firmware
- Chapter Objectives
- Transfer Applications
- Create an ActiveSync Connection
- 1. Create a partnership between the devices using a Serial connection.
- 2. When the partnership is created, you can then connect the devices using an Ethernet network.
- What You Need
- Create a Partnership with a Serial Connection
- Install ActiveSync on a Computer
- Initiate Serial Connection on PanelView Plus CE Terminals
- Find ActiveSync Connection and Create a Partnership on a Computer
- 1. When the Connecting to Async Connection dialog appears on the PanelView Plus CE terminal, select the Next button on the Getting Connected screen of your computer.
- 2. Select Yes to create the new partnership.
- 3. Enter the name and press Next.
- 4. Press the Next button.
- 5. Press the Next button and then the Finish button.
- Terminate Connection on PanelView Plus CE Terminals
- Connect via an Ethernet Connection
- Firmware Upgrade Wizard
- 1. Backup all .MER files on the terminal to an external storage card or network.
- 2. Delete all applications on the terminal.
- 3. Record any Ethernet communication settings, such as IP address, subnet masks, and gateways by selecting Terminal Settings>Network and Communications>Network Connections>Network Adapters>IP Address.
- 4. Disable the Auto-start feature on the terminal by selecting Startup Options>FactoryTalk View ME Station Startup and select Go to Configuration Mode.
- 5. Reset the terminal.
- Upgrade Firmware with a CompactFlash Card
- Create Firmware Upgrade Card
- 1. Start the Firmware Upgrade Wizard by selecting Start>Rockwell Software>RSView Enterprise>Firmware Upgrade Wizard.
- 2. Select Create firmware upgrade card.
- 3. From the Firmware source folder list, select the location of the firmware files.
- 4. From the Upgrade firmware version list, select the version of the firmware you want to upgrade to, then press Next.
- 5. Select the appropriate KEPServer drivers and press Next.
- 6. Select Finish to copy the firmware source files to the location specified in step 2.
- Upgrade Firmware in Terminal with Firmware Upgrade Card
- 1. Insert the CompactFlash card into the card slot of a powered terminal.
- 2. Press Upgrade to begin the firmware upgrade.
- 3. On touch or touch-screen terminals, you must calibrate the touch screen by selecting pointers in all four corners of the screen and pressing the middle of the screen when prompted.
- 4. Remove the card and press F8 or Exit to reset the terminal.
- 5. Replace the .MER files that you backed up before starting the upgrade or download a new .MER file to the terminal.
- 6. Load the .MER file and run the project.
- Create Firmware Upgrade Card
- Upgrade Firmware with a Network (Ethernet) Connection
- 1. Start the Firmware Upgrade Wizard by selecting Start>Rockwell Software>FactoryTalk View Enterprise>Firmware Upgrade Wizard.
- 2. Select Upgrade firmware on terminal and click OK.
- 3. Select Network connection and click Next.
- 4. Locate the terminal on your Ethernet network via its IP address.
- 5. Double-click EthernetIP Devices and select the appropriate terminal and click OK.
- 6. Enter the IP address for the terminal and click OK.
- 7. Select the terminal to be upgraded and click OK.
- 8. From the Firmware source folder text box, select the location of the firmware files.
- 9. From the Upgrade firmware version list, select the version of the firmware you want to upgrade to, then click Next.
- 10. Select the appropriate KEPServer drivers and click Next.
- 11. Click Finish to start the upgrade.
- 12. Click Yes to continue the upgrade process.
- 13. When the download is complete, click OK to reset the terminal.
- 14. On touch or touch-screen terminals, you must calibrate the touch screen by selecting pointers in all four corners of the screen and pressing the middle of the screen when prompted.
- 15. Replace the .MER files that you backed up before starting the upgrade or download the new .MER files to the terminal.
- 16. Load the .MER file and run the project.
- Upgrade the Operating System (OS)
- External CompactFlash Card
- Local OS Update
- 1. Copy the operating system binary file to a CompactFlash card.
- 2. Insert the CompactFlash card into the external card slot of the PanelView Plus CE terminal.
- 3. At a CMD prompt on the PanelView Plus CE terminal, run:
- 4. Verify the new operating system is loaded using the system application in the control panel.
- Load PanelView Plus CE Components
- ActiveSync Connection
- 1. Establish an ActiveSync connection between your computer and the PanelView Plus CE terminal, using either a serial or Ethernet connection (Ethernet is recommended).
- 2. Open the PanelView Plus CE Install Utility folder on the PanelView Plus CE Accessory CD and run the InstallFromActiveSync.exe program.
- 3. Select the desired components from the list of available components.
- 4. When satisfied with the selections, click Install/Remove.
- 5. Restart the PanelView Plus CE terminal.
- External CompactFlash Card
- 1. Open the PanelView Plus CE Install Utility folder on the PanelView Plus CE Accessory CD and copy the following to an FAT formatted CompactFlash card:
- 2. Insert the CompactFlash card into the external card slot on the terminal.
- 3. Using Windows Explorer, browse the \Storage Card folder and run InstallFromStorageCard.exe.
- 4. Select the desired components from the list of available components.
- 5. When satisfied with the selections, click Install/Remove.
- 6. Restart the PanelView Plus CE terminal.
- ActiveSync Connection
- Upgrade Firmware
- Chapter 9
- Troubleshoot the System
- Chapter Objectives
- LED Indicators
- Isolate the Problem
- Startup Information Messages
- Startup Sequence
- Startup Error Messages
- Check Terminal Components
- Ethernet Connnection
- Application Does Not Run
- Configuration Mode Access
- File System Errors
- Advanced Diagnostics for CE Terminals
- System Identification Errors
- Restart in Safe Mode
- 1. Insert a thin probe into the hole marked default and press the switch.
- 2. Insert the probe into the hole marked reset and press the switch.
- 1. The default operating system registry is loaded.
- 2. The operating system boots but FactoryTalk View ME software is not started.
- 3. The operating system displays the ME may be corrupt diagnostic screen.
- 4. The next time you reset or power up the terminal, the system will start normally and run FactoryTalk View ME software.
- Clean the Display Window
- Troubleshoot the System
- Appendix A
- Appendix B
- Appendix C
- Appendix D
- Appendix E
- Back Cover
142 Publication 2711P-UM001G-EN-P - September 2007
Chapter 6 Install and Replace Components
12. Push down on the logic module until firmly seated.
13. Tighten the six captive screws that secure the logic module to a
torque of 0.68 Nm (6…8 lb-in).
Install or Replace the Logic
Module
This section shows how to install and replace the logic module for 700
to 1500 terminals. If the display module and logic module are ordered
as separate components, attach the logic module to the display
module before panel installation.
The logic module is available with or without RAM and internal
CompactFlash installed. If ordered as separate components, you must
install the memory before attaching the logic module to the display
module.
Follow these steps to install a logic module.
1. Disconnect power from the terminal.
2. Set the terminal, display side down, on a clean, flat, stable
surface to prevent scratches, if the terminal is removed from
panel.
3. Position the logic module over the back of the display module
until the two connectors on the bottom of the logic module align
with the connectors on the display module.
4. Push down on the logic module until firmly seated.
5. Tighten the six captive screws that secure the logic module to
the display module to a torque of 0.68 Nm
(6…8 lb-in).
Captive
Screw
Logic Module
Captive screws
on top and bottom.
