ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0135

161015

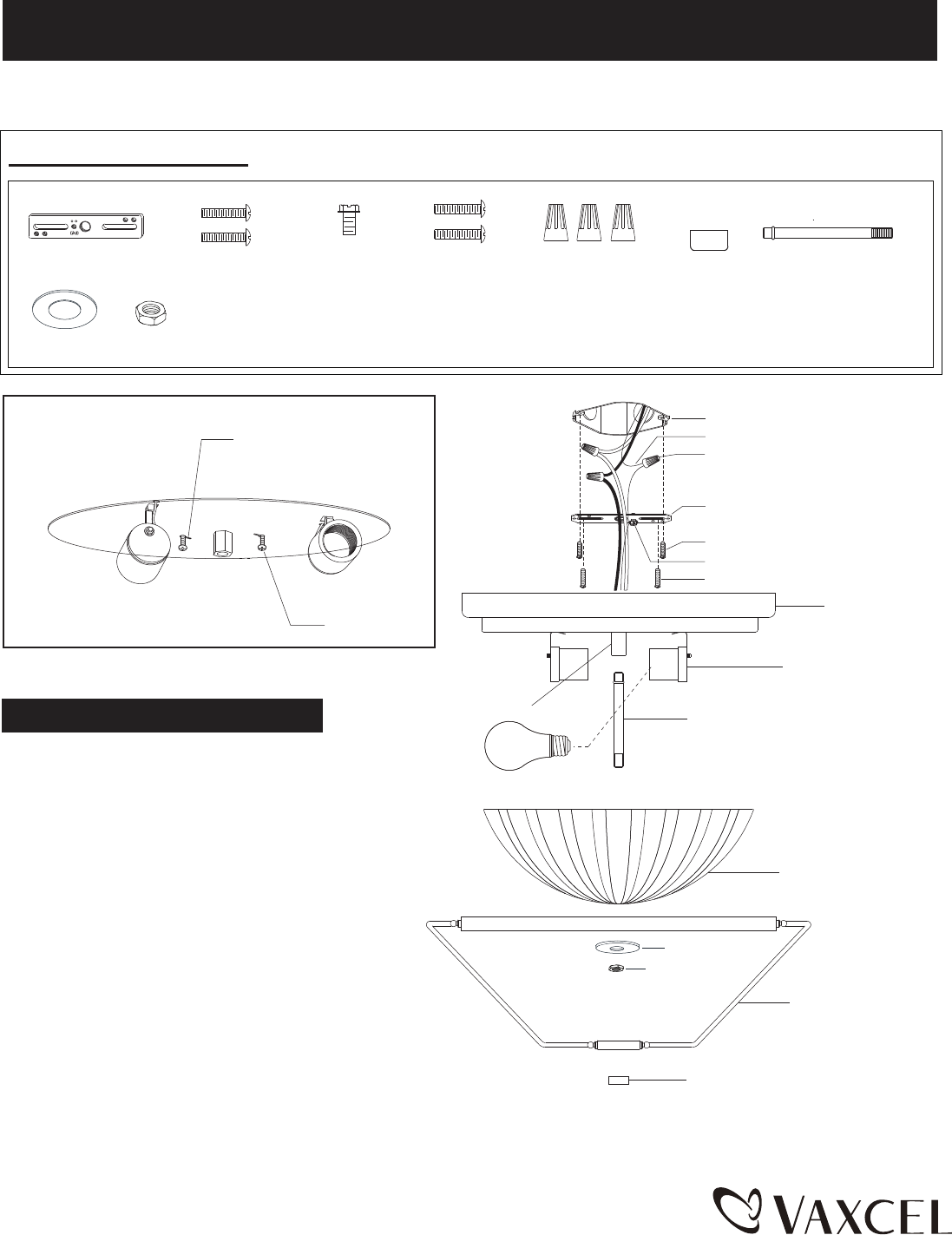

Fig.1

Screw

Key Hole Slot

Ceiling Pan

Socket

Coupling

Nipple(G)

Glass Shade (J)

Metal Frame

Finial(F)

Metal Pad (H)

Hex Nut (I)

Nipple (G)

Mounting Screw (B)

Green Grounding

Screw (C)

Wire Nut (E)

Mounting Strap (A)

Fixture

Mounting Screw (D)

Finial (F)

1. Attach the two fixture mounting screws to the holes

on the mounting strap, and screw them in 2 to

3 turns.

2. Attach the mounting strap to the outlet box

using two mounting screws.

Outlet Box

House Grounding Wire

Wire Nut(E)

Fixture Mounting Screw(D)

Mounting Strap(A)

Green Grounding Screw(C)

Mounting Screw(B)

Bulb Type A Max.60W

(not included)

Metal Pad (H) Hex Nut (I)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

3.Pull out the source wires from the outlet box.

Make wire connections using wire nuts as follows:

---Connect the hot wire (usually black insulation)

from the fixture to the black wire from the

power source.

---Connect the neutral wire (usually white insulation)

from the fixture to the white wire from the power

source.

---Attach the fixture grounding wire (usually green insulation

or bare wire) to the mounting strap with the green

grounding screw. Then connect it to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

Summary of content (2 pages)

PAGE 1
C0135 ASSEMBLY AND INSTALLATION INSTRUCTIONS WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS. Hardware Package (included): Mounting Strap (A) Metal Pad (H) Mounting Screw (B) Green Grounding Screw (C) Fixture Mounting Screw (D) Wire Nut (E) Finial (F) Nipple (G) Hex Nut (I) Fig.
PAGE 2
4. Attach the ceiling pan to the mounting strap by inserting two fixture mounting screw heads into the key holes, and rotate the pan until it locks in place. Then secure the screws tightly. (See Fig.1) 5. Screw the nipple with extrusion head into the coupling untill tightened. 6. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed wattage. 7. Attach the glass shade to the pan by inserting the nipple and tighten it with metal pad and hex nut. 8.
