Installation Guide

Parts Number (5668MM)

Glass Shade (J) (X1)

Parts Number (9862CR)

161015

4. Attach the ceiling pan to the mounting strap by inserting two fixture mounting screw heads into the key

holes, and rotate the pan until it locks in place. Then secure the screws tightly. (See Fig.1)

5. Screw the nipple with extrusion head into the coupling untill tightened.

6. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed

wattage.

7. Attach the glass shade to the pan by inserting the nipple and tighten it with metal pad and hex nut.

8. Attach the metal frame to the glass shade, then tighten it with finial.

9. Turn on the power at the main fuse or circuit breaker box.

A: 16-3/4"

B: 6-1/4"

Turn on the power at fuse or circuit box

Nipple (G)

Mounting Screw (B)

Green Grounding

Screw (C)

Wire Nut (E)

Mounting Strap (A)

Fixture

Mounting Screw (D)

Finial (F)

Metal Pad (H) Hex Nut (I)

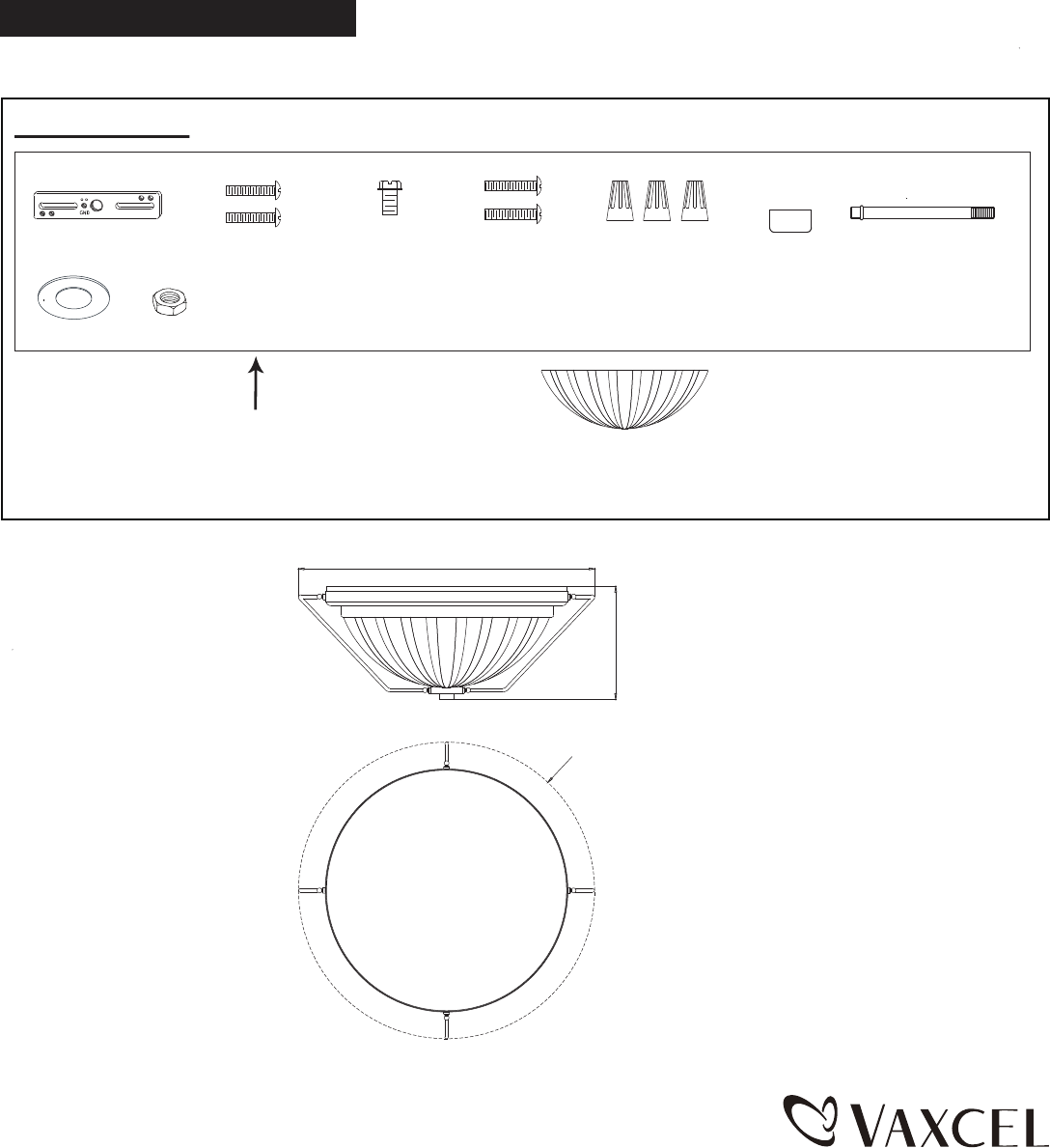

The following parts are available for re-order if damaged or missing.

Spare Parts List:

Mounting Hardware

5668MM (1SET)

Glass Shade

9862CR
