Installation Guide

Cross Bar (A)
Mounting Screw (B) Wire Connector (C)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0212
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
181206
Turn off the power at fuse or circuit box
Installation Steps
G45 LED Bulb Max.4W X 4 (D) Glass Shade X 4 (E)
Canopy
Outlet Box
Set Screw
Mounting Screw (B)
Wire Connector (C)
Cross Bar (A)
Green Grounding Screw
Swivel
Light Head
Glass Shade (E)
Hand Screw (F)
G45 LED Bulb Max.4W (D)
(included)

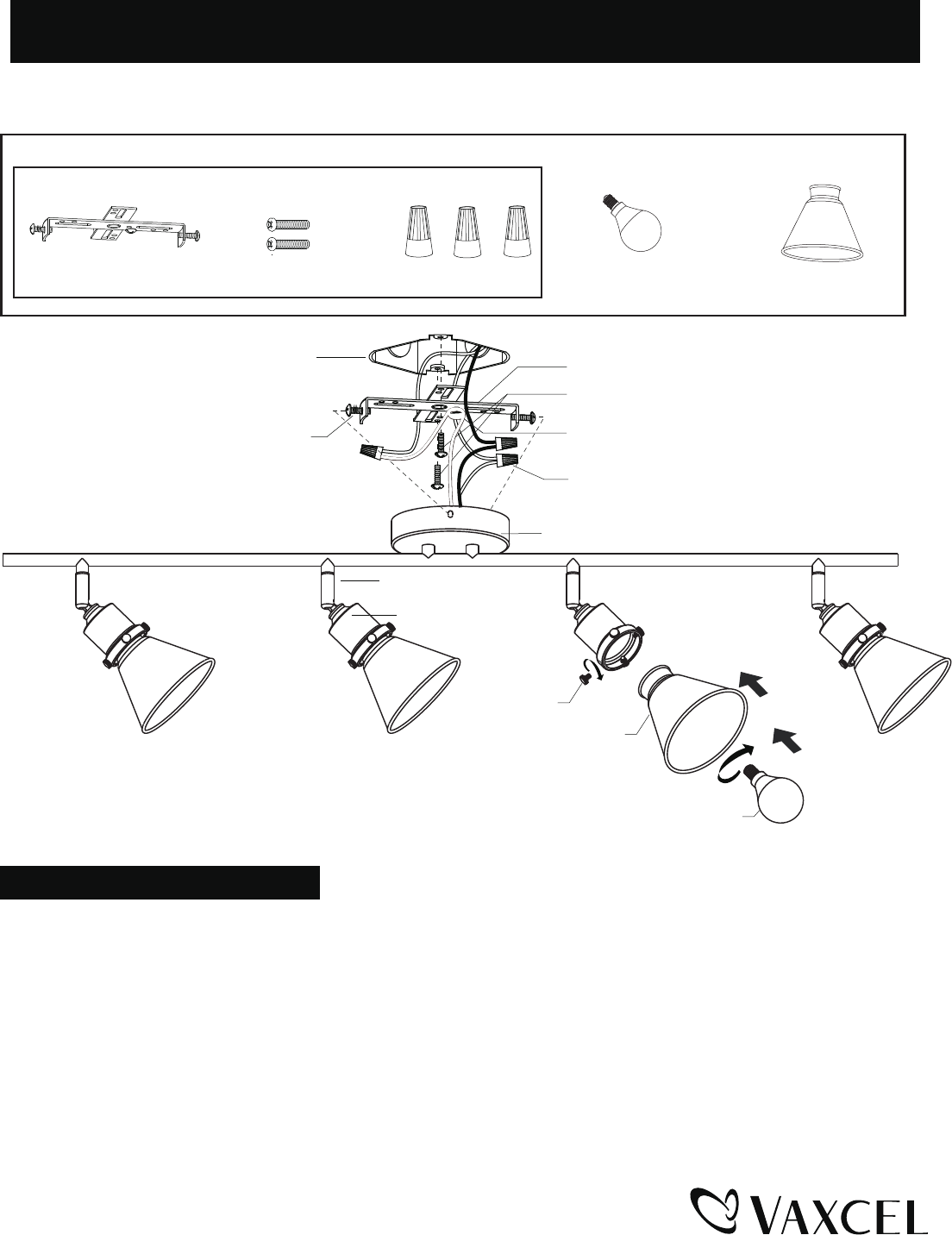

1. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
2. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections by using the
wire connector (C) as follows.
--- Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
--- Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
--- Attach the fixture grounding wire to the cross bar (A) with the green grounding screw.
Then connect it to the house grounding wire with a wire connector (C).
Carefully put the wires back into the outlet box.
3. Attach the canopy to the cross bar (A) by aligning holes, secure the set screws from the side hole of the canopy
into the hole in the side of the cross bar (A), then tighten the screws.
