Using the Camera to Record and Analyze a Golf Swing
7. Rotate the control dial to change the angle of
the blue line so it is aligned with the golfer’s
shoulder, and then press [SET].
• You can also change the angle of the blue line by
rotating the function ring.
• Changing the angle of the blue line will cause the
displayed angle of inclination (yellow part) and
the blue angle value in the upper left corner to
change accordingly.
8. Use [8], [2], [4], and [6] to align the
reference point (the point where the red line
and the green line intersect) with the golfer’s
hip. Next, rotate the control dial to change
the angle of the green line so it runs from the
hip to the shoulder.
• You can also change the angle of the green line
by rotating the function ring.
• Changing the angle of the green line will cause
the displayed angle of inclination (yellow part)
and the green angle value in the upper left
corner to change accordingly.
9. Press [RING].
This starts playback. Use the lines to check the golfer’s swing plane.
• You can create a new movie file with the guidelines built into the moment of
impact movie by pressing [SET] during movie playback to pause it, and then
pressing [0] (Movie).

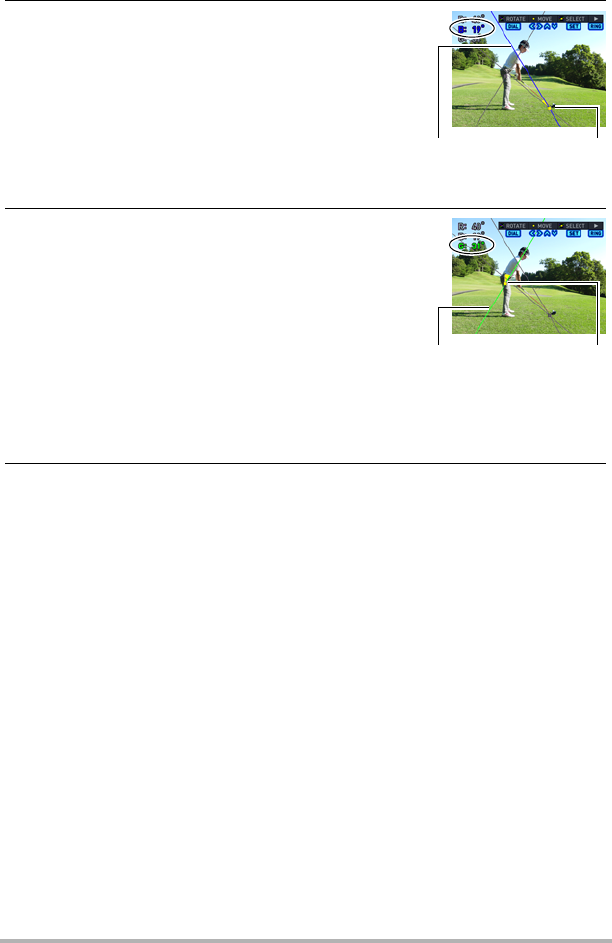

Blue line Reference
point
Green line Reference
point
