User Manual

1. General Description
CC&C BT-0002M Bluetooth module class II is powered by CSR BlueCore2, which
with RF and baseband function been integrated in a single chip and was designed for
Bluetooth 2.4 GHz wireless applications. With band-pass filter, balun, crystal and
flash memory built on, it can reduce external components and provide a hardware
engineer with a speed and convenient way to complete their designs. Because of
compact sizes, they can easily design into customers’ target devices. For instance,
they can be used for PDA, notebook, tablet PC, keyboard and mouse as an internal
module. The BT-0002M develops the Bluetooth protocol stacks, profiles and with a
plenty of software development and integration experiences, CC&C can help
customer to design a specific device.
2. General Specification
Model Name BT-0002M
Product Name BT Module (CSRBC02)-Class II
Size 52x19x2.7mm
Weight 2.8 gram
Specification Bluetooth spec. 1.1
Antenna terminal 50 Ohm
Power Class Class-II
Digital interface Board to board connector for
USB interface or
UART interface
Operating Voltage 3.3V +/- 0.3V ; 5V (USB)
Operating Current TBD
Operating Temp.
-10 ~ 70℃
3.

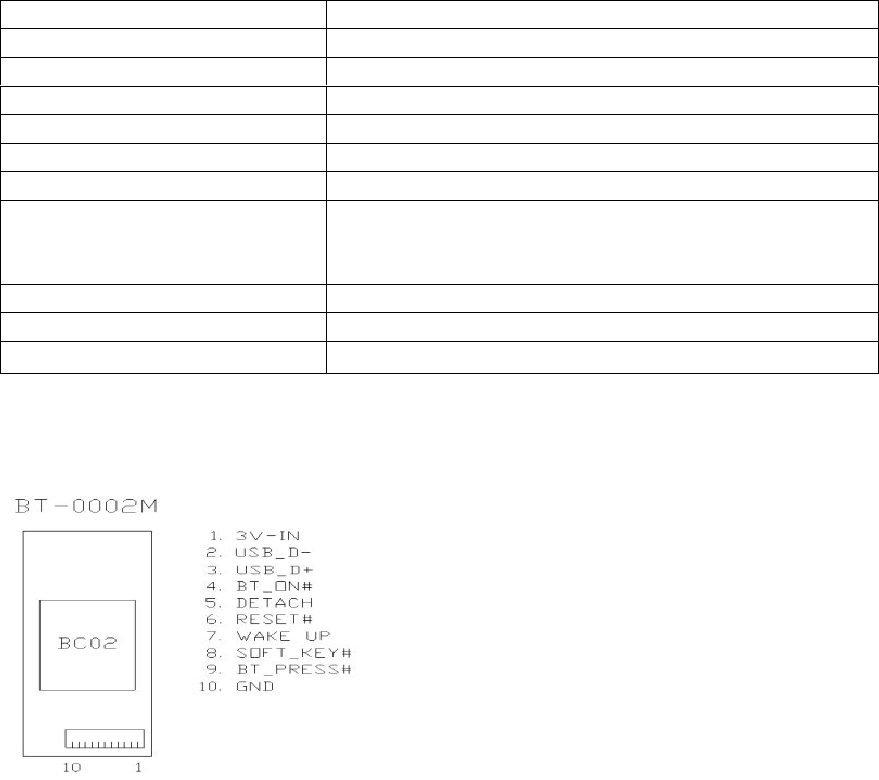

Pin assignment
