Installation Guide

Install up to 8 telephone wire runs in remaining IDC

blocks.

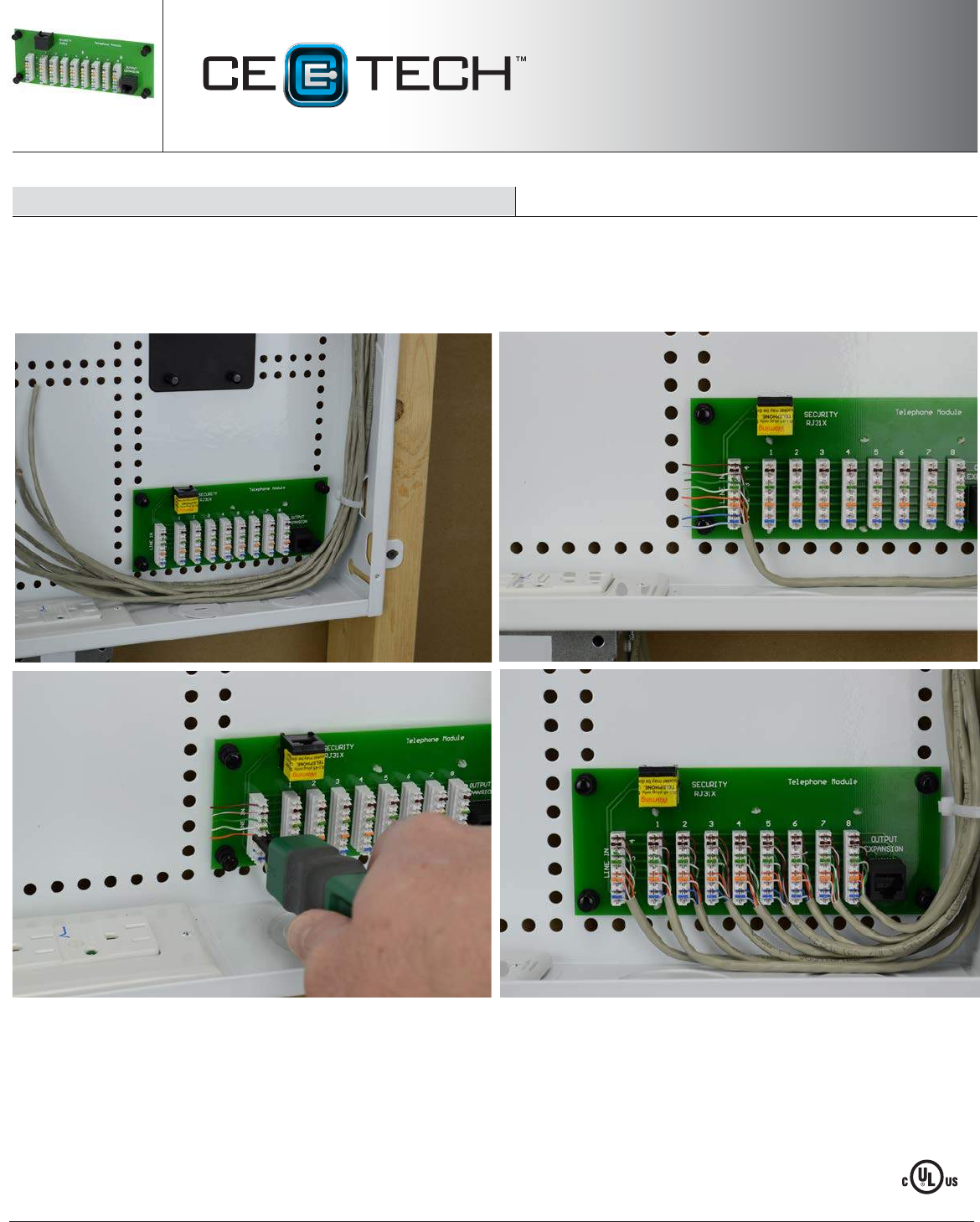

Route telephone cable into enclosure. Place the module in

desired mounting hole. Press down on mounting clips to

lock in place.

Match line in colored pairs with coresponding colors on

IDC block. Set in place prior to punch down.

Punch down all wires using standard 110 impact punch-

down tool.

Item #1000015579

Model #5570

Visual Installation Guide

1 x 8 Telephone Module

Installation: 1 x 8 Telephone Module

For assistance, call: 1-800-394-7519

HOMEDEPOT.COM

Distributed by: Home Depot U.S.A., Inc.

2455 Paces Ferry Rd., NE, Atlanta, GA 30339

PAGE 1
