Quick Install Guide
Installation

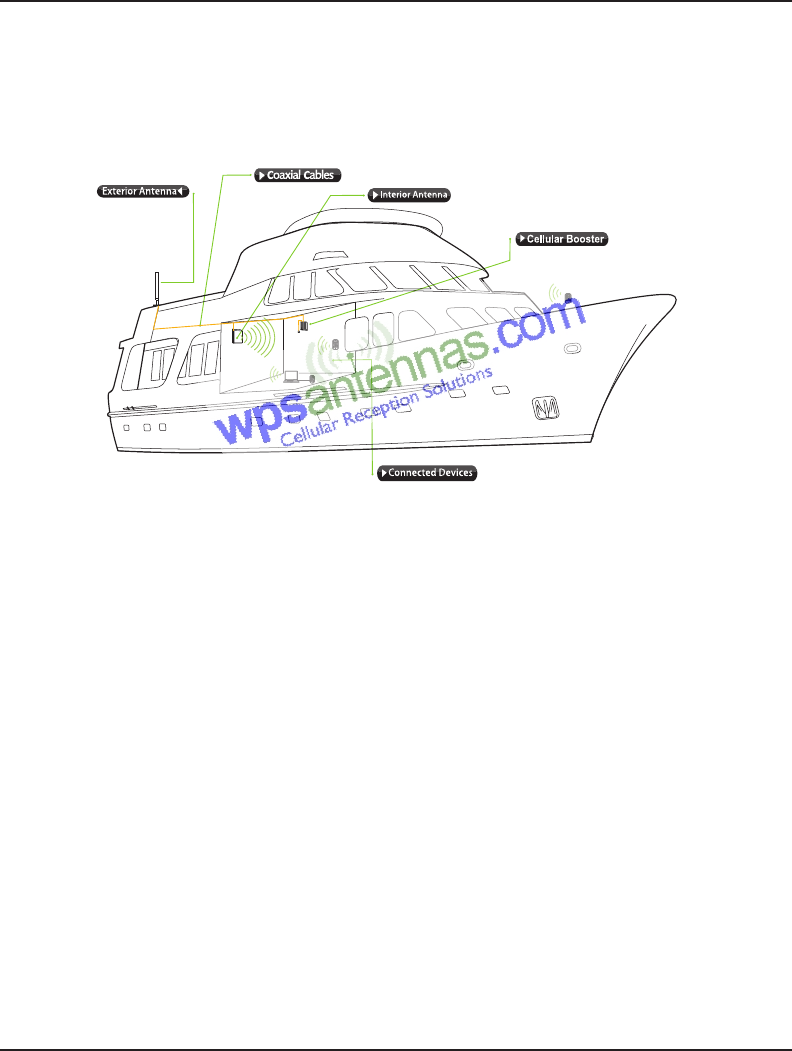

The Force5-50 booster kit is specially designed for marine applications. It can
also be used for other applications with the right antennas, cables and mounting
hardware.
Step 1. Connect the SC-200 Outside Antenna
The SC-200 is a, full-band antenna, ideal for marine use.
Option 1 (Recommended)
1. Choose a mounting location that is as high as possible, free from obstructions
and as far as possible from other antennas and sources of RF signal.
2. Before mounting base, drill a hole in the middle of the mounting location wide
enough in diameter to allow SC-174 cable with FME connector to go through.
3. Hand-tighten the antenna base to the ferrule.
4. Feed cable, N connector end rst, through bottom of base and through
hollowferrule.
5. Hand-tighten N connector to outside antenna and antenna to ferrule.
6. Feed cable, FME end rst through the drilled hole.
7. Mount base (screws not provided) and hand tighten ferrule to mount base.
