The monitor shows several information and suggests various alternative ways of use to the operator.
This is through various “screens”.
Buttons enabled:
: main functions screen (
MENU ACCESS DIAGRAM)
:
STATIC CORRECTION MODE selection
: eccentricity screen selection
: balancing spin ( RESULT OF MEASUREMENT )
Dimensions gauge: when extracted, the Dimensions screen is selected ( PRESETTING OF WHEEL DIMENSIONS)
If the machine remains on the initial screen for a certain amount of time without being used, the system is automati-
cally switched to a screen-save. Pressing on any point on the screen, movement of the wheel of distance + diameter
gauge will cause automatic switching from the screen-save menu to the initial screen. Automatic start-up operated
by the protection system is not available from the screen-saver for safety reasons.

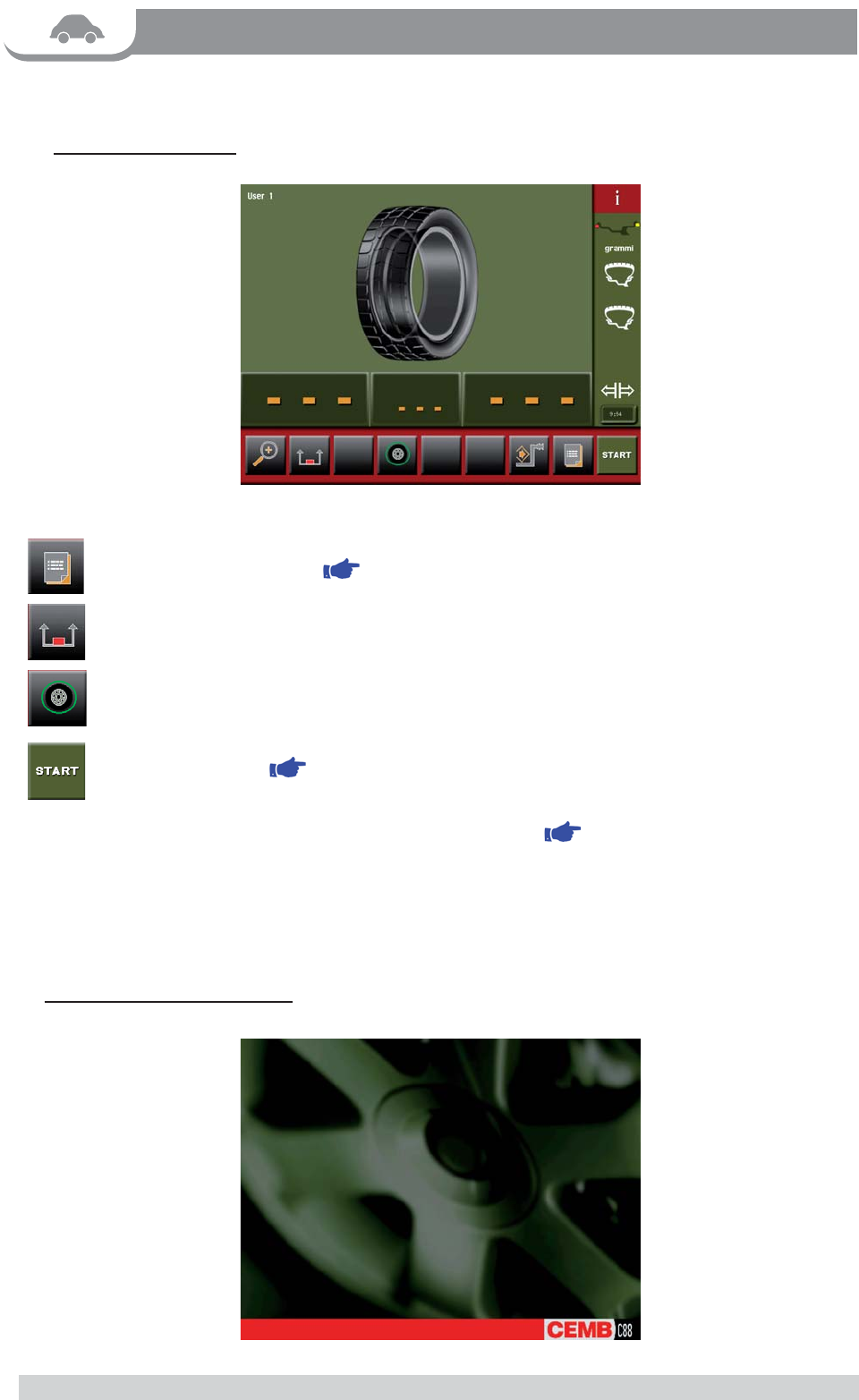

4. ► 2 - SCREEN-SAVE SCREEN
Name of the wheel balancer’s owner.
4.1 - INITIAL SCREEN ►
