Instruction Manual

I 0709 - 3GB
1- GENERAL
1 ► .1 - GENERAL SAFETY RECOMMENDATIONS
The machine should only be used by authorized and suitably trained personnel.
Do not use the machine for purposes other than those specifi ed in this manual.
The machine should not be modifi ed in any way except for those modifi cations explicitly carried
out by specialised personnel.
Never remove the safety dehyvices. Any work on the machine should only be carried out by
specialised personnel.
A
void using strong jets of compressed air for cleaning.
Use alcohol to clean the plastic panel or shelves (AVOID LIQUIDS CONTAINING SOLVENTS).
Before starting the wheel balancing cycle, make sure that the wheel is securely locked on the
adapter.
The machine operator should avoid wearing clothes with fl apping edges. Make sure that unau-
thorized personnel do not approach the machine during the work cycle.
Avoid placing objects inside the cabinet as they could impair the correct operation of the
machine.
For the TOUCH SCREEN see the specifi c instructions below.
1.1.1 - STANDARD SAFETY DEVICES
►
S ▪ TOP push button for stopping the wheel under emergency conditions.
The safety guard of high impact plastic is with shape and size designed to prevent risk of counterweights ▪
from fl ying out in any direction except towards the fl oor.
A microswitch prevents starting the machine if the guard is not lowered and stops the wheel whenever ▪
the guard is raised.
1.2 - FIELD OF APPLICATION ►
The machine is designed for balancing car or motorcycle wheels weighing less than 75 kg. It can be operated within
a temperature range of 0° to + 45°C.
It can measure the geometric radial and lateral run-out of the wheels (option).
It can print a balancing certifi cate (option).

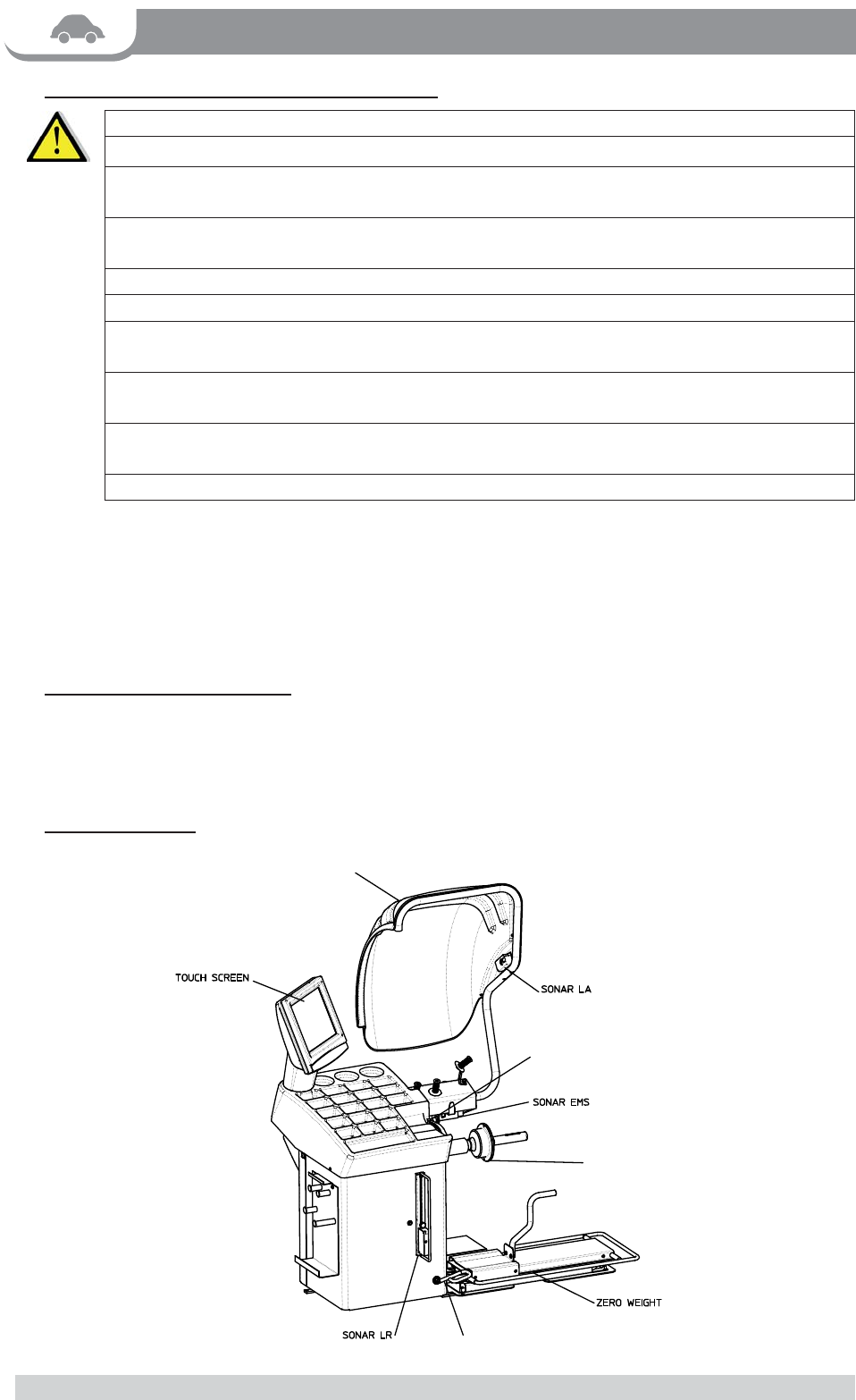

1.3 - MAIN PARTS ►
WHEEL GUARD
AUTOMATIC GAUGE
PNEUMATIC SHAFT ASSEMBLY
BP PEDAL
