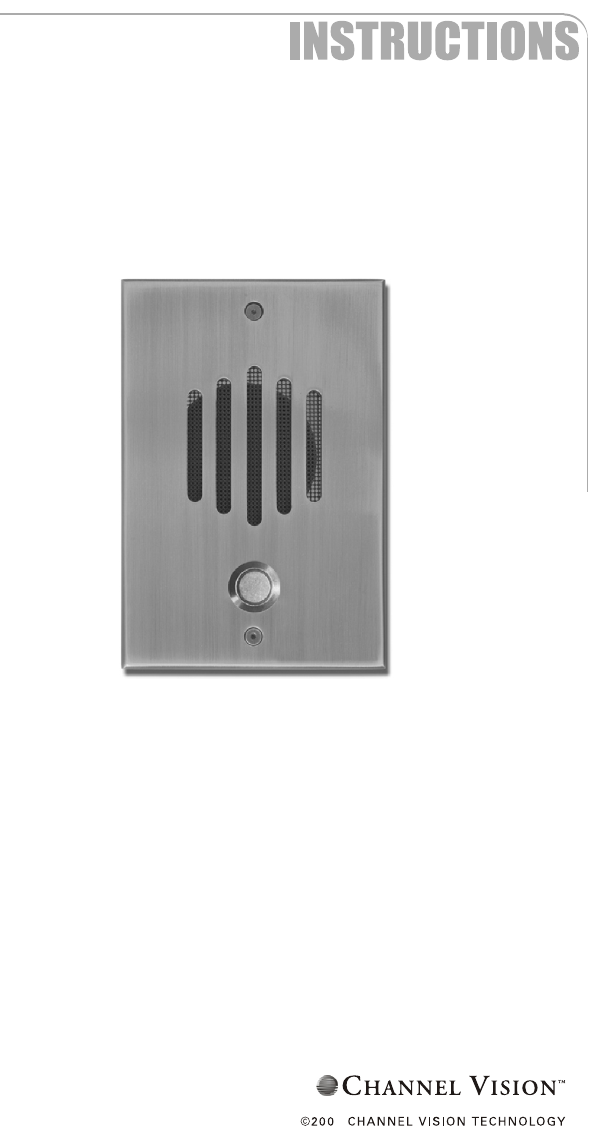

DP-XXXX DP-XXXXC DP-XXXXP Telephone Entry Door Intercom 7
Channel Vision’s DP-Series are 1/4" solid brass door plates that interface with a telephone entry controller to provide communication with the front door. They are available in a variety of configurations including options for a hidden camera and compatibility with Panasonic’s popular KSU phone systems. Each plate comes with the DP-9001 or DP-9002 surface mount box (depending on the finish color). It is compatible with the DP-Rbox-II flush mount box, which is sold separately.
Understanding the model number: Part numbering: DP door plates DP-0212C (DP-0212C shown for example only) Blank C P P-0920, P-0921, & TE110/C-0920 compatible P-0930 compatible Panasonic compatible 212 222 232 242 252 262 272 282 302 White Polished Brass Antique Brass Chrome Oil Rubbed Bronze Antique Copper Satin Silver Black Satin Nickel 0 5 6 No camera Black and white camera Color camera Understanding the compatibility options There are three different types of systems that DP door plates can be u
Attaching the Companion Board (DP-XXXX and DP-XXXXP) This door intercom product consists of two sub assemblies which must be attached to each other before the final assembly can be installed. In this guide the electronic sub assembly will be referred to as the “Companion Board” and the mechanical assembly will be referred to as the “Door Plate.” Review the following diagrams and assemble as shown.
Attaching the Camera (DP-XXXX and DP-XXXXP) The DP-5xxx, DP-5xxxP, DP-6xxx, and DP-6xxxP come with a mini camera that can be attached to the integrated mount that allows the camera to see through the opening in the plate. The illustrations bellow show how to mount the camera. Mini Pinhole Camera Threaded Mounting Hole Cone Lens Break away the section of perforated metal screen that covers the camera opening by pushing a screwdriver through the slot on the front of the door plate.
Attaching the Companion Board (DP-XXXXC) This door intercom product consists of two sub assemblies which must be attached to each other before the final assembly can be installed. In this guide the electronic sub assembly will be referred to as the “Companion Board” and the mechanical assembly will be referred to as the “Door Plate.” Review the following diagrams and assemble as shown.
Attaching the Camera (DP-XXXXC) The DP-5xxxC and DP-6xxxC come with a mini camera that can be attached to the integrated mount that allows the camera to see through the opening in the plate. The illustrations bellow show how to mount the camera. Mini Pinhole Camera Threaded Mounting Hole Cone Lens Break away the section of perforated metal screen that covers the camera opening by pushing a screwdriver through the slot on the front of the door plate.
Channel Vision Compatible (DP-xxxx) Channel Vision’s DP-0xxx does not come with a camera, but the DP-5xxx & DP-6xxx Series door plates come with mini cameras which attach to the integrated camera mount. The DP-5xxx contains a Black & White camera, while the DP-6xxx contains a color camera. The DP-0xxx, DP-5xxx, and DP6xxx all interface with the Channel Vision’s telephone entry controllers: TE110, C-0920, P-0920 and P-0921 to provide audio and video communication with the front door.
Panasonic® Compatible (DP-xxxxP) Channel Vision's DP Panasonic Series models are a compatible replacement for the Panasonic KXT30865. These 1/4" solid brass door plates provide an attractive alternative to the standard plastic door station sold by Panasonic. This product interfaces with Panasonic’s KSU phone systems to provide communication with the front door. Model DP-6xxxP includes a color camera, model DP-5xxxP includes a Black & White camera, and DP-0xxxP Connect to the includes no camera.
Channel Vision CAT5 Intercom Compatible (DP-xxxxC) The diagram below shows how to connect the DP-xxxxC to Channel Vision’s CAT5 Whole-House Intercom system. When the button is pressed on the DPxxxxC the ST-2000 Intercom Stations will generate a door chime. Pressing Answer/End will open communication with the DP-xxxxC. Model DP-6xxxC includes a color camera, model DP-5xxxC includes a Black & White camera, and DP-0xxxC includes no camera.
Specifications: Speaker: Size (mm): 50 Depth (in): 1.5 Impedance: 8 Ohms Power Peak (W): 0.2 Frequency Range: 500 Hz - 4.5 kHz Dimensions: DP-Series plate only: 6 ½” (L) x 4 3/8” (W) x 1/4” (D) DP-Series assembly: 6 ½” (L) x 4 3/8” (W) x 1 3/4” (D) Black & White Camera: (DP-5xxx & DP-5xxxP only) Camera Lens: 3.8mm Resolution: 500 lines S/N Ratio: More than 48 dB Min Illumination: 0.05 LUX @ F2.
Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed. This warranty does not cover damages in shipment, failures caused by other products not supplied by Channel Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment.
