Mounting
Before mounting this product, read and follow the Safety Notes.
Orientation
Always mount this product in a safe position. The Amhaze™ II may be mounted in any
position; however, make sure there is adequate room for ventilation
, configuration, and
maintenance.
Rigging
CHAUVET® recommends using the following general guidelines when mounting this
product.
• When selecting an installation location, consider easy access to this product for
operation, programming adjustments, and routine maintenance.
• Make sure to mount this product away from any flammable material as indicated in the
Safety Notes
.
• Never mount in places where rain, high humidity, extreme temperature changes, or
restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can support the product’s
weight. See the Technical Specifications
for the weight-bearing requirements of this
product.
•
When hanging this product, always secure to a fastening device using a safety cable.
Procedure
The Amhaze™ II has a threaded mounting hole, size M13, at the top of the hazer. This
mounting hole is appropriate for use with a mounting clamp.
You must supply your own
mounting clamps, so be sure the clamp is capable of supporting the weight of this product.

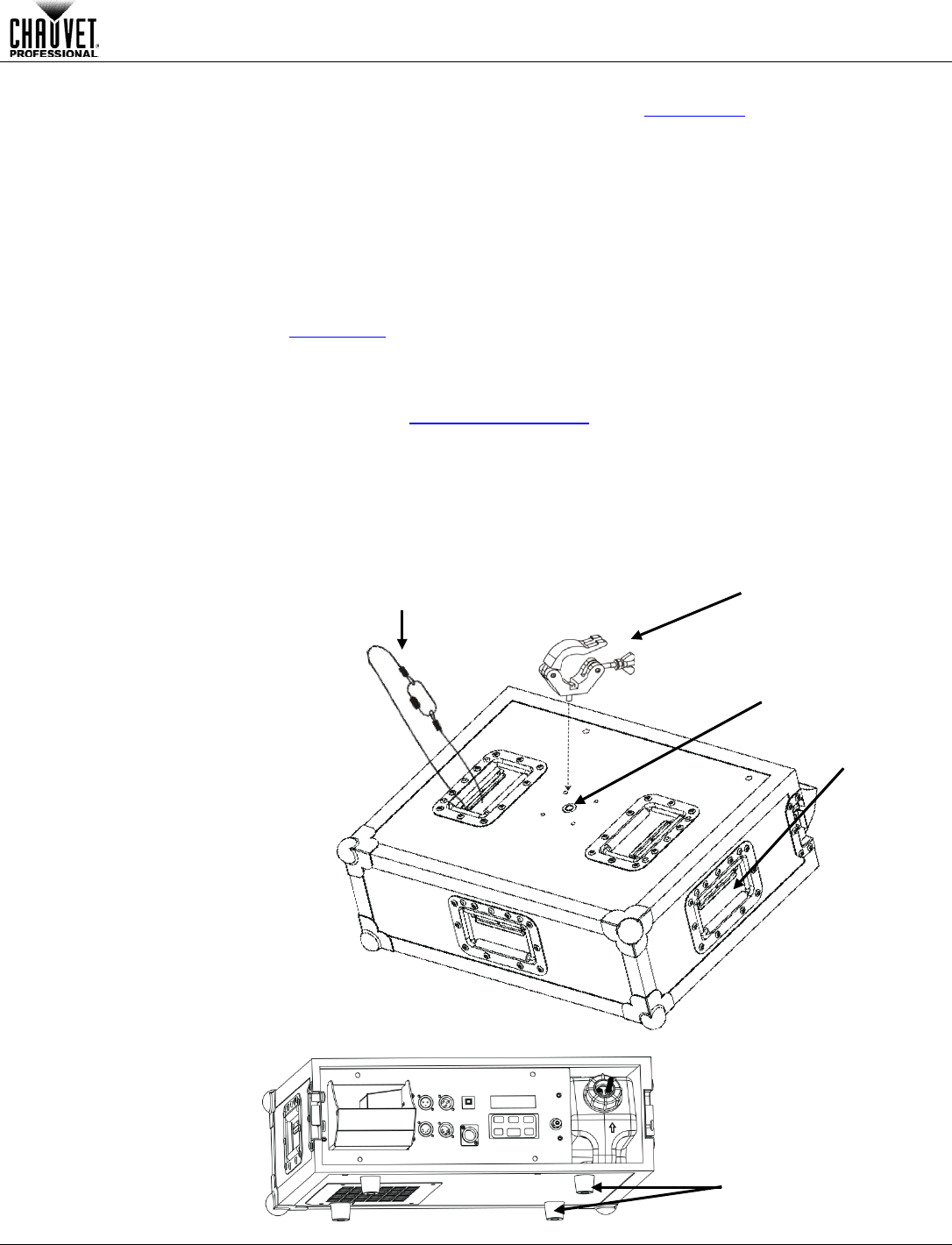

Mounting Diagram
Handles (x 5)
Overhead
Mounting
Mounting Clamp
(works with CLP-15 or
CLP-15N clamp from
CHAUVET®)
Safety Cable
(works with CH-05 cable
from CHAUVET®)
Floor Mounting
Threaded Mounting Hole
Size M13
Rubber Feet (x4)
for floor mounting
