Mounting
Before mounting this product, read and follow the Safety Notes. For our Chauvet line of
mounting clamps, go to www.trusst.com/productcategory/accessories-clamps/.
Orientation
Always mount this product in a safe position and make sure there is adequate room for
ventilation, configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
• When selecting an installation location, consider easy access to this product for operation,
programming adjustments, and routine maintenance.
• Make sure to mount this product away from any flammable material as indicated in the
Safety Notes
.
• Never mount in places where rain, high humidity, extreme temperature changes, or
restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can support the product’s
weight. See the Technical Specifications
for the weight-bearing requirements of this
product.
• When hanging this product, always secure to a fastening device using a safety cable (such
as CH-05 from Chauvet).
Procedure
The Atmos™ comes with rubber feet for floor mounting and a yoke to which you can attach
mounting clamps for hanging.
You must supply your own mounting clamps. Make sure the
structure and the clamps (such as CLP-15 from Chauvet) are capable of supporting the weight
of this product. Use at least one mounting point per product.

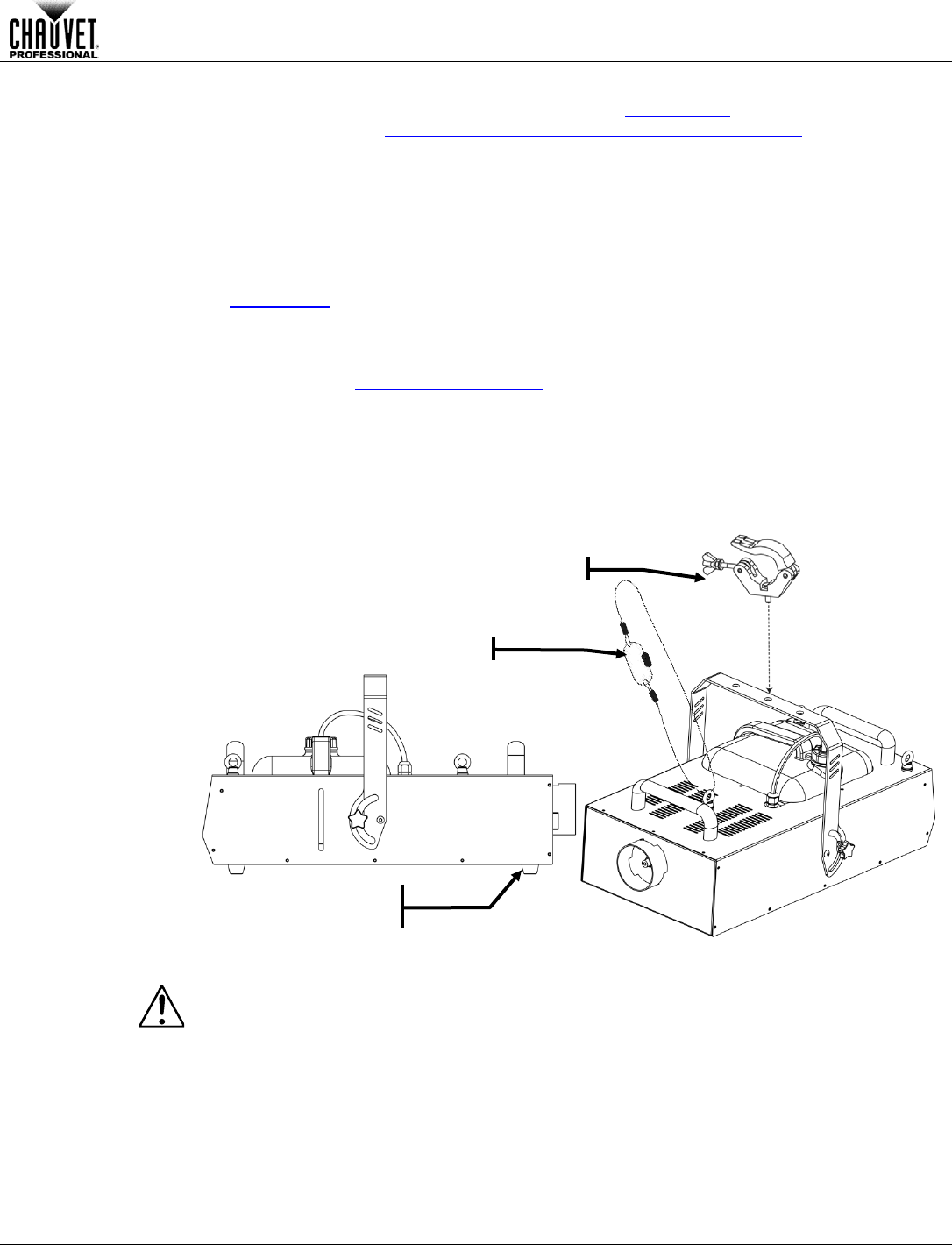

Mounting Diagram
When using only one mounting clamp, be sure to use a clamp with a captive bolt to
prevent accidental loosening.
Floor Mounting
Overhead Mounting
Mounting Clamp
Safety Cable
Rubber Feet (x4)
for floor mounting
