Introduction
Q-Scan 250 & Q-Roll 250 User Manual 5 2005-11-15/13:24

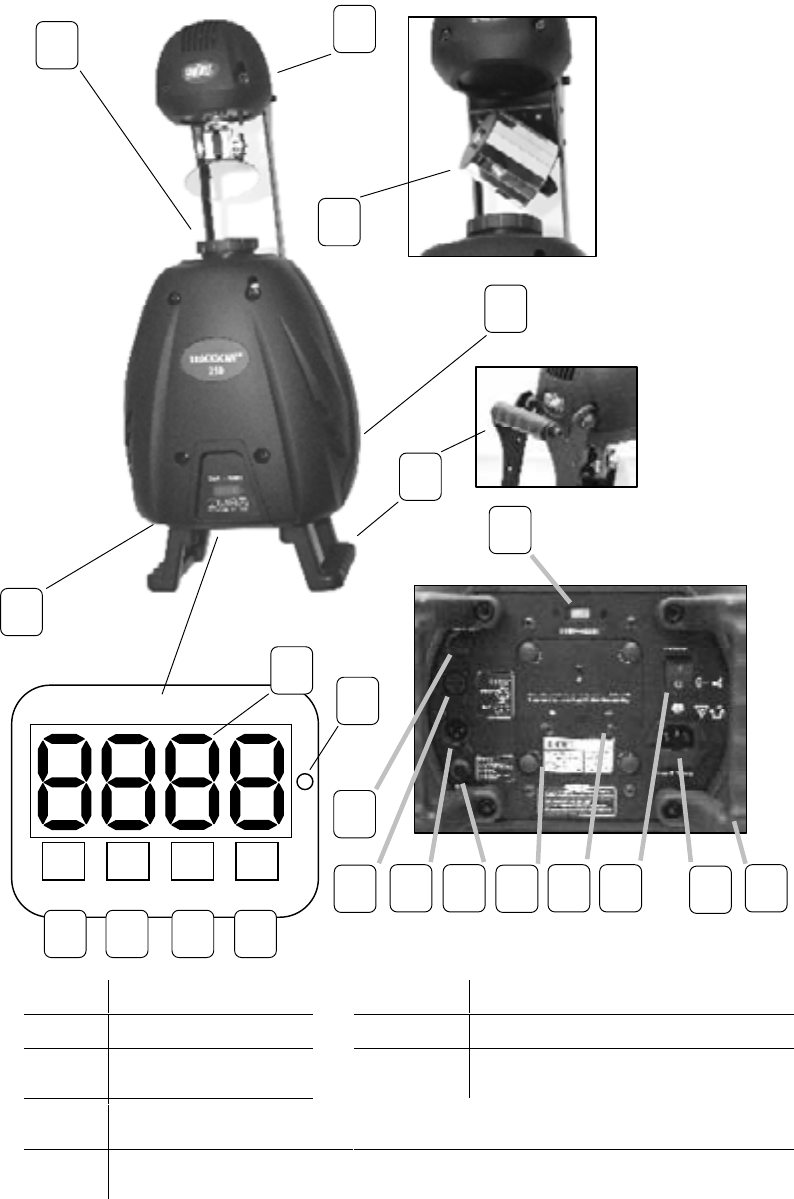

Product Overview
Control Board
Enter
Choose Up Down




SEGMENT BUTTONS I/O PANEL OVERVIEW
BUTTONS I/O PANEL
Choose
Toggles menu functions
DMX Out & In
DMX-512 connectors
Down
Steps backward through menu
functions
Power
AC input IEC 60320 C14 and fuse holder
Up
Steps forward through menu
functions
Enter
Confirms selected menu
function
1
1. Scanner head
2. Projector
3. Base
4. Carrying handles and
removable floor stands
5. Fan (bottom rear)
6. LED power indicator
7. LED display
8. [Enter] button
9. [Choose] button
10. [Up] button
11. [Down] button
12. DMX output
13. DMX input
14. Internal microphone
15. AC input IEC 60320 C14
16. Fuse holder
17. Power switch
18. Voltage switch
19. Music Sensitivity Knob
20. Lamp access plate
21. Lamp optimizing
22. Barrel scanner
2
3
4
12
13
20
21
19
17
6
7
8 9 10 11
5
14
15
16
18
4
22
