Installing Liberty UHX Pedestals: Electrical and Network Wiring 3-4

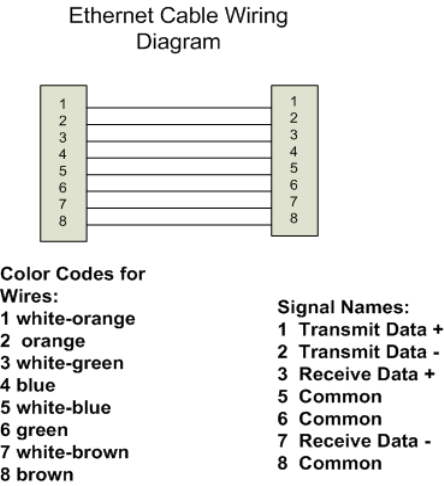

• Blue pair and brown pair are not used.
2 Target Technician tests the CAT 5 cable for network connectivity.
3 Checkpoint contractor back-fills floor trench (over top of wiring).
Wiring for employee entrance pedestal
Currently there are 2 antenna pedestals at the employee entrance. These 2 pedestals are
replaced by one single Liberty UHX pedestal to be installed near the wall that contains the
power supply. The following wiring instructions only apply to one pedestal.
The following tasks should be completed by Target IT staff prior to the start of the
installation by Checkpoint Technicians.
1 Target Technician runs CAT 5 cables from the homerun area and terminates at the
power supply with appropriate length.
2 Target Technician installs router and network connection near both shelves.
The following tasks are completed on the installation date by a Checkpoint Technician and
a Checkpoint contractor.
1 Checkpoint contractor runs CAT 5e network cable into a 0.5” PVC conduit to run from
power supply to floor.
2 Checkpoint Technician inserts wiring into 1.00" PVC conduit to run from ceiling to
floor. This PVC conduit is recommended, but is not electrically required. The factory
installed connector should remain at the portion of the PVC pipe nearer the ceiling.
Fish the rest of the cable through the PVC pipe towards the floor.
3 Checkpoint Technician runs necessary power cable to the junction box at the foot of
the pedestal.
4 Checkpoint Technician crimps power wires into a connector.
5 Checkpoint Technician runs CAT 5e cable to junction boxes at the foot of each
pedestal.
