Installing the pedestal
Once the wiring is completed, you are ready to install the actual Liberty UHX pedestal.
New anchor bolt holes are only required if the legacy pedestals are QS2000s. The bolt
locations for the QS2000 were closer together than those of the Strata PX and Liberty PX.
Since the bolt hole locations for the Strata PX and Liberty PX are identical to those of the
Liberty UHX, the existing bolts can be reused.
1 For replacement of QS2000 pedestals only, Checkpoint Technician drills new holes
and installs anchor bolts.
2 If larger raised base plates are used, cut the floor mats or existing flooring material to
accommodate the larger raised base plates (Checkpoint contractor).

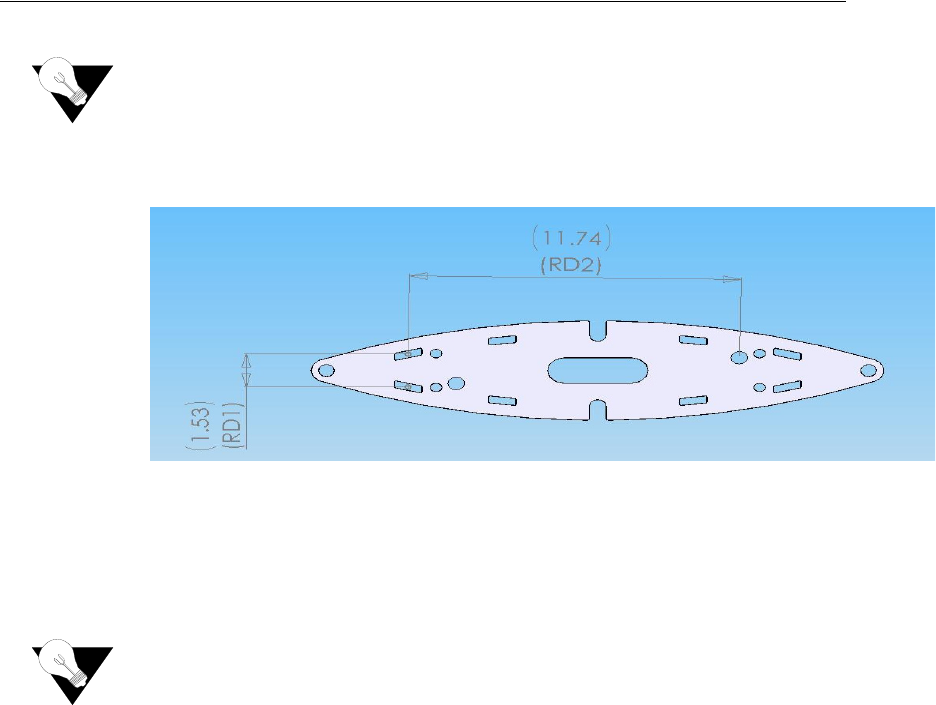

In certain instances, longer and wider raised base plates are required. This varies by store
location.
3 Checkpoint contractor repairs flooring.
It may be necessary to install new flooring or replacement mats due to cuts and holes
(from the previous pedestals).
4 Checkpoint Technician bolts down the raised base plate assembly to the previously
installed anchor bolts.
