Installation instructions

Installation Instructions Model: FTP-Series
3
ASSEMBLY AND INSTALLATION
Mount Assembly
FTP-230 Assembly
To assemble the FTP-230:
1. Assemble pole (60) to base (40) using one 3/8-16 x 1"
FHCS (90). (see Figure 2)
Figure 2: Assemble Pole to Base
2. Place front pole clamp, with Centris Head, (210)
against pole in approximate mounting location.
3. Place three BHCS (230) into rear pole clamp (220)
and place against pole aligning with front pole clamp
(210). (see Figure 3)
4. Secure rear pole clamp (220) to front pole mount
(210) and pole by tightening three BHCS (230) using
5/32" hex key (120). (see Figure 3)
Figure 3: Mount Centris Head with Pole Clamp
(60)
(140)
(40)
(90)
(210)
(60)
(220)
(230)

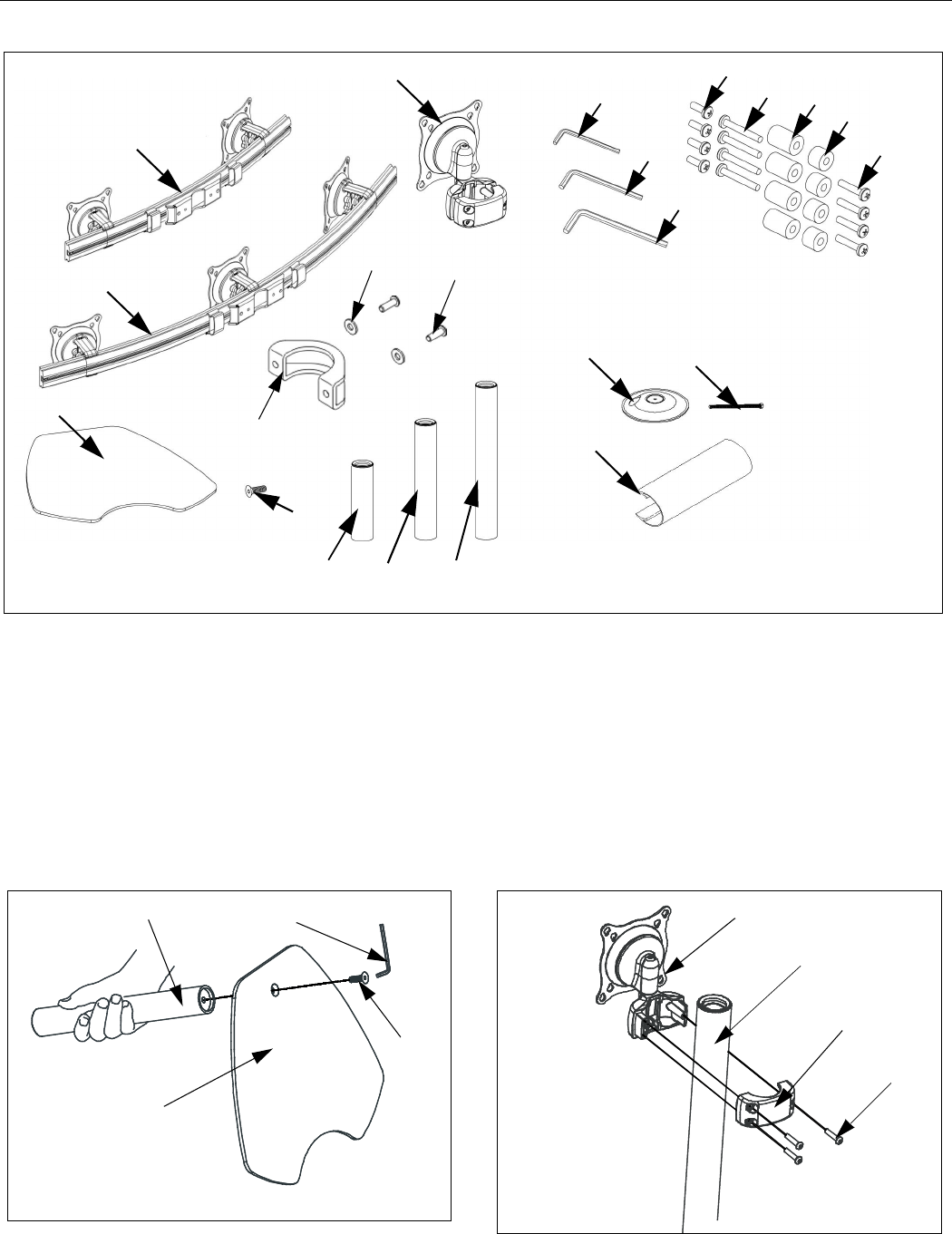

Figure 1: Parts
(10 Includes 210, 220, 230)
(20)
(30)
(40)
(50)
(60)
(70)
(80)
(90)
(100)
(110)
(120)
(130)
(140)
(160)
(170)
(180)
(190)
(200)
240
250
260
