1 - 10 System Map: LCD Panel Open - Model B
Quick Start Guide
1

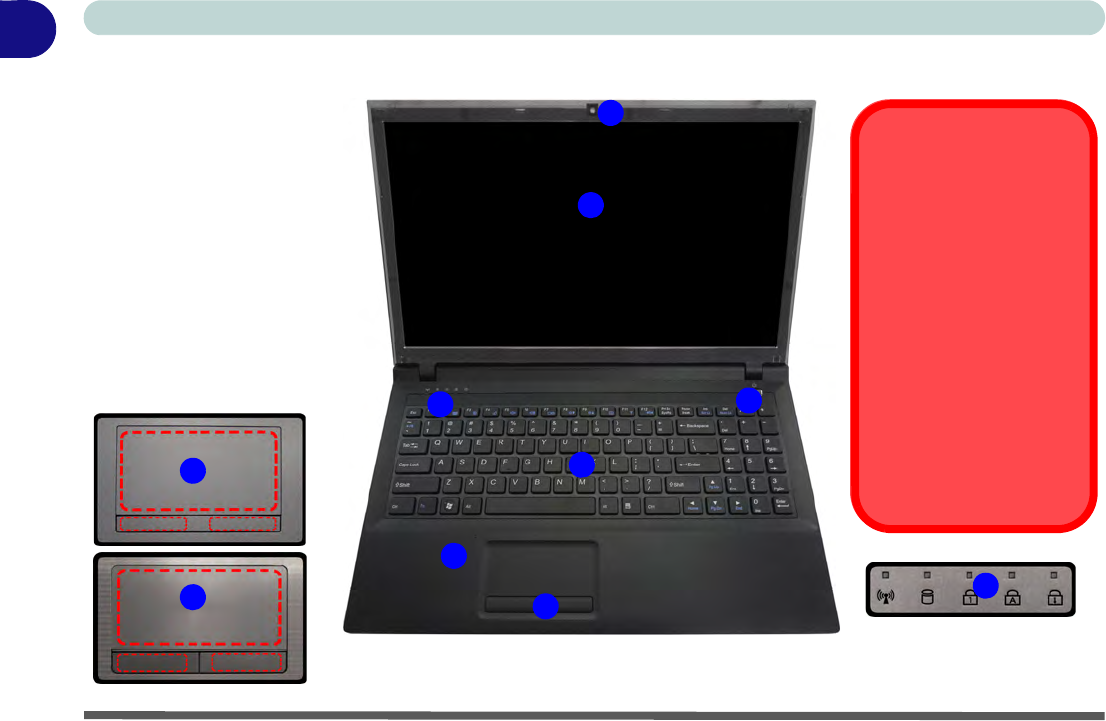

System Map: LCD Panel Open - Model B
Figure 1 - 5
LCD Panel Open
Model B
1. Built-in PC Camera
(
Optional )
2. LCD
3. Power Button
4. LED Status
Indicators
5. Keyboard
6. Built-In Microphone
7. Touchpad &
Buttons
7
7
2
4
1
6
7
3
5

Wireless Device
Operation Aboard
Aircraft
The use of any portable electronic
transmission devices aboard air-
craft is usually prohibited. Make
sure the module(s) are OFF if you
are using the computer aboard
aircraft.
Use the key combinations to tog-
gle power to the 3.75G/HSPA/
WLAN/Bluetooth modules, and
check the LED indicator or on-
screen icon to see if the modules
are powered on or not (see
Table 1 - 6, on page 1 - 18/
Table 1 - 2, on page 1 - 12).
Note that the Touchpad and Buttons valid operational area is that indicated within the red dotted lines
indicated on the right.
