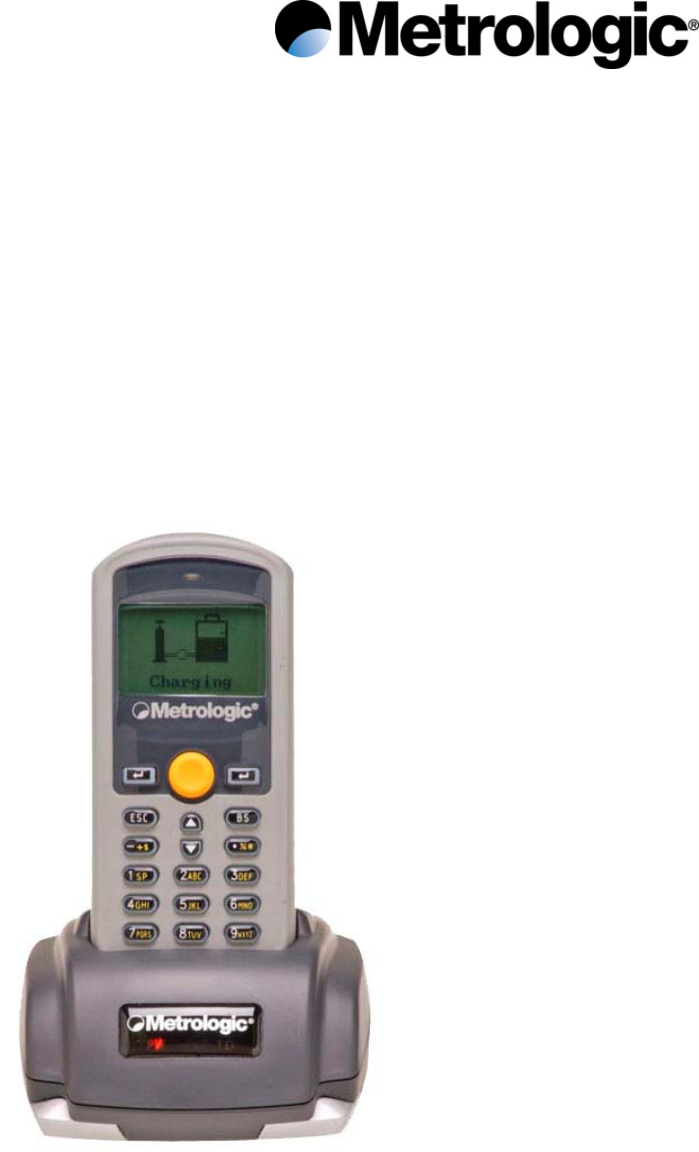

Introduction Product Overview The SP5500 Optimus S Portable Data Terminals are robust and versatile data terminals designed to provide exceptional performance, while enduring the demands of everyday use. The lithium-ion rechargeable battery provides the Optimus with more than 100 hours of operation. It is supported by a resourceful set of development tools. That includes a Windows-based application generator, “C” compiler, and “Basic” compiler.
Scanner and Accessories METROLOGIC PART NUMBERS.
General Features and Characteristics 1 4 9 5 2 3 8 7 Figure 1. Scanner Features ITEM NO. Figure 3 Product Label DESCRIPTION 1 Red Output Window (Laser Aperture) 2 Safety and Product label (Figure 3) 3 Speaker for audible indicators 4 LCD display 5 Multi-functional Keypad 6 Charging and communication contacts 7 IrDA Communication port 8 Battery Compartment release 9 Scan Button 1 Figure 4 Optimus and Cradle F 2 3 4 5 Figure .2.Cradle Features ITEM NO.
Multifunctional Keypad 4 5 6 3 7 2 8 1 Figure 5.Cradle Features ITEM NO. KEY NAME 1 POWER 2 ALPHANUMERIC 3 ENTER 4 SCAN 5 ESC 6 BS 7 ARROW DESCRIPTION Power On/Off. To prevent a faulty push, it needs about 1.5 sec of continuous pressing to turn On/Off the power. Alphanumeric These 10 keys can be used for either alpha characters or numerical input. (See Item 8 for further description of key operation) Enter. There are two enter keys on the side of the scan key.
KEY NAME ITEM NO. ALPHA() 8 FUNCTION(FN) DESCRIPTION The toggle key for Alphabet / Numeral input. When the system is in alpha-mode, a small icon will be shown in the lower right corner of the display. For the 24-key keyboard, each numeric key can be used to generate one of the three capital letters located on that number key. For example, numeral 2 can be used to produce A, B, or C. Pressing the same key twice within one second, will produce the letter B.
Installation Getting Started The Optimus S Portable Data Terminal (PDT) requires minimal effort to begin functional operation for data collection in any application. In order to get started the unit must have a fresh battery inserted into the battery compartment. 1. Access the battery compartment by removing the battery cover (See Figure 7). To remove the cover, press the cover release down and slide the cover away form the unit. 2.
Basic Operation In order for the Optimus to operate properly, an application program must be loaded onto the PDT. If upon power up the Optimus has no application program loaded, then the following Application Manger menu options will appear on the display: MENU OPTIONS. Download Activate Upload DESCRIPTION This option allows the user to download application programs (*.SHX), BASIC run-time (bas.ops.shx), BASIC programs (*.SYN) or font files to the terminal.
3. For the USB cable plug the USB end of the cable into an appropriate communication port on the host device and the opposite end of the cable into the communication port of the cradle. 4. Power up the Optimus and select the Utlities option. 5. This will open additional menu options. Select the Transfer Files option. 6. Select Get Program on the next menu. The unit is now ready to download an application program. 7. Place unit in cradle and download the appropriate application program. 8.
System Settings and Operation Tests Depending on the application program that is active on the Optimus, there are number of settings and options that may be selected for both setup and testing. The table shows a number of those settings and their descriptions. SETTING Clock Backlight ON Period CPU Speed Powering Off the Terminal Power On Options Key Click System Password DESCRIPTION Set date and time for the system. Set the duration for the keyboard/LCD backlight Set CPU running speed.
Application The Application module runs on top of the System module. The Optimus S Series Portable Data Terminals are preloaded with the Application Generator’s run-time program and the following menu will be shown upon powering the unit up: Batch model (SP5501, SP5502): 1. Run Program 2. Utilities Bluetooth models (SP5535) 1. Take data 2. Utilities Utilizing the arrow keys select the menu option and execute it by pressing the ENTER key.
Troubleshooting SYMPTOM DESCRIPTION Make sure the battery is loaded. Does not power up after pressing POWER key. Charge the battery and check the charging status. If no charging information shown on the display, reload the battery and check if the battery is properly installed then try again. Call for service if problem persists. Cannot transmit data or programs via the terminal’s communication port.
Specification OPTIMUS S SERIES OPERATIONAL Light Source: Normal Depth of Field: Width of Scan Field: Visible Laser Diode (VLD) @ 650 nm 20 mm - 202 mm 0.33 mm (13 mil) (.75"- 8.75") bar code 290mm (11.4”) @ 222 mm (8.75”) Single-Line Scan Speed: No. of Scan Lines: Min Bar Width: Decode Capability: System Interfaces: Print Contrast: No. Characters Read: Beeper Operation: CPU: Program Memory: Data Memory: Display: 100 scan lines per second 1 0.127 mm (5.
OPTIMUS S SERIES MECHANICAL Width (Unit): 55 mm (2.2") Depth (Unit): 28 mm (1.1") Height (Unit): 137 mm (5.4") Weight (Unit): 4.9 oz (140 g) – including battery Width (Cradle): 92 mm (3.6") Depth (Cradle): 110 mm (4.3") Height (Cradle): 58 mm (2.3") ELECTRICAL Battery Operation: Battery Backup: Operation: Laser Class 1: EMC: Li-ion 3.
Contact Information and Office Locations CORPORATE HEADQUARTERS NORTH AMERICA USA, New Jersey Metrologic Instruments, Inc. Tel: 1-800-ID-METRO Fax: 856-228-6673 Email: info@metrologic.com EUROPEAN, MIDDLE EAST & AFRICAN HEADQUARTERS Germany, Munich Metrologic Instruments GmbH Tel: 49-89-89019-0 Fax: 49-89-89019-200 Email: info@europe.metrologic.com SOUTH AMERICA AND CENTRAL AMERICA Brazil São Paulo Metrologic do Brasil Ltda. Tel: 55-11-5182-8226 Fax: 55-11-5182-8315 Email: info@br.metrologic.
Safety Notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
