CS5581
22 DS796PP1
3/25/08
14:34

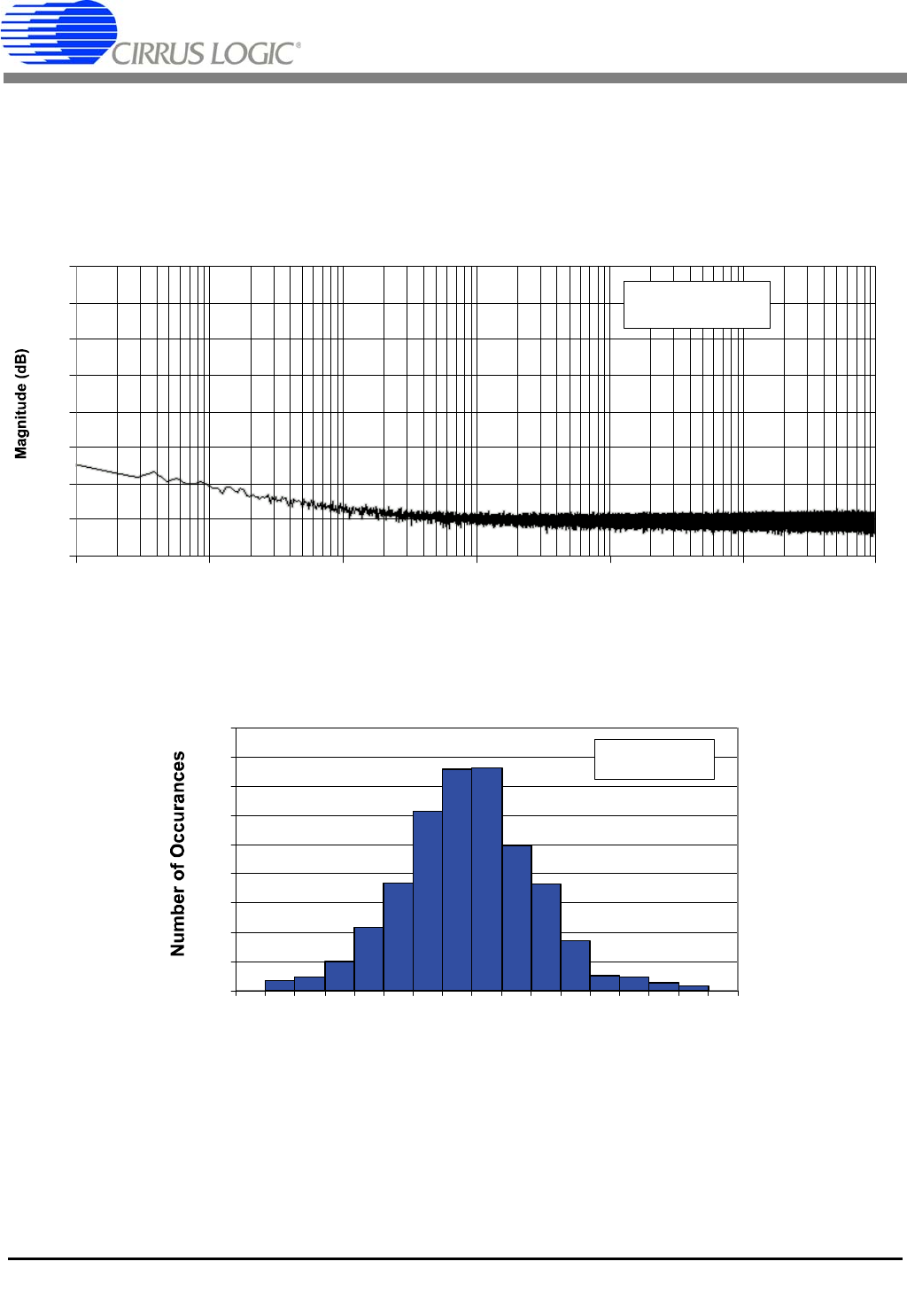

Figure 16 illustrates the noise floor of the converter from 0.1 Hz to 100 kHz. While the plot does exhibit
some 1/f noise at lower frequencies, the noise floor is entirely free of spurious frequency content due to
digital activity inside the chip.
Figure 17 illustrates a noise histogram of 4096 samples.
-160
-140
-120
-100
-80
-60
-40
-20
0
0.1 1 10 100 1k 10k
100k
Frequency (Hz)
Shorted Input
2M Samples @ 200 kSps
16 Averages
Figure 16. Spectral Plot of Noise with Shorted Input
0
100
200
300
400
500
600
700
800
900
-8-7-6-5-4-3-2-1012345678
Mean = -0.61
Std. Dev = 2.33
Output (Codes)
Figure 17. Noise Histogram (4096 Conversions)
