Ceiling Installation Guide

Summary of content (7 pages)

PAGE 1
.800.860.7466 Notice Wireless LAN Enclosure for Cisco Aironet 1200 Ceiling Installation Guide © Copyright Champion Computer Technologies 2003. All rights reserved. All other trademarks mentioned in this document are the property of their respective owners. UPGRADING THE NETWORK WORLD™ 23400 Mercantile Road, Suite 2 Beachwood, Ohio 44122 Phone: 216-831-1800 Fax: 216-831-2541 Email: sales@cctupgrades.com www.cctupgrades.
PAGE 2
Table of Contents Description Description Parts List Tools Needed Installation Obtaining Technical Assistance Terms & Conditions Return Procedures The WLANE-C is a secure, rugged, and lightweight (less than 9 lbs.) enclosure for ceiling mount installations of Wireless Access Points. It offers security for both 802.11a and b installations now, and in the future through user upgradeable attachments.
PAGE 3
Part Lists for Ceiling Installation Table 1 Tools Needed for Installation of the WLANE-C WLANE-CBD • 802.11b Dipole Includes •WLANE Chassis •Locking Baffle 802.11b •Grommets (2 pcs.) •Dipole Cable Extender Kit •2' T, T-Screws, Wire CCT Upgrades P/N •WLANE-DIPOLE •HARNESSWLC •CBA Description of Upgrade •11b Dipole Antenna •Locking Wire Harness •11a, 11b Plain Baffle WLANE-CBO • 802.11b Omni Includes •WLANE Chassis •Locking Baffle 802.
PAGE 4

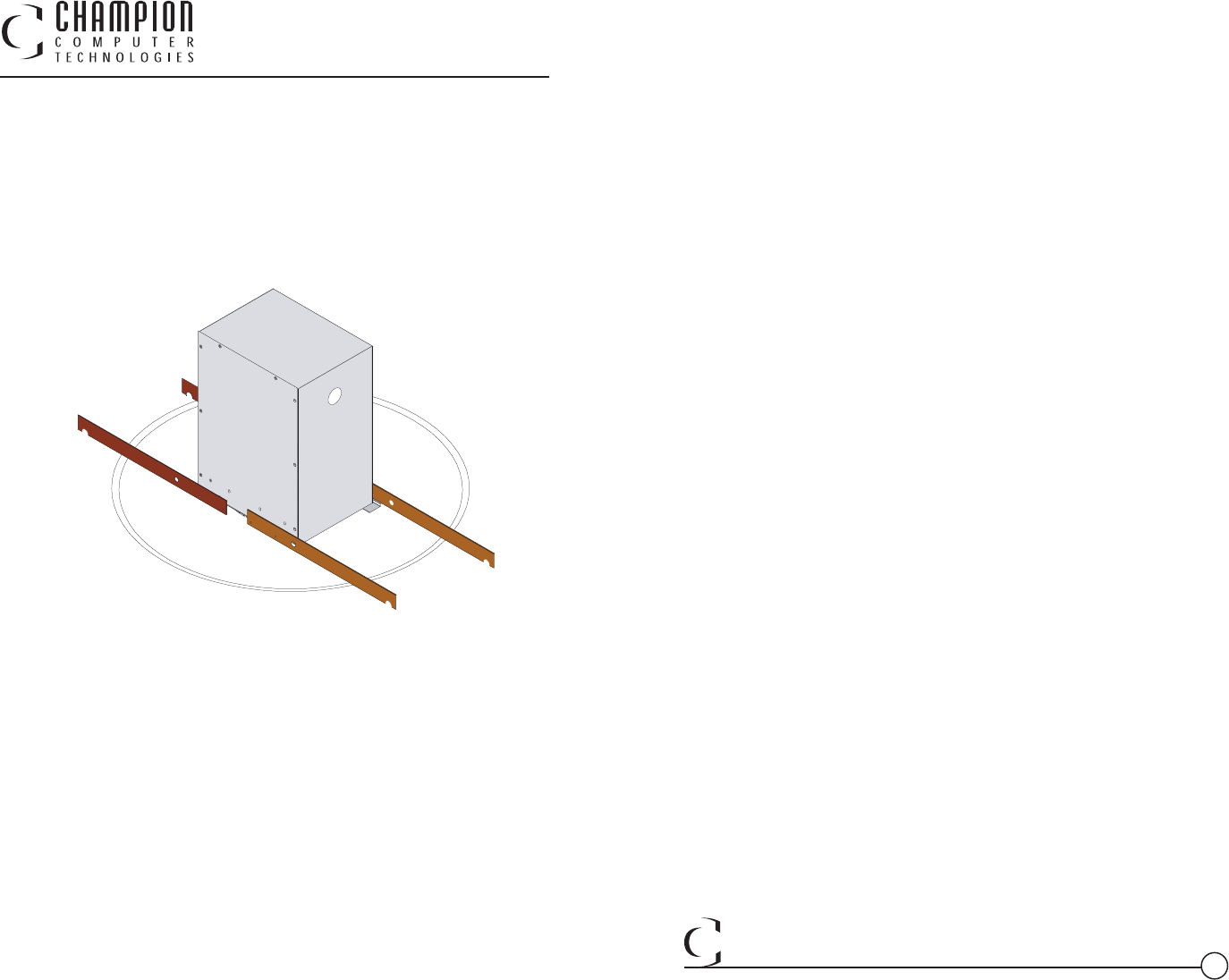

Installation of the WLANE-C Installation of the WLANE-C Step 1: Unpack the box, check for all components. Step 2: Make sure the Enclosure is on a level surface. Extend T-bars and adjust them to 3/4" from the bottom of the T. See figure 1. If the Enclosure is not at proper height, adjustments can be made by loosening and moving the T bars to the appropriate height. Step 5: Place enclosure through the hole and make sure the Tbars are resting on the Ts. See figure 3.
PAGE 5
Installation of the WLANE-C Installation of the WLANE-C Step 9: Mount Access Point on upper mounting holes. See figure 7. Step 7: Install Ethernet cable, secure using cable ties. See figure 5. Upper Three Holes Figure 7 Step 10: Attach dipole or omni antennas to cable extenders. Let them dangle out of the box. See figure 8. Figure 5 Step 8: For 802.11a only, skip to Step 9. For 802.11b, attach included cable extenders to 802.11b connectors on your Access Point. See figure 6.
PAGE 6
Installation of the WLANE-C Obtaining Technical Assistance Step 13: Attach the locking baffle place on the end with a Z shaped join, then push up on the end with the two posts. You may have to push the tile up to get the Z shaped join to sit correctly. Not all tiles are the same thickness, nor are the heights of the T Frame. See figure 12. (802.11a) Figure 12 SPECIFICATIONS Materials Aluminum and steel case with coaxial cable, plenum approved. Size 8" x 11" x 6" Weight 9 lbs.
PAGE 7
Terms & Conditions Return Procedures Warranty One year Limitations Not covered under the warranties are: failures due to accident, misuse, abuse, neglect, improper installation, product modification, or unauthorized repair or attempted repair, or shipping damage. CHAMPION HEREBY DISCLAIMS ANY AND ALL EXPRESSED OR IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURCHASE HOWEVER ARISING.
