User Guide

WLANE-C Installation
WLANE-C Installation
10
11

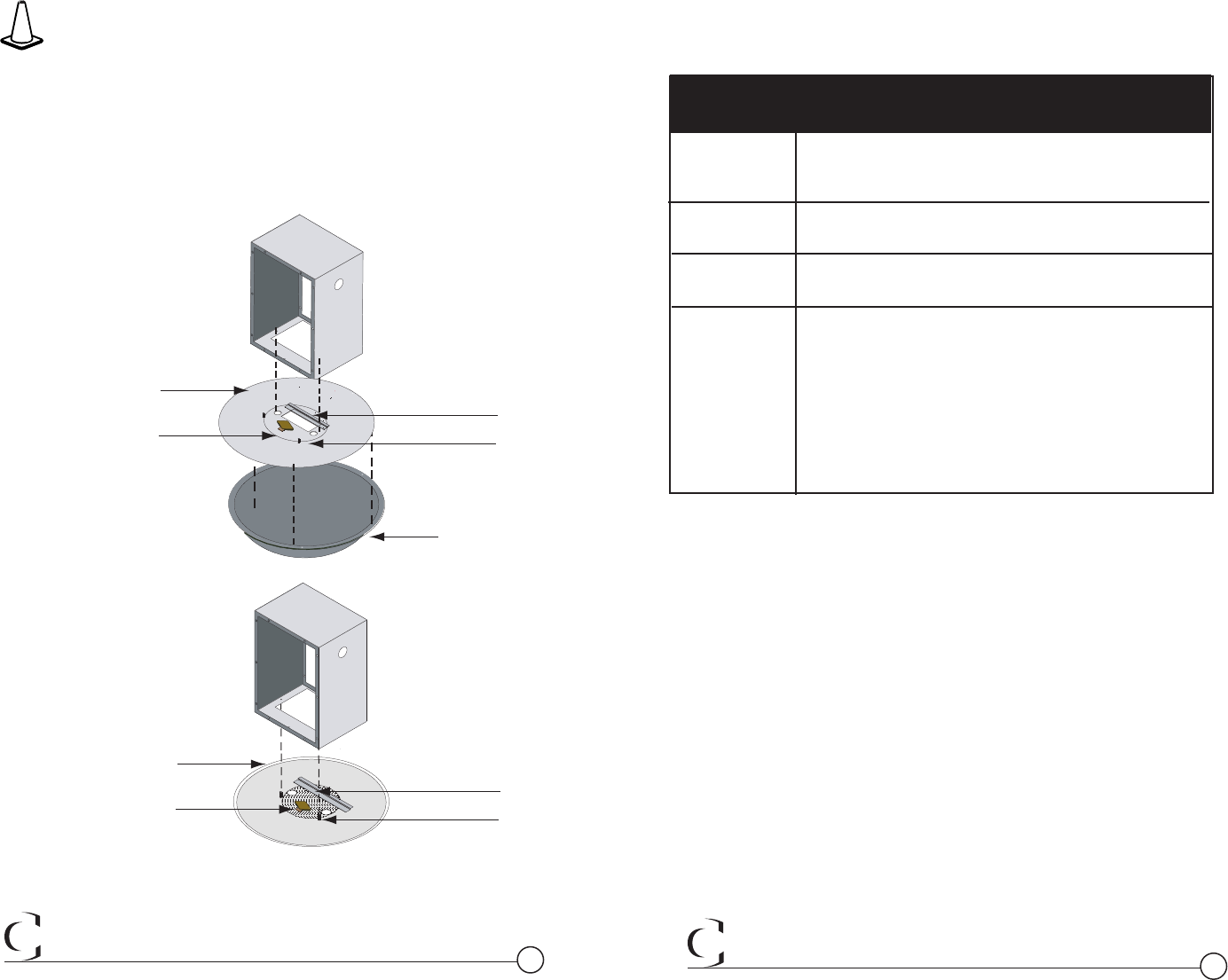

Step 13: Attach the locking baffle place on the end with a Z
shaped join, then push up on the end with the two posts. You
may have to push the tile up to get the Z shaped join to sit
correctly. Not all tiles are the same thickness, nor are the
heights of the T Frame. See figure 12.
Step 14: Lock. Attach security bubble to 802.11a
Baffle
(802.11a)
(802.11b)
Figure 12
Figure 11
Post
Z Join
Lock
Baffle
Lock
Post
Z Join
Security Bubble
 Installation of the WLANE-C
Materials


Size

Weight

Mounting Kit
Aluminum and steel case with coaxial cable,
plenum approved.
8" x 11" x 6"

9 lbs. (not including access point or antenna)

Includes 802.11 network cable extenders for
dipole and omni antennas, metal T Bars to
accomodate modified tile, adjustable holes
for dipole or omni antennas. Separate
Locking Baffles accomodate 802.11a or
802.11b. Locking Kit provides universal key.
SPECIFICATIONS
Obtaining Technical Assistance
Tech Support

Phone: [phone] ext. 2
Email: [e-mail]

Champion provides installation suppport on the WLANE
products. We do not support Aironet 1200 configuration.
