17-38
Cisco ONS 15600 Procedure Guide, R8.0
Chapter 17 DLPs E100 to E199
DLP- E145 Connect the PDU Ground Cables to the PDU
Note A shunt is preinstalled between logic and frame ground to bond the two grounds. If you are
providing a separate logic ground, remove this shunt on both sides before installing the PDU
frame ground.

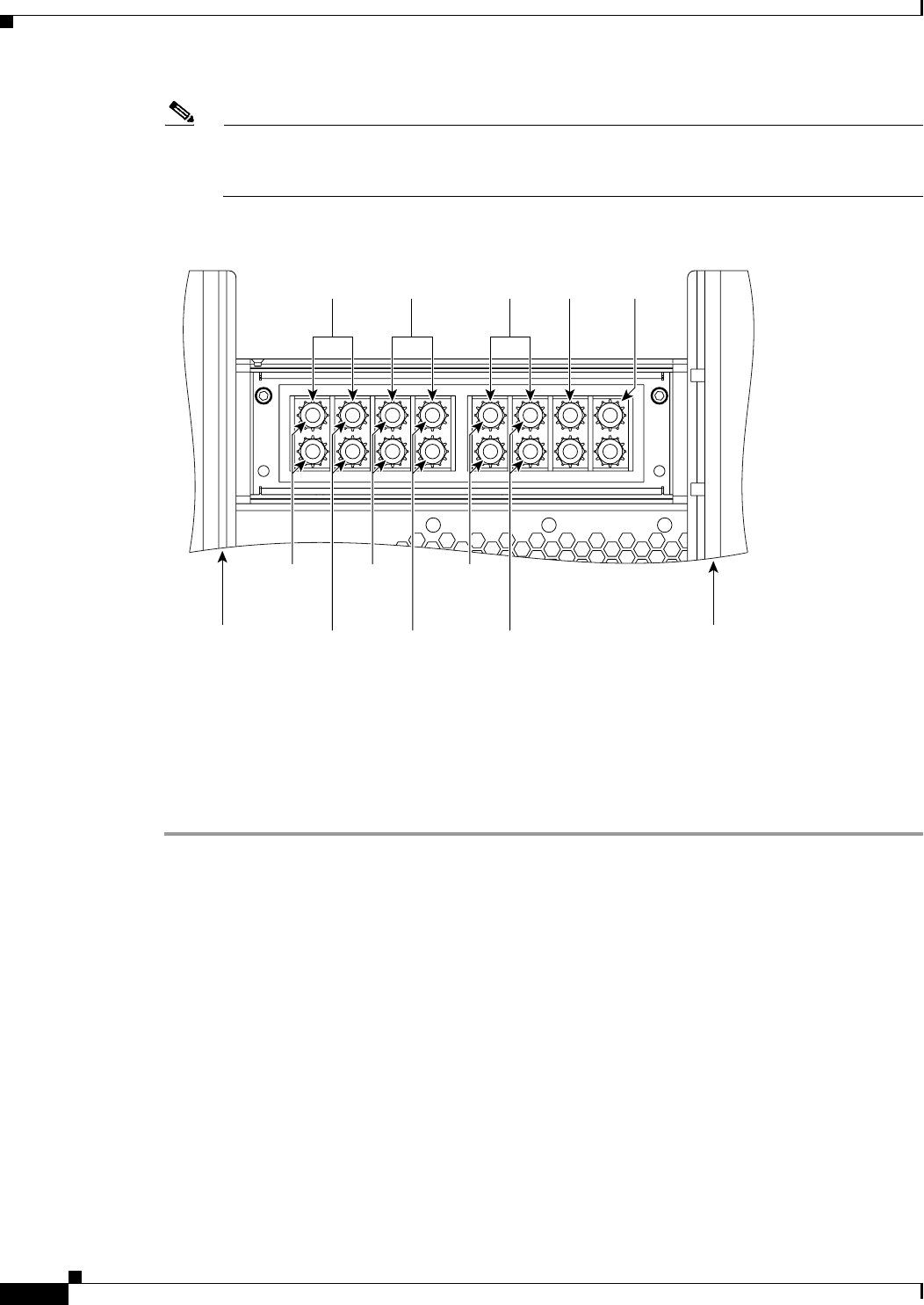

Figure 17-5 Power Terminal Block (Right Side Shown)
Step 2
Tighten the nuts to 36 in-lb.
Step 3 Repeat Steps 1 and 2 for the left side of the PDU.
Step 4 Replace the PDU safety covers.
Step 5 Return to your originating procedure (NTP).
78396
Bottom
Shelf
Center
Shelf
To p
Shelf
Logic
Ground
Frame
Ground
Supply
power
lugs
Return
power
lugs
Supply
power
lugs
Return
power
lugs
Supply
power
lugs
Return
power
lugs
Bay rearBay front
