Understanding Line and Call Icons
Your phone displays icons to help you determine the line and call state.

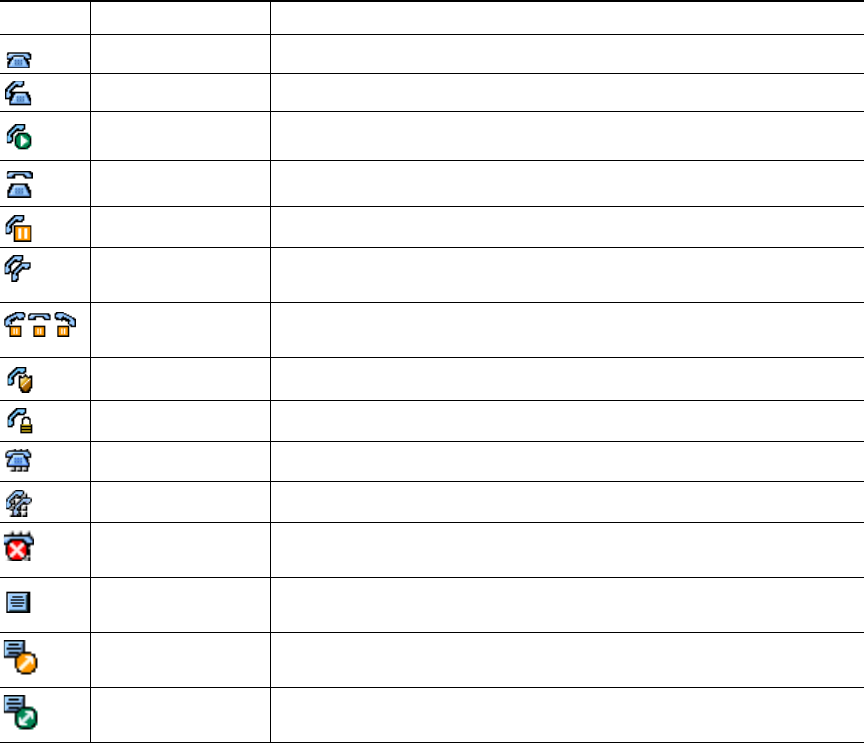

Icon Line or call state Description
On-hook line No call activity on this line.
Off-hook line You are dialing a number or an outgoing call is ringing.
Connected call You are connected to the other party.
Ringing call A call is ringing on one of your lines.
Call on hold You have put the call on hold. See Using Hold and Resume, page 20.
Remote-in-use Another phone that shares your line has a connected call. See Using
a Shared Line, page 35.
Reverting call A holding call is reverting to your phone. See Using Hold and
Resume, page 20.
Authenticated call See Making and Receiving Secure Calls, page 38.
Encrypted call See Making and Receiving Secure Calls, page 38.
Idle line (BLF) See Using BLF to Determine a Line State, page 38.
Busy line (BLF) See Using BLF to Determine a Line State, page 38.
Line in Do Not
Disturb (BLF)
See Using BLF to Determine a Line State, page 38.
Idle Intercom line The intercom line is not in use. See Placing or Receiving Intercom
Calls, page 30.
One-way intercom
call
The intercom line is sending or receiving one-way audio. See Placing
or Receiving Intercom Calls, page 30.
Two-way intercom
call
The recipient pressed the intercom line to activate two-way audio
with the caller. See
Placing or Receiving Intercom Calls, page 30.
Understanding Touchscreen Features
This is what your main touchscreen might look like with active calls and several feature menus open.
