Chapter 8 NMT Map
Deleting Groups
Deleting Groups
To delete a group, perform the following steps:
Step 1 Select Groups from the Main Menu.
Step 2 Select Delete from the Groups Menu. The cursor will change to a skull and crossbones.
Step 3 Select the group you want to delete and click the left or right mouse buttons. A dialog box appears
(Figure 8-13).
Step 4 Click OK. The box disappears.

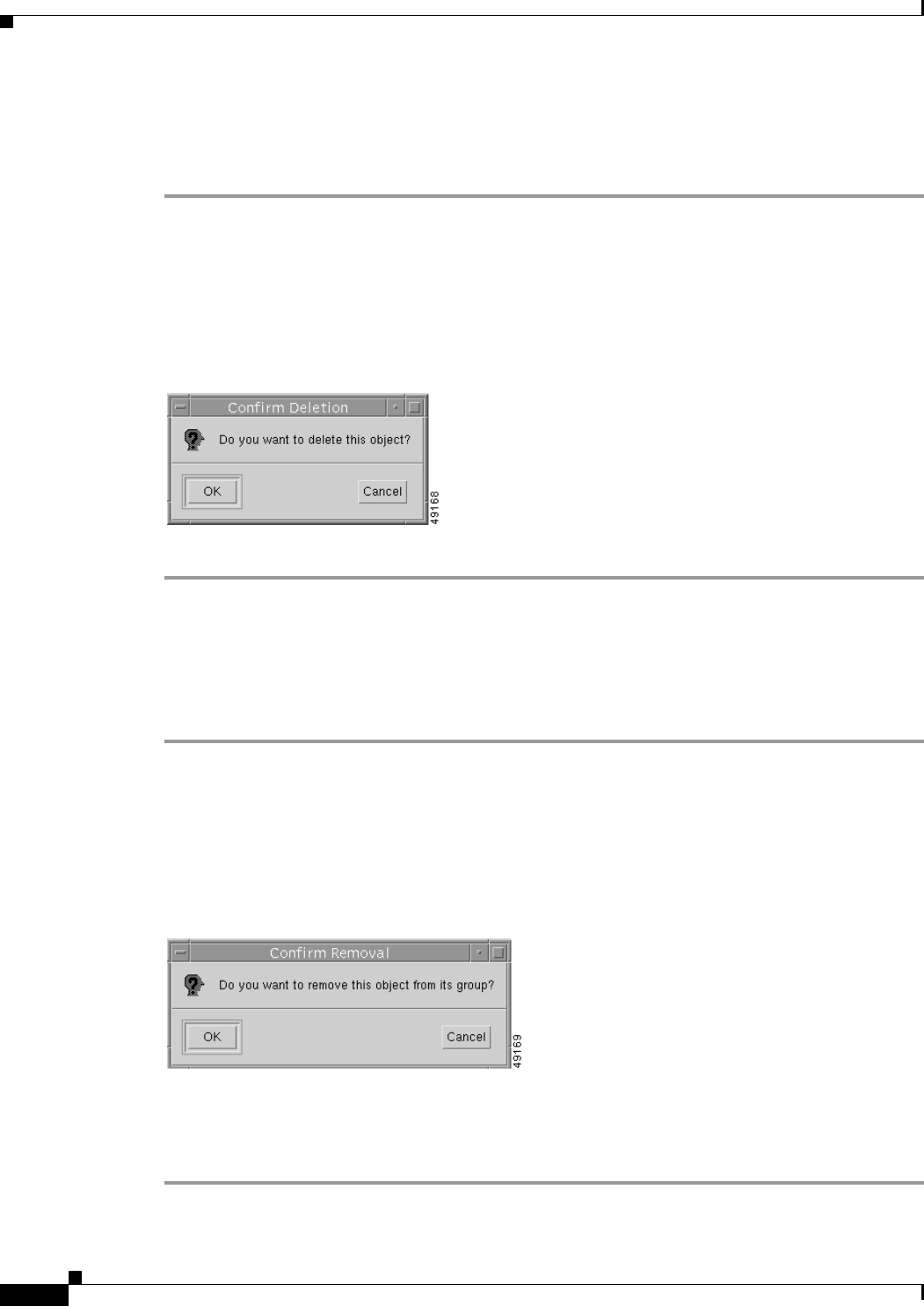

Figure 8-13 Confirm Deletion Dialog Box
On the map display, the group icon and name disappear, and all the original nodes and links are restored.
Deleting Nodes or Groups from Existing Groups
To delete a node or groups from existing groups, perform the following steps:
Step 1 Select Groups from the Main Menu.
Step 2 Select Delete from the Groups Menu. The cursor will change to a skull and crossbones.
Step 3 Select the group you want to delete and click the left or right mouse buttons. A dialog box appears
(Figure 8-14).
Step 4 Click OK. The box disappears.
Figure 8-14 Confirm Deletion From Group Dialog Box
On the map display, nothing appears to happen. However, when you click the right mouse button on a
group to navigate up the hierarchy, you hear an audible beep. When you click the right mouse button on
other nodes in that group, the map closes the group and displays the next highest logical node. The node
you deleted is also displayed because it is no longer a part of the group (Figure 8-15).
