Chapter 4 Configuration Tables and Fields
Sites Table
Sites Table
The sites table contains information about all sites in your network. All other tables using the sites field
rely on the information in this table. To display the sites table, select Site from the Configure menu. The
two most important fields of the site table are the site name and the node type field. The site name field
defines the label string of the site, and must be valid and unique. The node type field defines what kind
of switch is at this location.
Use the NMT Site Table to explicitly specify all feeder equipment in the MGX, BPX, and IPX products.
You can also provision feeders and additional routing IGX shelves as required by the connection
demand.

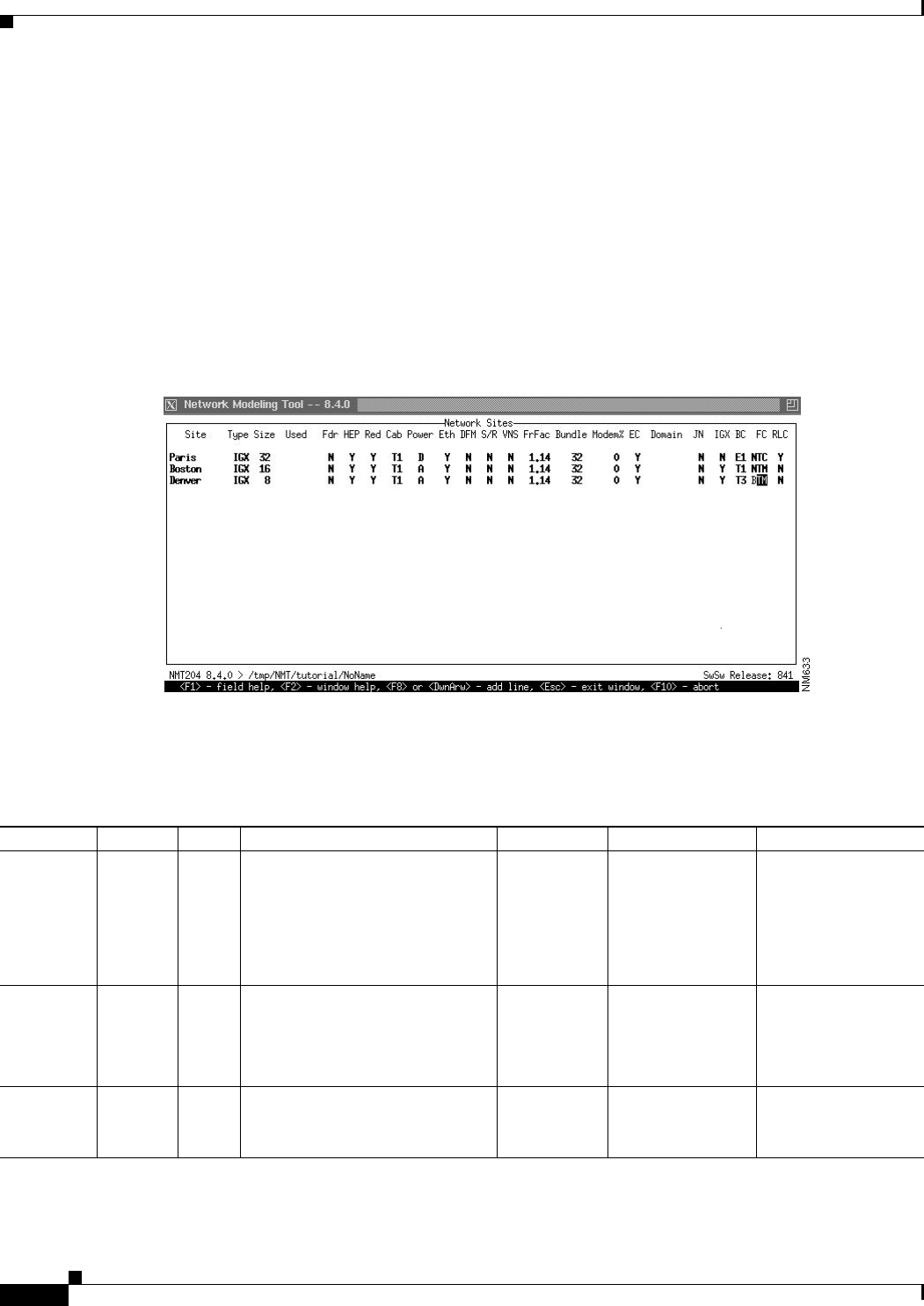

Figure 4-1 NMT Network Sites Table
The primary CWM data source for the site table is the node table. The primary WANDL data source and
target for the site table is the MUXLOC file.The Site Table fields are described in Table 4-1
Ta b l e 4 - 1 . S i t e Ta b l e
Field Defaults Notes Description and Comments DBF CET TPI
Site – M/H Site name (up to 10 characters).
Names are case sensitive. Keep
the names short and easy to
remember. This field must be
revised before you revise any
other fields or tables.
NAME *
Reduced to unique
10 char name if
longer than 10
chars.
Translated to both
Short name and Long
name*
Node Type IGX M/H Type of product (IGX, BPX,
MGX, IPX).
TYPE *
Limitations: IGX
not recognized
until Release 8.2.
nodeparam file
Type Used – X Protected field that shows the
size of the node after the NMT
builds a network.
n/a
