Cisco Unified IP Phone Administration Guide for Cisco Unified Communications Manager 8.5
OL-23092-01
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phones 7975G, 7971G-GE, 7970G, 7965G, and 7945G

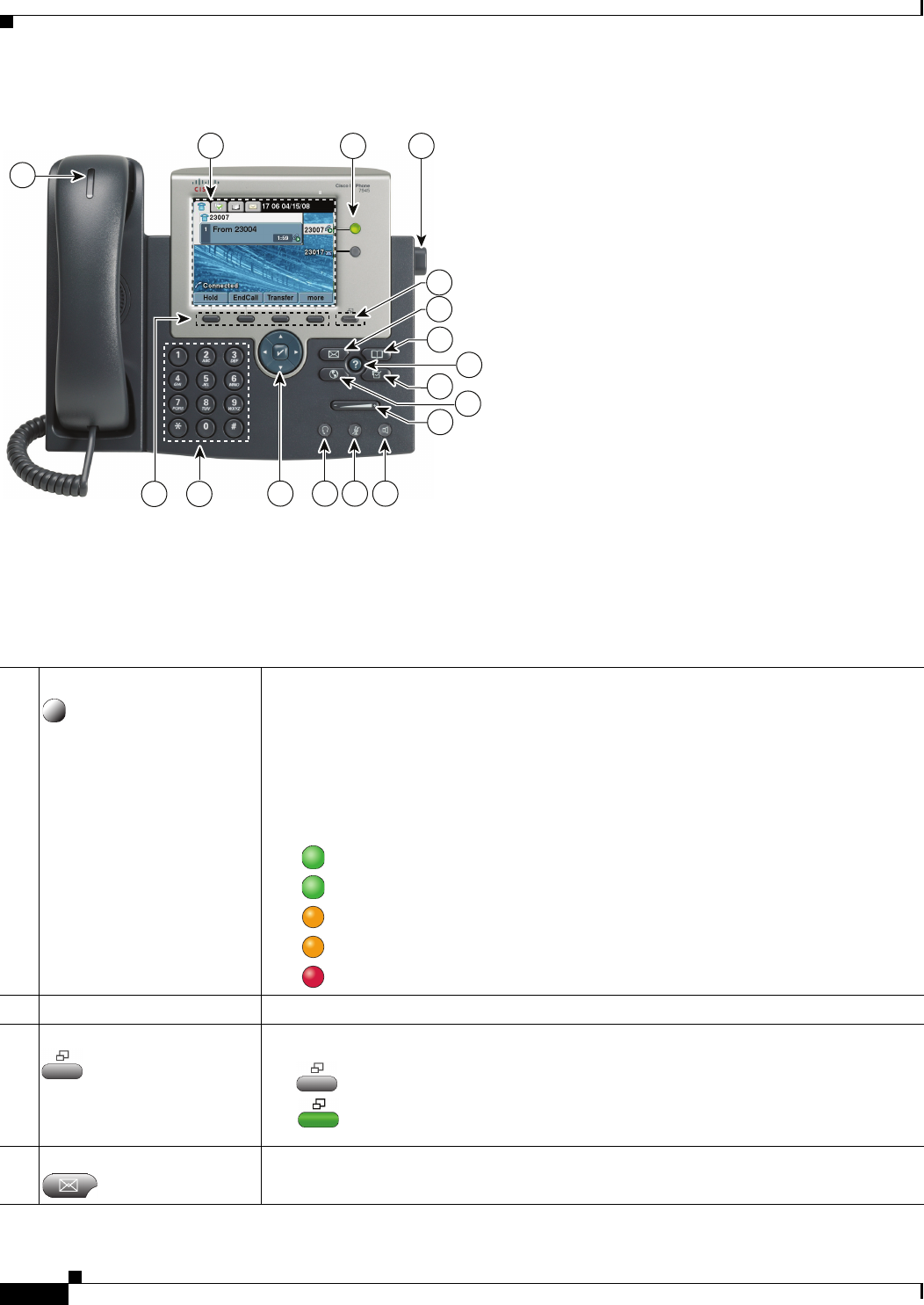

Figure 1-4 Cisco Unified IP Phone 7945G
Table 1-1 describes the buttons on the Cisco Unified IP Phone 7975G, 7971G-GE, 7970G, 7965G, and
7945G:
186421
4
3
5
6
7
9
101112131415
16
12
8
1
17
Table 1-1 Cisco Unified IP Phone Buttons
1 Programmable buttons Depending on configuration, programmable buttons provide access to:
• Phone lines (line buttons)
• Speed-dial numbers (speed-dial buttons, including the BLF speed-dial feature)
• Web-based services (for example, a Personal Address Book button)
• Phone features (for example, a Privacy button)
Buttons illuminate to indicate status:
Green, steady—Active call
Green, flashing—Held call
Amber, steady—Privacy in use
Amber, flashing—Incoming call
Red, steady—Remote line in use (shared line or BLF status)
2 Footstand adjustment button Allows you to adjust the angle of the phone base.
3 Display button Awakens the touchscreen or phone screen from sleep mode or disables it for cleaning.
No color—Ready for input
Green flashing—Disabled
Green steady—Sleep mode
4 Messages button Auto-dials your voice message service (varies by service).
