Understanding the Cisco Unified IP Phones 7975G, 7971G-GE, 7970G, 7965G, and 7945G

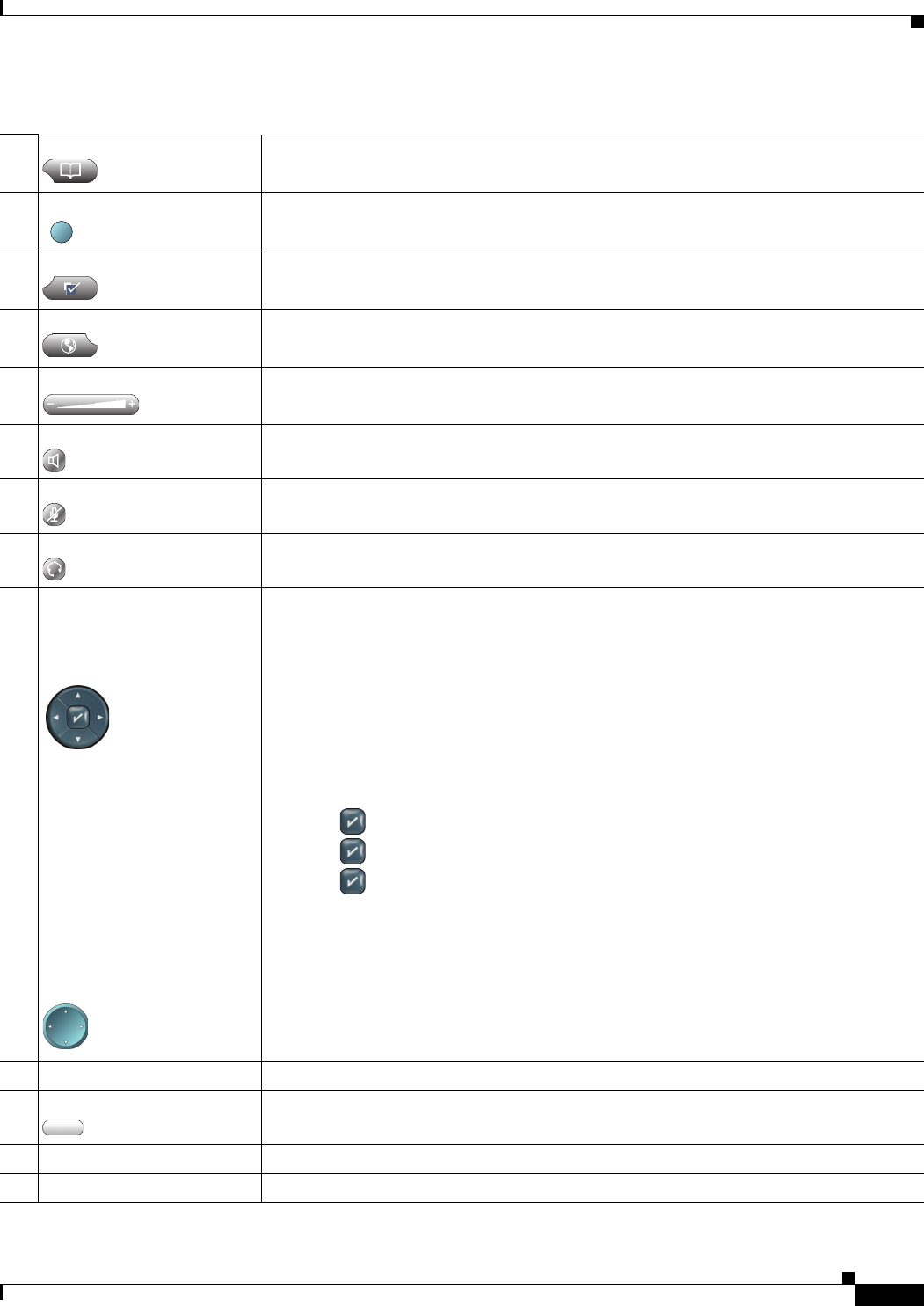

5 Directories button Opens/closes the Directories menu. Use it to access call logs and directories.
6 Help
button Activates the Help menu.
7 Settings button Opens/closes the Settings menu. Use it to change touchscreen (or phone screen) and ring
settings.
8 Services button Opens/closes the Services menu.
9 Volume button Controls the handset, headset, and speakerphone volume (off-hook) and the ringer
volume (on-hook).
10 Speaker button Toggles the speakerphone on or off.
11 Mute button Toggles the Mute feature on or off.
12 Headset button Toggles the headset on or off.
13 For Cisco Unified Phones
7975G, 7965G, and 7945G:
4-way navigation pad and
Select button (center)

For Cisco Unified Phones
7971G-GE and 7970G:
Navigation button
For Cisco Unified Phones 7975G, 7965G, and 7945G:

Allows you to scroll through menus and highlight items. Use the Select button to select
an item that is highlighted on the screen.
Navigation button
• Scroll up and down to see menus and highlight items.
• Scroll right and left to scroll horizontally in multi-column displays.
Select button—scroll to highlight a line using the Navigation button, and then:
• Press to open a menu.
• Press to play a ringer item.
• Press to access other features as described on the screen.
Note The Select button does not take action on all menu items.

For Cisco Unified Phones 7971G-GE and 7970G:

Allows you to scroll through menus and highlight items. When the phone is on-hook,
displays phone numbers from your Placed Calls log.
14 Keypad Allows you to dial phone numbers, enter letters, and choose menu items.
15 Softkey buttons Each activates a softkey option (displayed on your touchscreen or phone screen).
16 Handset light strip Indicates an incoming call or new voice message.
17 Touchscreen or phone screen Shows phone features.
Table 1-1 Cisco Unified IP Phone Buttons (continued)
?
