Chapter 3 Setting Up the Cisco Unified IP Phone
Adjusting the Placement of the Cisco Unified IP Phone

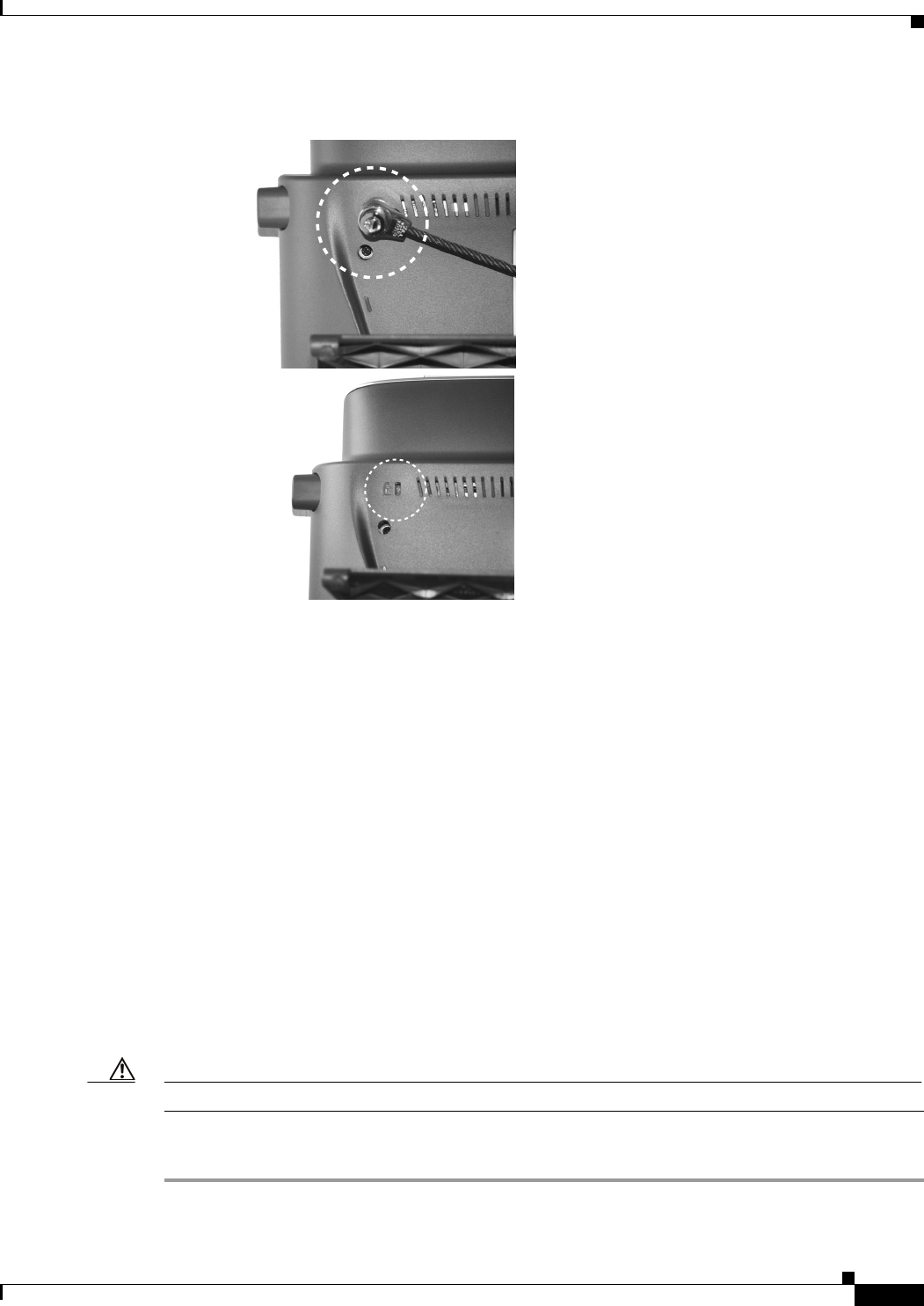

Figure 3-5 Connecting a Cable Lock to the Cisco Unified IP Phone 7971G-GE and 7970G
Mounting the Phone to the Wall
You can mount the Cisco Unified IP Phone on the wall by using the footstand as a mounting bracket or
you can use special brackets available in a Cisco Unified IP Phone wall mount kit. (Wall mount kits must
be ordered separately from the phones.) If you attach the phone to a wall by using the standard footstand
and not the wall mount kit, you need to supply the following tools and parts:
• Screwdriver
• Screws to secure the Cisco Unified IP phone to the wall
See Figure 3-6 for a graphical representation of the phone parts.
Before You Begin
To ensure that the handset attaches securely to a wall-mounted phone, remove the handset wall hook
from the handset rest, rotate the hook 180 degrees, and reinsert the hook. Turning the hook exposes a lip
on which the handset catches when the phone is vertical. For an illustrated procedure, refer to Installing
the Wall Mount Kit for the Cisco Unified IP Phone at:
http://www.cisco.com/en/US/products/hw/phones/ps379/prod_installation_guides_list.html
Caution Use care not to damage wires or pipes located inside the wall when securing screws to wall studs.
Procedure
Step 1 Push in the footstand adjustment button.
