12 Cisco 300 Series Managed Switches
Features of the Cisco 300 Series Managed
Switch
This section describes the exterior of the managed switches including
ports, LEDs, and connections.
Front Panel Ports
The ports and LEDs are located on the front panel of the switch.
RJ-45 Ethernet Ports—Use these ports to connect network devices, such
as computers, printers, and access points, to the switch.
SFP (if present)—The small form-factor pluggable (SFP) ports are
connection points for modules, so the switch can link to other switches.
These ports are also commonly referred to as miniGigaBit Interface
Converter (miniGBIC) ports. The term SFP will be used in this guide.
• SFP ports are compatible with Cisco modules MGBT1, MGBSX1,
MGBLH1, MGBLX1, MGBBX1, MFELX1, MFEFX1, MFEBX1, and MGBT1, as
well as other brands of modules.
• Some SFP interfaces are shared with one other RJ-45 port, called a
combo port. When the SFP is active, the adjacent RJ-45 port is
disabled. Combo ports are indicated by the presence of a bar on the

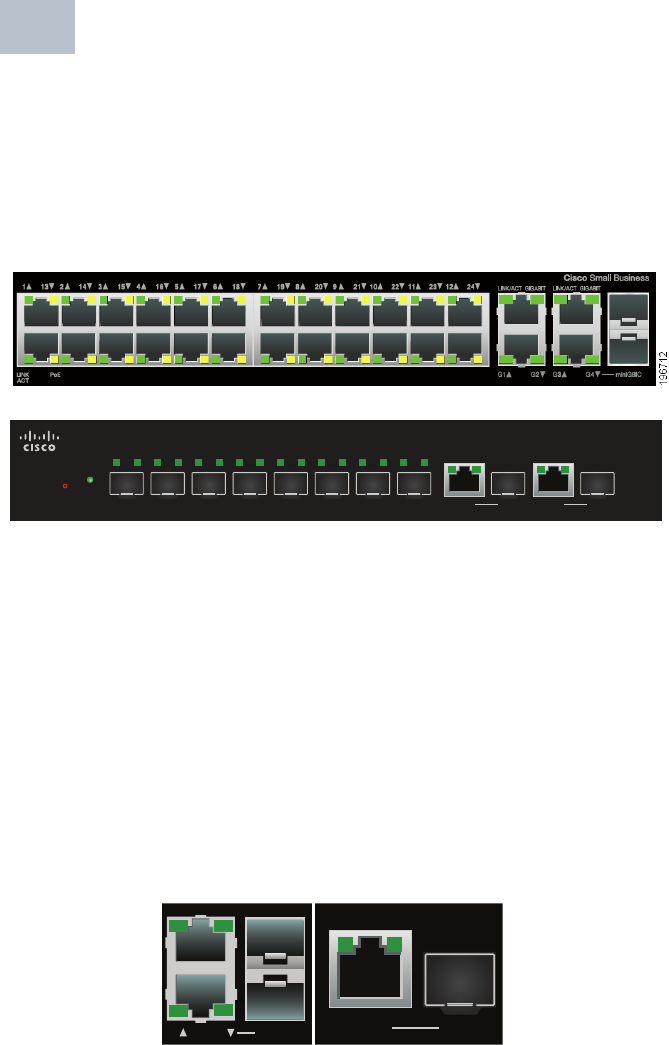

panel that connects them, as shown in the following example:
4
System
LINK
ACT
GIGABIT
123 45678
Reset
SG300-10SFP 10-Port Gigabit Managed SFP Switch
G9 SFP
LINK/ACT GIGABIT
G10 SFP
LINK/ACT GIGABIT
CISCO Small Business
370013
miniGBICG4G3
LINK/ACT GIGABIT
G9 SFP
LINK/ACT GIGABIT
370014
