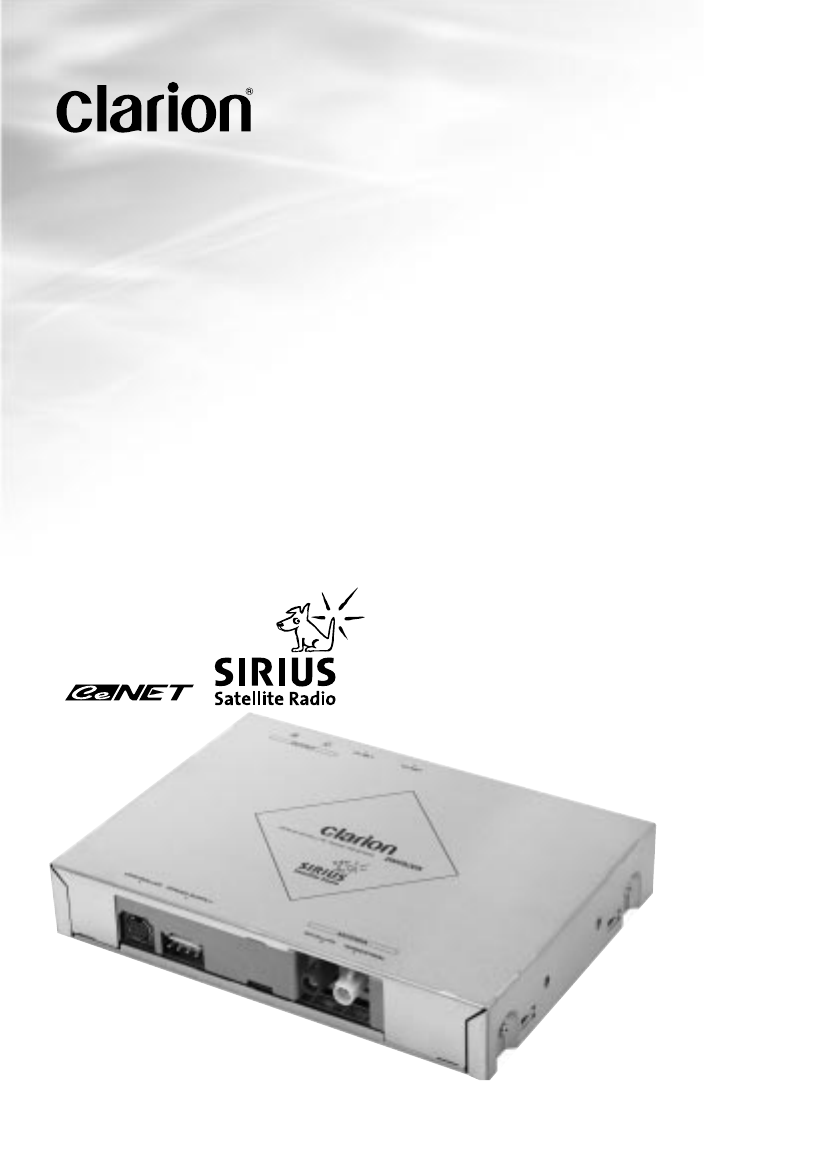

Owner’s manual Mode d’emploi Manual de instrucciones DSH920S SIRIUS SATELLITE RADIO RECEIVER RÉCEPTEUR RADIO SATELLITE SIRIUS SINTONIZADOR SIRIUS DE RECEPCIÓN RADIO VÍA SATÉLITE
English Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual. Contents 1. 2. 3. 4. 5. 6. 7. FEATURES ......................................................................................................................................
1. The first time or when starting after turning off the backup power supply, the receiver does not operate normally until reception. The sound is not heard until 20 or 30 seconds after reception. 2. Text data regarding the names of received channels is written to the receiver 30 to 60 seconds after start of normal operation. If the power is turned off before the text data is written, it may not be correctly displayed next time. Perform a reset operation if no text data is displayed. 3.
English What is Sirius Satellite Radio? Sirius is radio the way it was meant to be: Up to 100 new channels of digital quality programming delivered to listeners coast to coast via satellite. That means 50 channels of completely commercial-free music. Plus up to 50 more channels of news, sports, and entertainment from names like CNBC, Discovery, SCI-FI Channel, A&E, House of Blues, E!, NPR, Speedvision and ESPN. Sirius is live, dynamic entertainment, completely focused on listeners.
English 3. CONTROLS Source unit buttons, example 1 [ROTARY] [FNC] [SC] [BND] [ [RD] ], [ ] [ [DIRECT] [D] ] [SAT] [ADJ] Source unit buttons, example 2 [ROTARY] [ [ ] [DIRECT] [FUNC] [RDM] ], [ ] [ADJ] [DISP] [BAND] [SCN] Notes: • The above illustrations show two source units as an example of the button names used. • Since this manual covers several models, the names of some buttons vary with the model.
Display Items English Source unit display, example 1 Operation status indication : SIRIUS indication Preset channel indication Function mode indication : Manual indication Source unit display, example 2 Operation status indication Preset channel indication : Manual indication : Category indication : SIRIUS indication 6 DSH920S
Selecting Sirius Radio modes Press the [SAT] button or the [FNC] (FUNC) button to select the Sirius mode. The Sirius indication lights entering the mode that was engaged when the unit was turned off last time. Notes: • The [SAT] button selects the Sirius mode directly. Some source unit does not have a [SAT] button. If not, press the [FNC] (FUNC) button.
Sirius operation English The receiver moves to seek channels below or above the current channel. If the channel found when either button is released is available that channel is received. Otherwise, seeking continues until an available channel is found. ● Manual tuning Any channel including channels without broadcasts and channels not covered by the contract can be selected during manual tuning. 1. Press and hold the [BAND] (BND) button for 1 second or longer.
Sirius operation English Notes: • When the name of a channel stored in memory is changed by a broadcasting station, the display may show a channel name that differs from the stored name. • A channel stored in memory may be discontinued at the option of the broadcasting station. Scan function There are two scan modes: a category scan mode and a preset scan mode. During scanning channels are displayed in abbreviated form and the display mode cannot be switched.
English 5. INSTALLATION AND WIRE CONNECTION Before Installation 1. Before starting, be sure to disconnect the battery’s negative “–” terminal to prevent accidents due to short-circuits. 2. Location Consider safety and operability when selecting a place for installation. Avoid the following. • Locations where the unit will hamper driving. • Locations where the unit could injure passengers if the car stops suddenly. • Locations exposed to direct sunlight or hot air from the heater, etc.
Installation Example (Installing the unit under the driver’s seat) English 1. Attach the mounting brackets 1 to the sides of the DSH920S using the screws 2 provided. 2. Select the location on the floor mat. Drill holes in the floor mat to match the positions of the holes in the mounting brackets 1. 3. Insert the canoe clips 3 from the rear of the floor mat and install the DSH920S. ∗ There are three mounting holes on each side of the DSH920S.
How to Make Wirings English 1. CeNET Cable 3. CeNET/STAND ALONE switch Orient the CeNET cable in the direction shown in the figure and insert it until it is locked in position. To remove the CeNET cable, pull it by lightly grasping the slide cap A in your fingers. 2. SIRIUS antenna Connect a SIRIUS antenna (sold separately) to the SIRIUS antenna terminal. 3 4 When removing, extract while keep pressing the portion B.
English 6. SYSTEM EXAMPLES ■ Example 1 6 7 1 3 4 2 5 1 Main unit compatible with CeNET connection 2 CD changer compatible with CeNET connection 3 CeNET cable (provided with the DSH920S) Using this cable, connect the DSH920S to the main unit. 4 CeNET cable (provided with the CD changer) Using this cable, connect the DSH920S to the CD changer. 5 SIRIUS antenna (sold separately) 6 Front speakers 7 Rear speakers Note: • The longest wiring length of the CeNET cable is less than 20m.
■ Example 2 English 4 3 6 5 2 1 1 SIRIUS controller (DSC920S, sold separately) 2 Connection cable (provided with the DSH920S) 3 Audio systems other than those compatible with the CeNET connection Connect the SIRIUS satellite radio output to the external input terminal.
Digital radio section General Receiving frequencies: Satellite : 2322.293/2330.207 MHz Terrestrial : 2326.250 MHz Power supply voltage: 14.4 V DC (10.8 to 15.6 V allowable), negative ground Power consumption: Less than 1 A (with antenna) Antenna current limit ; 0.2 A Weight : 0.55 kg Dimensions : 178 (W) × 30 (H) × 130 (D) mm Audio Signal to noise ratio : 95 dB Distortion : 0.01 % (1kHz) English 7.
