VMA1041 10.

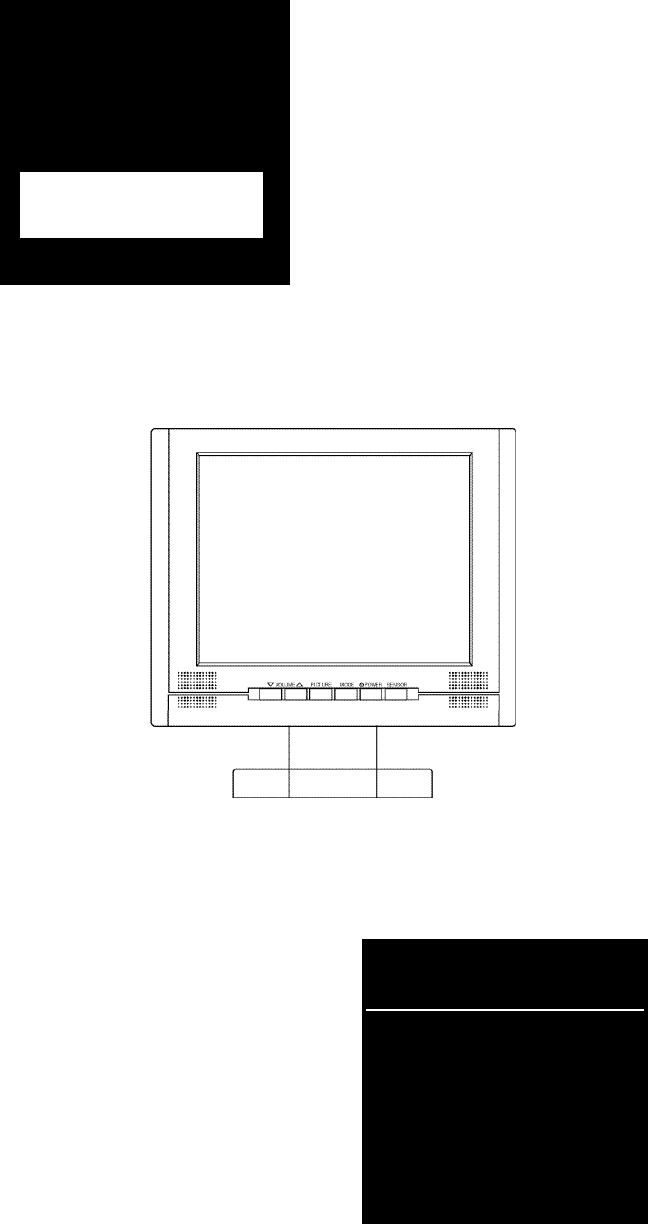

INTRODUCTION The Clarion VMA1041 is a full-featured 10.4" LCD Color Display Monitor. It can be used as: • A stand-alone TV when used with the optional TV Tuner, TTX001 • A monitor integrated into a mobile multimedia system using the auxiliary A/V inputs • A PC monitor with the VGAinput ABOUT THE MANUAL AND WARRANTY To start enjoying your new Clarion VMA1041, please read the instructions listed in this manual. Keep all instructions for future reference.
• For safety, install the set in a position at which the driver cannot see it. • Do not disassemble or modify the set. Doing so may damage it and voids your warranty. • Keep drinks and drops from umbrellas away from the set. Water may damage the internal circuitry. • Do not let the set become hot. If temperature in the car is high or the set has been exposed to direct sunlight and is hot, lower the temperature before using it.
3 7 DC Power Connector 8 Earphone Jack 9 AV2 Input Connectors 0 AV1 Input Connectors q w e r t TV Tuner Ribbon Connector y TTX001 TV Tuner (optional) u Antenna Input Connector VGAInput Connector Channel Preset Button Channel Down Button Channel Up Button
INSTALLATION AND WIRING Before You Begin: 1. This monitor is exclusively for use in cars with a 12V negative ground power supply. 2. Read these instructions carefully. 3. Be sure to disconnect the battery’s negative terminal before starting. This is to prevent short circuits during installation. NOTE: The VMA1041 cannot be used by itself. It should be connected to a device such as a Clarion TTX001 TV Tuner or a source such as a video cassette player. Wiring 1. Be sure to turn the power off before wiring.
AUXILIAR Y VIDEO INPUTS OPERATION The VMA1041 is equipped with two auxiliary A/V Inputs. 1. Plug the AV1 Audio/Video Input cord into the AV1 and/or AV2 input jacks. 2. Connect Audio/Video Connectors to the Auxiliary Source. 3. Press the Input Selection button on the unit or remote control until VIDEO 1 or VIDEO 2 is displayed. 4. The selected auxiliary video source should be seen.
OPTIONAL REMOTE CONTROL OPERATION • To use the remote control, press the Power button to turn on the remote. • Press the TV/VIDEO button to select the source to be controlled by the remote. • The VOL(ume) +/- buttons and the MUTE button control the TV volume. 1 2 3 4 5 6 7 Number Pad Skip Erase/Write 8 Channel Up 9 Mute Volume Down 0 Channel Down q Picture Select w Auto Memory TV/Video e TV/CATV Volume Up Power OPTIONAL TTX001 TV TUNER INSTALLATION Slide the TTX001 onto the back of the VMA1041.
TV TUNING If using the TTX001 with the VMA1041, follow these directions to control the TV functions: 1. Be sure TV is chosen as the source to be controlled. 2. Press the Auto Memory button on the remote control to scan available channels. 3. For station adjustments, press the Channel Up and Down buttons on the remote control. CARE AND MAINTENANCE Cleaning the cabinet: • Use a soft, dry cloth and gently wipe off the dirt.
Problem: Picture does not appear. Solution: • The TV Tuner is not set to TV mode (when using the TTX001) – Set the function to TV mode. • The TV Tuner is set to VTR mode (when using the TTX001) – In the VTR mode, no picture appears if no video signal is being input to the VIDEO IN terminal of the tuner. Problem: Picture has shadow or shadows. Solution: • Signal condition is poor – This may be due to signals reflected off mountains or buildings. Check again in a different place or direction.
NOTES 9
NOTES 10
661 W. Redondo Beach Blvd. Gardena, CA 90247 1-800-GO-CLARION www.clarion-usa.com VMA1041-10 Rev.
