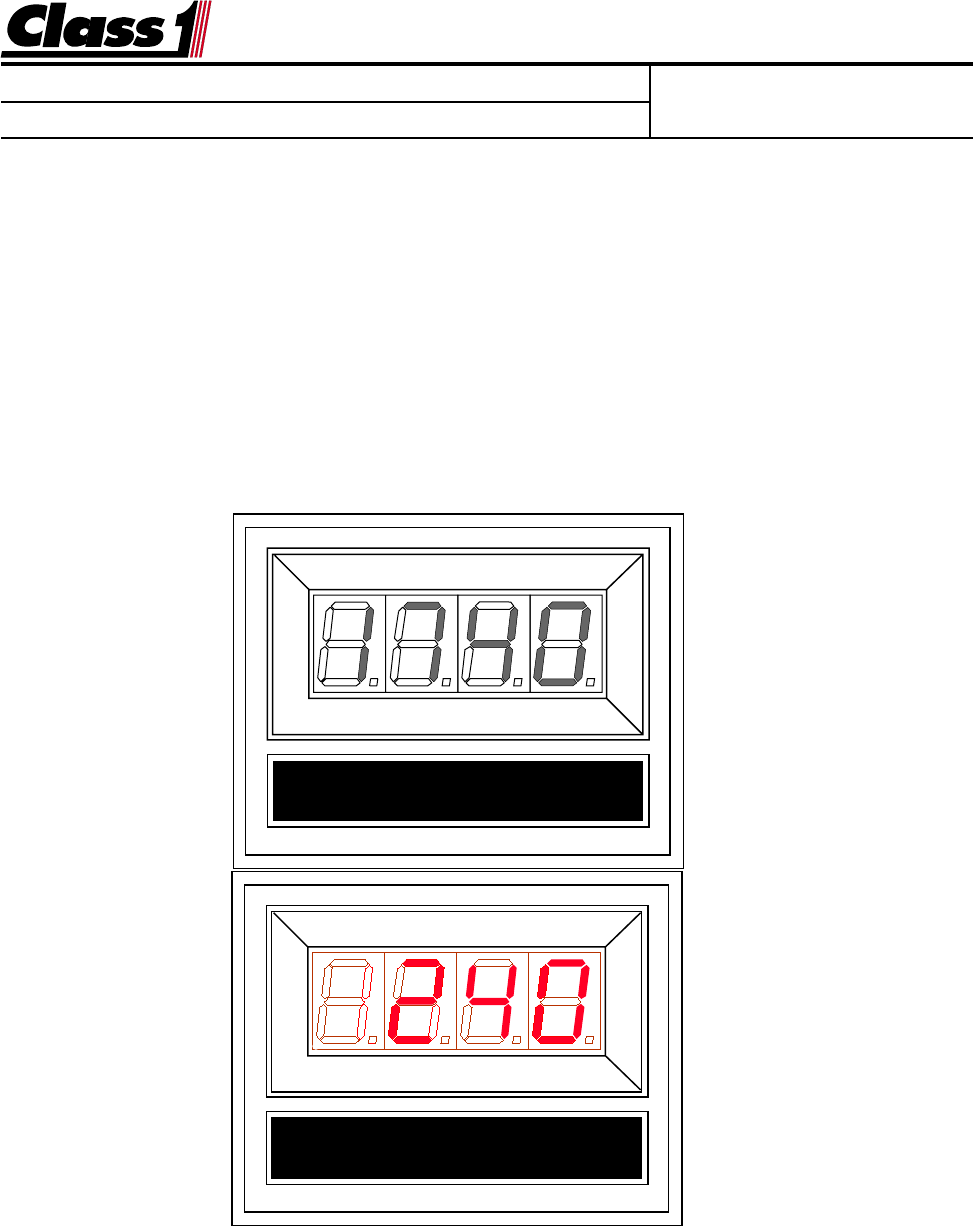

Digital Flowmeter Information
The flowmeter Super System is designed using the digital flowmeter and the digital pres-
sure gauge. Each piece uses the standard digital display cutout. The only additional
consideration from the standard flowmeter is for mounting the pressure transducer. This
should generally be mounted after the valve and is a 1/4 NPT fitting. Use only the 1-1/4”
hex to tighten the transducer, not the body of the sensor. Follow the calibration proce-
dure for pressure and flow as appropriate after installation.
FLOW METER
PUMP DISCHARGE
