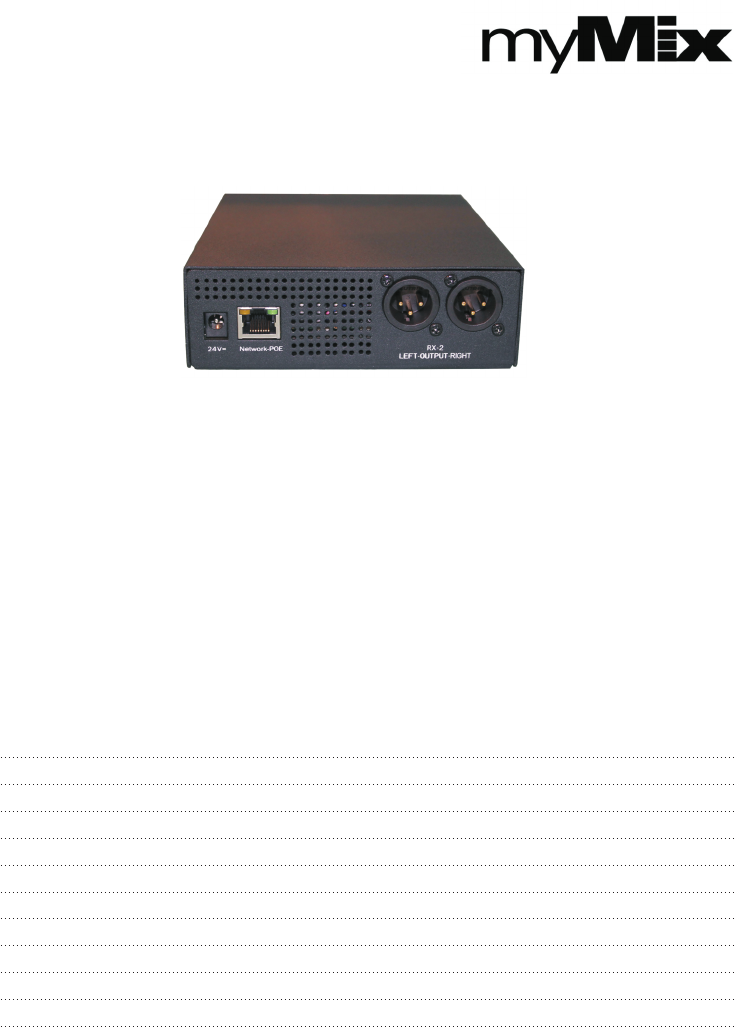

RX-2 OWNER’S MANUAL INTRODUCTION The RX-2 is a networkable audio mixer for the myMix system. It is designed for remote configuration using the myMix Control interface. Like a myMix can it select audio channels from the network and create a stereo mix. The optional RM-RX rackmount kit allows for installations in 19" racks.
SAFETY INSTRUCTIONS IMPORTANT! Read the following before operating myMix 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. Read all safety and operating instruction before using myMix. Keep these instructions in a safe place for future reference. Heed all warnings and follow all instructions. Do not use the myMix unit near water, e.g. a bathtub, or swimming pool. Clean only with dry cloth, and keep moisture away from the unit. Do not block any ventilation openings.
WARNINGS • • • • • • • • • • Do not locate myMix in a place subject to excessive heat or in direct sunlight. This could be a fire hazard. Do not place myMix in a place subject to excessive humidity or dust. This could be a fire and electrical shock hazard. Connect the supplied AC power supply only to an AC outlet of the type stated in this Owner’s Manual or as marked on the main unit. Failure to do so is a fire and electrical shock hazard. Do not place heavy objects on the power cord.
Declaration of Conformity (for USA) Model Number: Type of Equipment: Responsible Party: Address: Telephone Number : myMix-Rx2 Professional Audio Recording and Mixing Device MOVEK, LLC 6517 Navaho Trail, Edina, Minnesota, 55439, U.S.A. 1 (952) 657-7889 This device complies with Part 15 of the FCC Rules.
LIMITED WARRANTY This MOVEK warranty applies only to products you purchased for your own use. This MOVEK limited warranty is available in others languages at www.mymixaudio.com. MOVEK warrants that each myMix product that you purchase is free from defects in materials and workmanship under normal use during the warranty period. The warranty period starts on the original date of purchased specified on your sales receipt or invoice unless MOVEK informs you otherwise in writing.
HARDWARE Mix Output Right (balanced) Power Supply (24V) Mix Output Left (balanced) Network & POE The myMix-Rx2 can be powered with the external 24V power supply or using POE (Power-Over-Erthernet) from the switch (15W). INSTALLATION ... Headphone RX-2 to feed a wireless IEM receiver Fast Ethernet Switch CAT 5 myMix CONTROL Interface WiFi RX-2 to create a submix Connect the RX-2 to a myMix network using a CAT5 cable.
OPERATION There are a various applications for RX-2 in a myMix system, typical are: - to transport a mix that is created on stage to a remote location (e.g.
SPECIFICATIONS Outputs 75 Ohms, balanced Impedance +21dBul Max Output Level XLR (pin 2 hot) Connectors Signal to Noise Ratio > 104 dB Crosstalk (L-R) < -80 dB Network 100MBps Fast Ethernet Network Type CAT5 with RJ45 Network Cabling DA-Conversion 24-bit Sampling Rate 48 kHz 1,4 kg (3 lbs) Weight 157 x 132 x 43 mm Dimensions (6.2 x 5.2 x 1,7 inches) 24V power supply (0.5A) Included Accessory DIMENSIONS 43 132 159 483 RM-RX: 19", 1U Rack mount for up to 3 RX-2 www.mymixaudio.com E & O.
