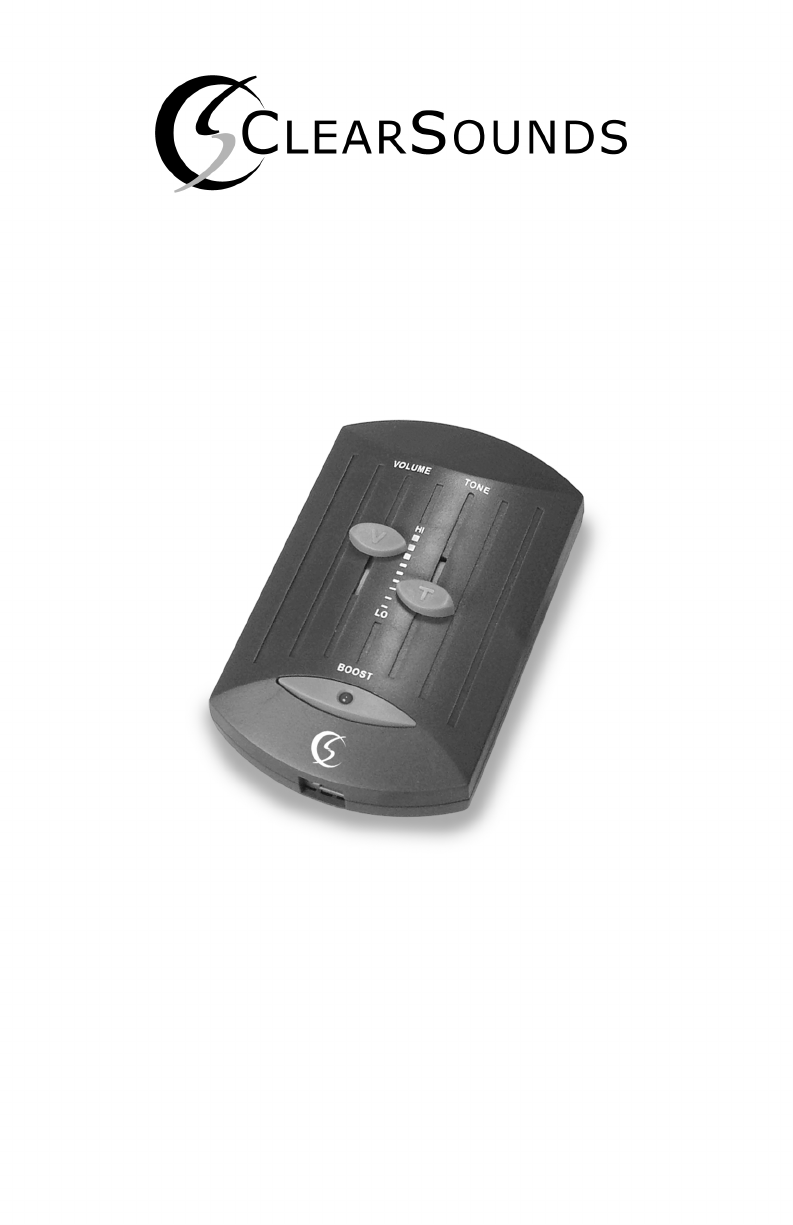

COMMUNICATIONS™ Portable Telephone Amplifier User’s Guide CS-IL40manual.
Important Safety Instructions When using your portable phone amplifier, always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons, or property, including the following: 1.Read and understand all instructions, warnings and product markings. 2.Be aware there is a slight possibility of electrical shock from lightening. 3. Do not use this product near or in water or when you are wet.
Power Requirements Your IL30/IL40 is powered by a 9V battery (not included). Install a 9V battery in the battery compartment prior to operation. NOTE: Insert the battery with the (+) side going between the guard posts in the battery compartment. The (-) side (larger of the two connectors on the battery) must be on the top. Installing the battery imFigure 1 properly will cause damage to the unit and will void all warranties. Please make specific note to the installation of the battery.
Operation Volume Control You can adjust the volume level by using the Volume Control Slide located on the top of the unit (left control). Pushing the slide up increases the volume. Tone Control You can adjust the tone by using the Tone Control Switch located on the top of the unit (right control). The Tone Control shapes the sound by increasing the bass or the treble. The Tone Control Switch has five (5) positions. Adjust the Tone Control until you find a position that provides the clearest sound.
Troubleshooting If after installing your IL40/IL30 Amplifier, you do not have a dial tone or the person you called cannot hear you, take the following steps: 1. Check that all connections are plugged in properly 2. Make sure a new battery is installed. 3. Either disconnect the unit or use another phone and check that your phone service is working properly. 4. Change the compatibility setting dial located on the bottom of the unit.
Regulatory Compliance Part 68 of FCC Rules Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
fect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If trouble is experienced with this telephone equipment, for repair or warranty information, please contact ClearSounds Communication at 1-800-965-9043. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.
Limited Warranty ClearSounds Communications warrants the IL30/IL40 Portable Telephone Amplifier against any defect in materials or workmanship for the period of one year from the date of purchase. Within a period of one year from purchase date, ClearSounds Communications will repair or replace (our discretion) your IL30/ IL40 Portable Telephone Amplifier at no cost. If we elect to replace your amplifier, we may replace it with a new or reconditioned product of the same or similar design.
